LINNPOWER VIPER - Electric Shortboard
- Durable Deck Construction: Made
with a bamboo and hard maple core, wrapped in fiberglass and epoxy for strength
and longevity.
- Compact Design: With a
31.5inch long (80cm) and 10inch (25cm) wide, the LP Mini provides a small yet
stable form factor for safe cruising and easy-carry.
- Enhanced Maneuverability:
The slightly concave deck, wheel flares, and the kicktail, gives the
rider incredible control. The kick tail will also allow for sharp turns, easier
board pick-up, and even tricks.
- Powerful Components:
Equipped with dual 5250 motors, totalling 1600W of power, paired with a 12S
battery system, ensuring excellent performance and range.
- Advanced Control System: Featuring the Hobbywing 9028ESC and
Linnpower custom CNC aluminum Hobbywing remote for precise control and excellent
heat dissipation.
- Tail Light for Safety: Integrated with the board’s design to
ensure visibility during night rides.
ETD
Shipping
VIPER | 216WH | 432WH |
WHEELS | 85*59mm, 78a | MAD Wheelz V2 105*70, 76a |
RANGE | Up to 25km | 15.5 miles | Up to 45km | 28 miles |
TOP SPEED | 50kmh | 31mph | |
BATTERY | 12S1P Samsung 50s cell, 216Wh, LINNPOWER Flexvolt Pack Design. Featuring TOLL-packaged MOSFETs offering higher power and lower heat generation | 12S2P EVE 50E battery pack provides 432Wh with secure, high-quality construction using silicone bonding and nickel welding |
BATTERY ENCLOSURE | Made from high-strength polymer, paired with LINNPOWER's custom-designed reverse-mounted nut structure and sealing rings to enhance waterproofing | |
MOTOR | Hobbywing 5250*2, 1600W, 190kv | |
ESC | Hobbywing 9028 ESC with App & Smart on/off | |
REMOTE | LP*HBY Remote: CNC Aluminum Alloy Frame, and CNC Scroll Wheel, Double Bearing Fixation for Precise Control | |
Board Size | 797*288*165mm | 31.4*11.34*6.48inches | |
DECK MATERIAL | Bamboo & Hard Maple wrapped in fiberglass and epoxy for exceptional strength and durability | |
DECK SIZE | 80*25cm | 31.5 *10 inches | |
DECK TYPE | A slightly concave deck with flared wheel wells with extended kicktail | |
TRUCK | Forged/CNCed 6061 T6 aluminum RKP 7.9inches, 50° | |
GEAR RATIO | 13 : 36, 2.8 | 13:40, 3.1 |
WHEEL BASE | 54.7cm | 21.5 inches | |
WEIGHT | 7.9kg | 17.4lbs | 9.9kg | 21.9lbs |
MAX LOAD | 150kg | 330lbs | |
CHARGE | 1h / 4.5A Fast Charger | 2h / 4.5A Fast Charger |
HILLS | 32% | |
BREAKING | Regenerative Braking, adjustable 10-100% | |
BEARING | 608 bearings for the wheels, 6903 bearings for the pulley | |
BUSHING | 95a | Compatible with Riptide bushings (25×16mm) and washers | |
Light Kit | Integrated Tail Light, controlled by remote. | |
* Tested by a 154lbs/70kg rider at a constant speed of around 25 km/h | 15 mph, on flat terrain with gentle breeze at a temperature of 30℃/ 86°F. |

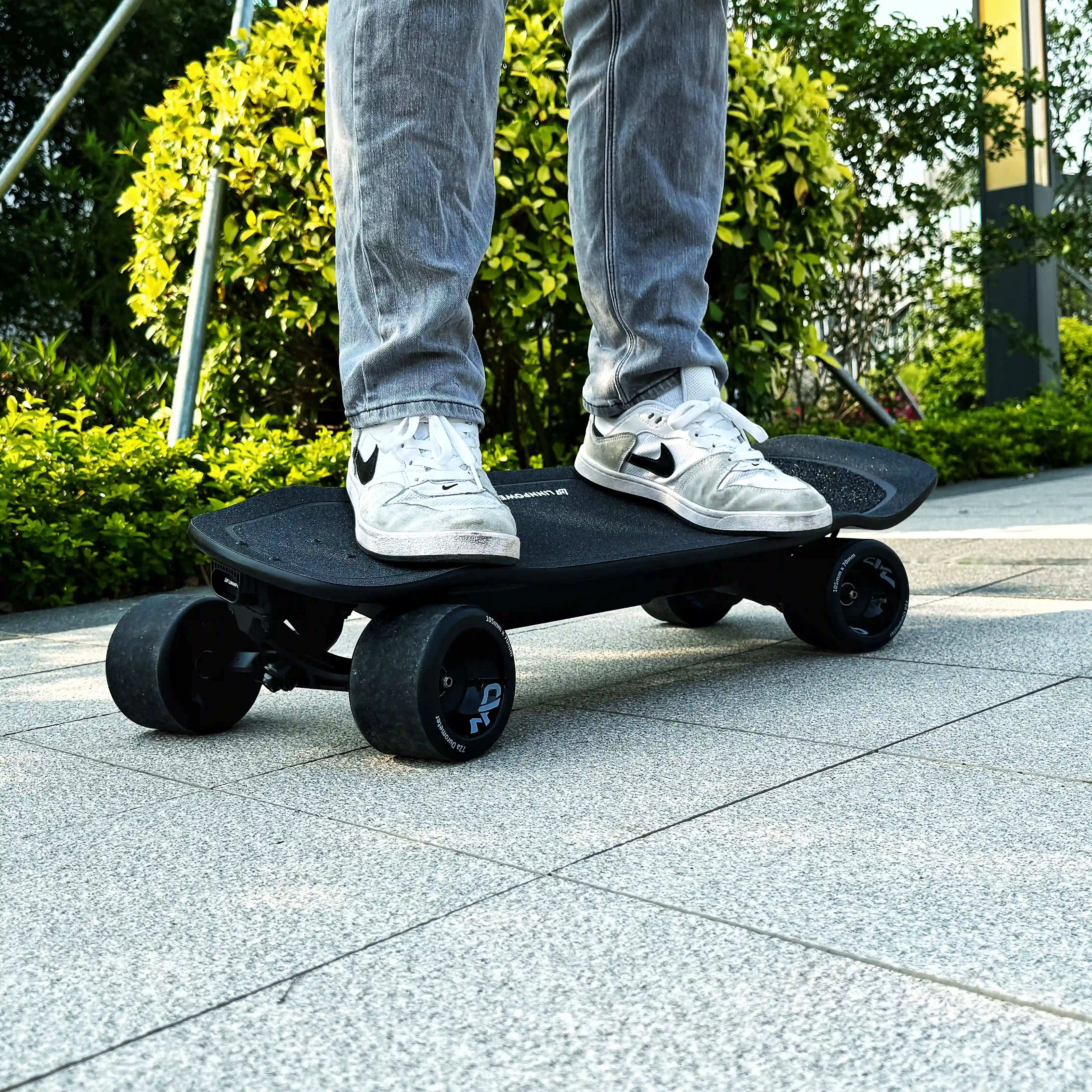

Meet the VIPER – Compact Power, Uncompromised Performance
Introducing the LINNPOWER VIPER, a lightweight and high-performance mini electric skateboard built for the most efficient last-mile commute. Weighing (216Wh version) just 7.9kg (17.4lbs) and measuring 31.5 inches (80cm), the VIPER delivers a smooth, stable, and durable ride—ideal for both beginners and experienced riders.

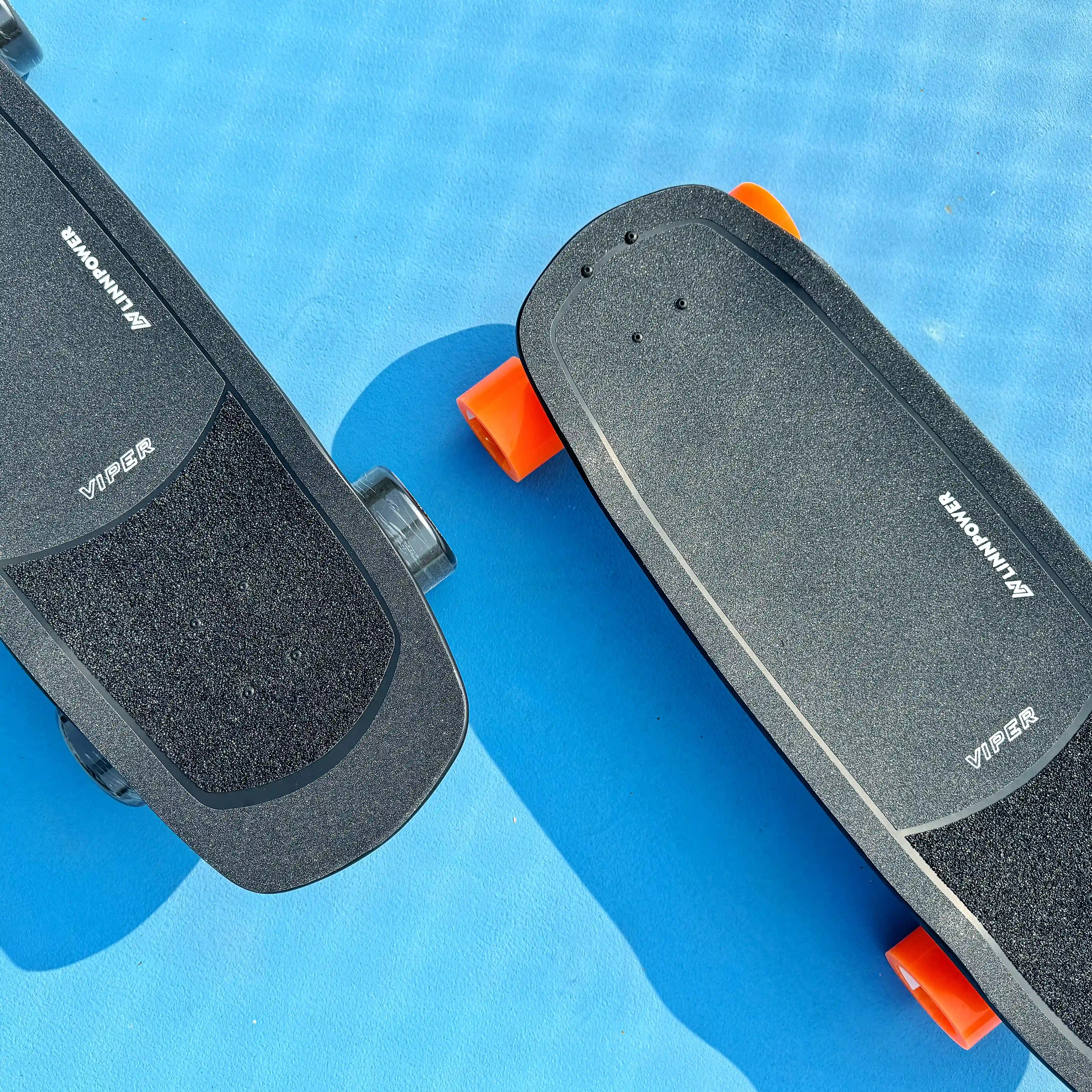

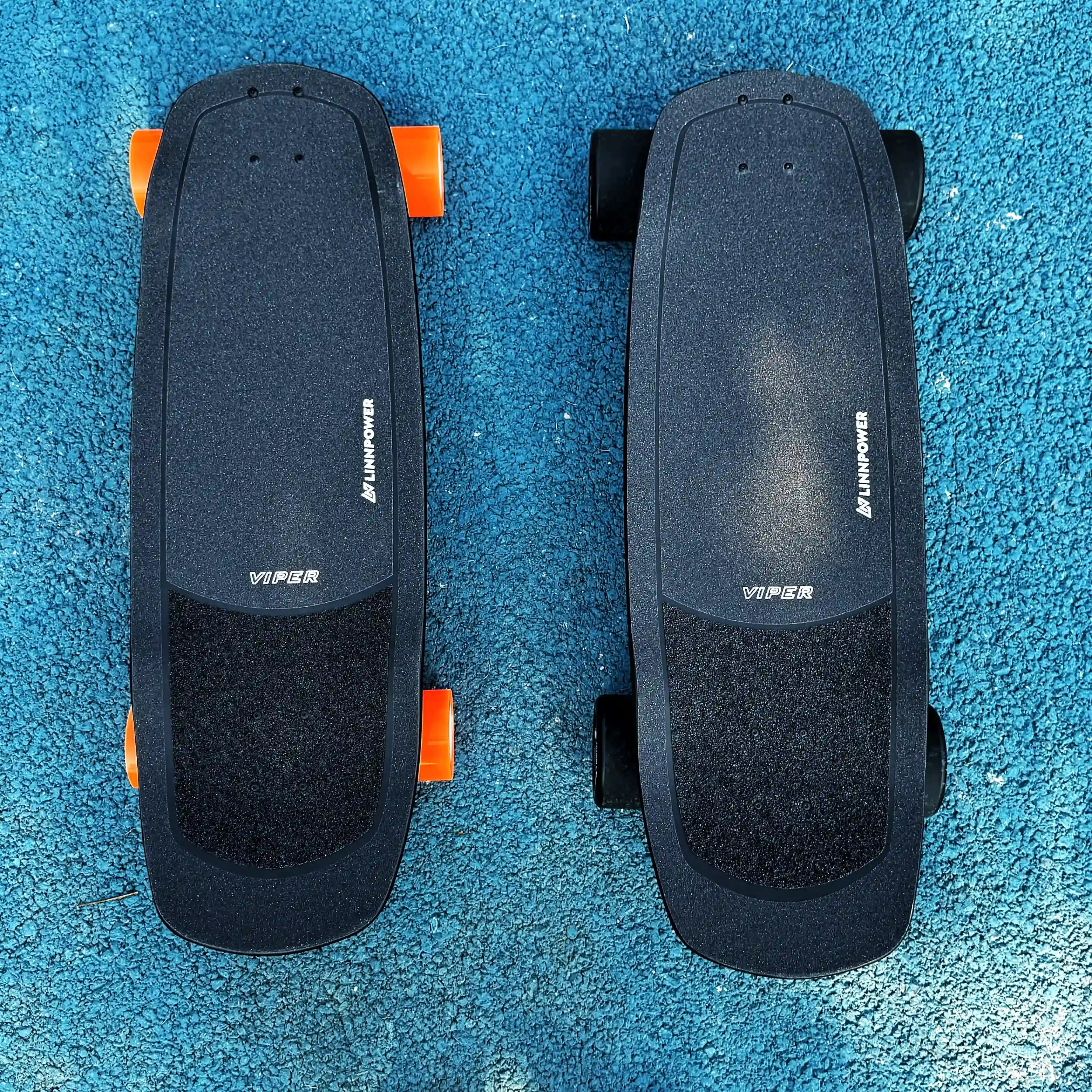

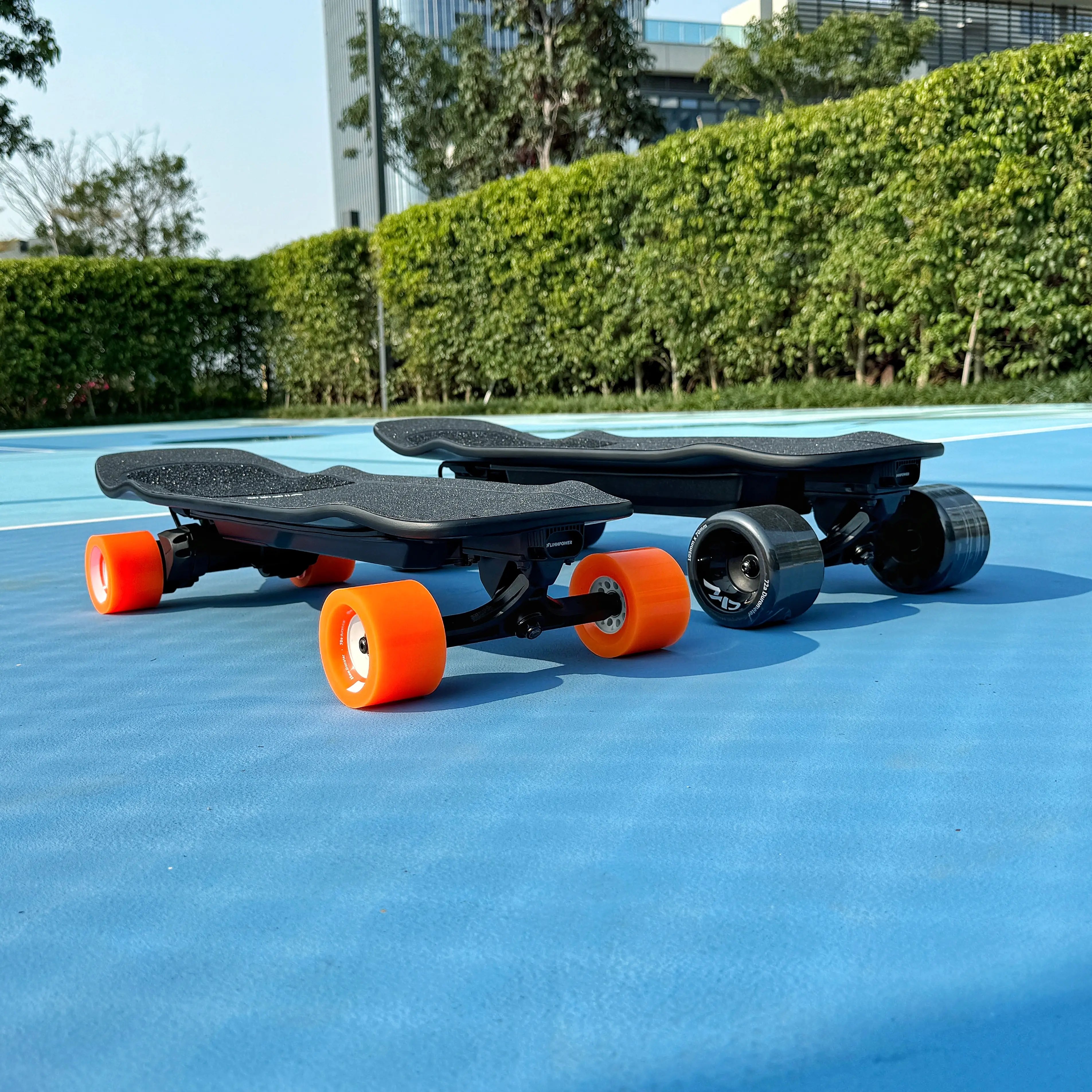

Now available in two battery configurations:
216Wh – Featuring our custom-designed FlexVolt structure, this high-safety, high-cost battery pack optimizes both energy efficiency and performance. The stock wheel is 85*59mm, 78a boostedboards wheel.
432Wh – Built using an industry-standard pack structure, but with higher-quality materials and strict manufacturing standards, this option doubles the range while maintaining exceptional durability. The stock wheel is 105*70mm, 72a MAD Wheelz V2.
Whether you're commuting or carving, the VIPER delivers sharp, responsive control that rivals larger, more expensive boards. At LINNPOWER, we always set our standards higher than the industry norm—from material selection to craftsmanship and vendor partnerships, we focus on reliability, precision, and innovation.
The VIPER is the daily commuter board of the LINNPOWER team, tested rigorously alongside the EVO MK-1 to ensure extreme performance and durability. We believe our team should always be the first to push our products to the limit—because while we can’t change how others operate, we can always hold our own boards to a higher standard.
Ride with confidence. Ride VIPER.
VIPER Electric Shortboard Package Includes:
VIPER Complete Board;
LINNPOWER x Hobbywing Remote;
T Tool;
H3 Hex Key;
H2.5 Hex Key;
50.4V 4.5A Charger;
Remote Manual;
Quick Start Guide;

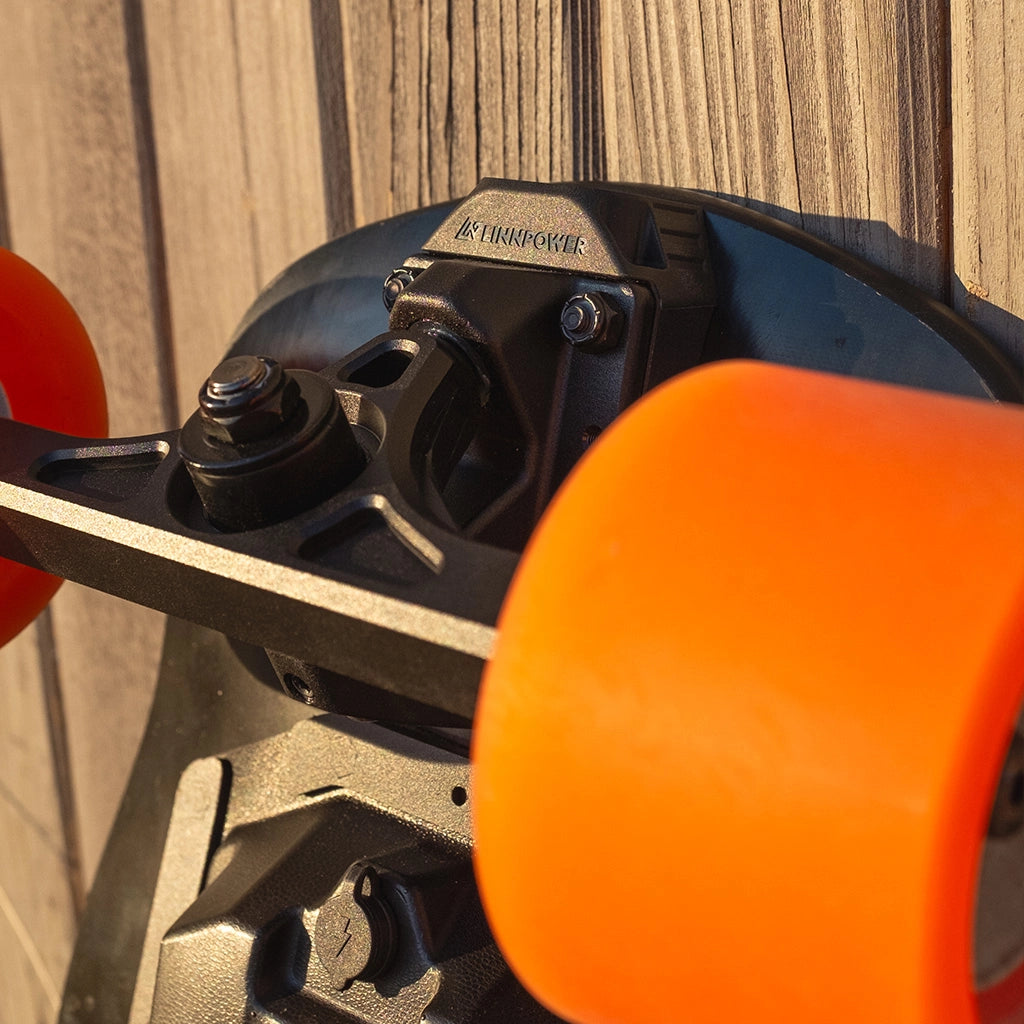

High Quality 7.9in 50° RKP - No Casting
The VIPER Truck stands out in the market under $600 with its authentic forged baseplate. Why do so many hangers and baseplates break in the industry? Forged components are more expensive than cast alternatives but offer greater strength and excellent resistance to bending. Here are the known brands currently using genuine forged trucks: Evolve Diablo series with Super Carve 2 Trucks; Boosted's third-generation models: Boosted Mini S, Boosted Mini X, Boosted V3, Boosted Stealth; Backfire Zealot X.

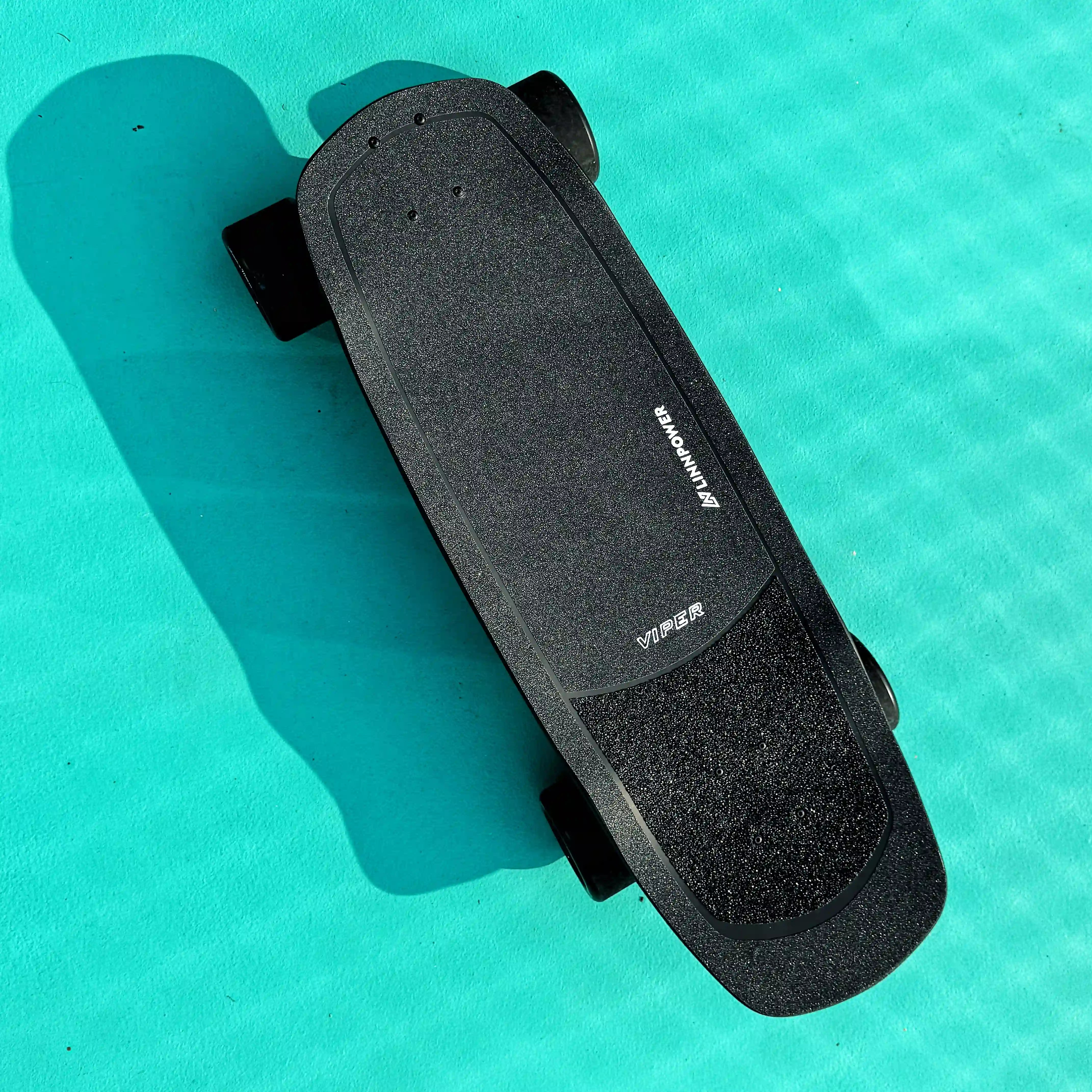

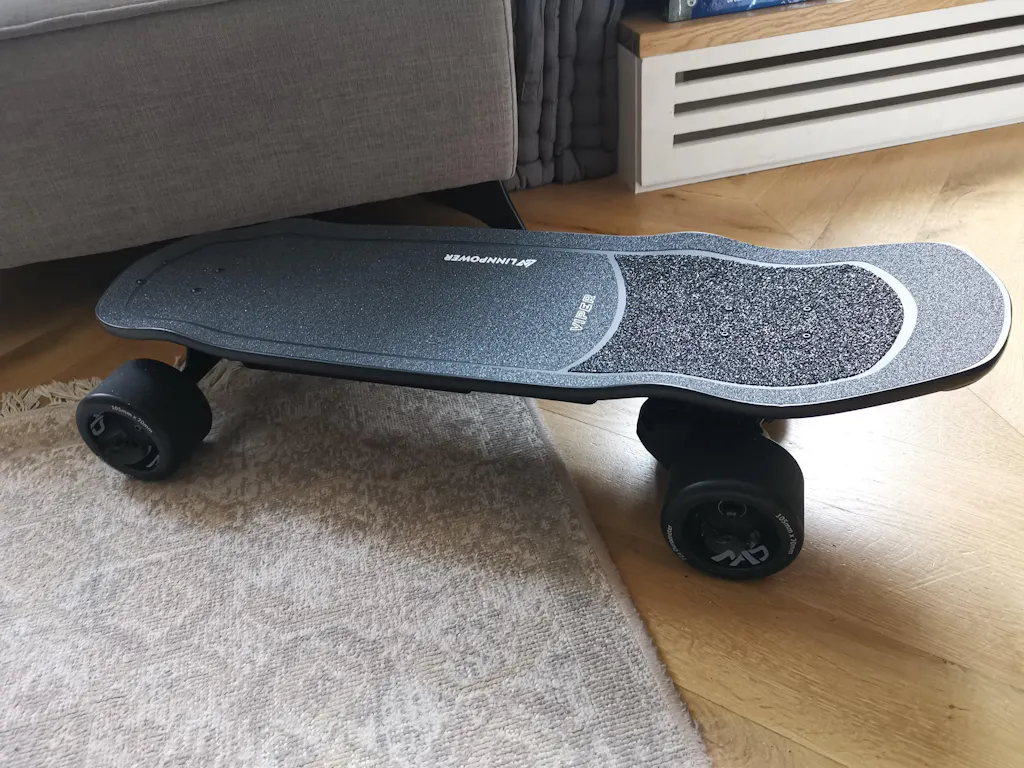

Re-Designed Deck for Enhanced Control
The LINNPOWER VIPER deck compares to standard Boosted boards with its extended kicktail for stability and control, plus a slightly concave design with flared wheel wells to prevent wheel bite, providing better control and a lower center of gravity for stable high-speed rides and agile low-speed maneuvers. While its cost is higher than some of other brands, it delivers better performance and durability.

Charged Under 1 Hour

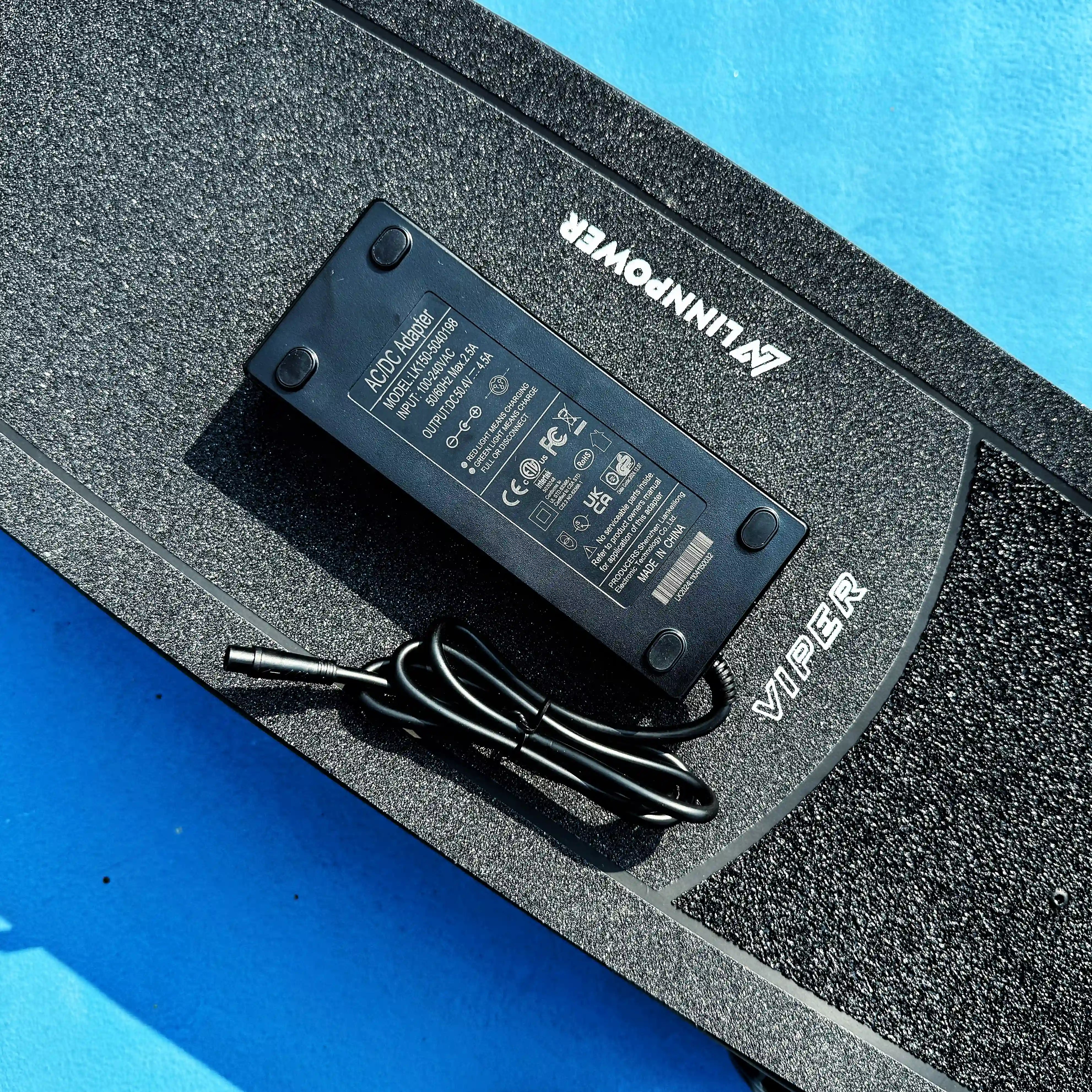

The VIPER 216WH is powered by a 12S1P high quality Samsung 50s cell battery pack, delivering 216Wh and up to 25km of range. With a 4.5A/226W fast charger, you'll be back on the road in less than an hour! Charges from 0 to 80% in 30 minutes.
*The VIPER 432WH is powered by 12S2P EVE 50E cell. With a 4.5A/226W fast charger, you'll be back on the road in less than two hours!

216WH Battery Pack
LINNPOWER FLEXVOLT Pack – Engineered for Excellence
Premium Cells: 12S1P Samsung 50S (30A continuous discharge); Patented FLEXVOLT Design: ✓ Single-piece PCB architecture (no loose wires); ✓ Stress-relief nickel strips + reinforced pure nickel welding; ✓ Flexible structure absorbs shocks/vibrations; The Most Structurally Safe Battery Pack: ✓ Fire-resistant casing & fully enclosed cell holders; ✓ Industry-leading Toll-packaged MOSFET BMS (compact, high-efficiency)
Ideal for riders who prioritize portability & power.

432WH Battery Pack
Similar to standard industry designs but with a higher level of quality and attention to detail.
Extended Range: Built for riders needing long-distance performance; Performance: 30A continuous discharge, offering solid power for long-range use (2S config); Secure Construction: Individually secured cells in dedicated holders; 704 silicone bonding + 0.2mm pure nickel welding; Rigorous Standards: Exceeds industry quality benchmarks for reliability;
Balanced Value: The EVE 50E cell has a higher cycle life for long-term use. Provide a good balance of price and performance for riders seeking long-range capability at a more affordable cost.

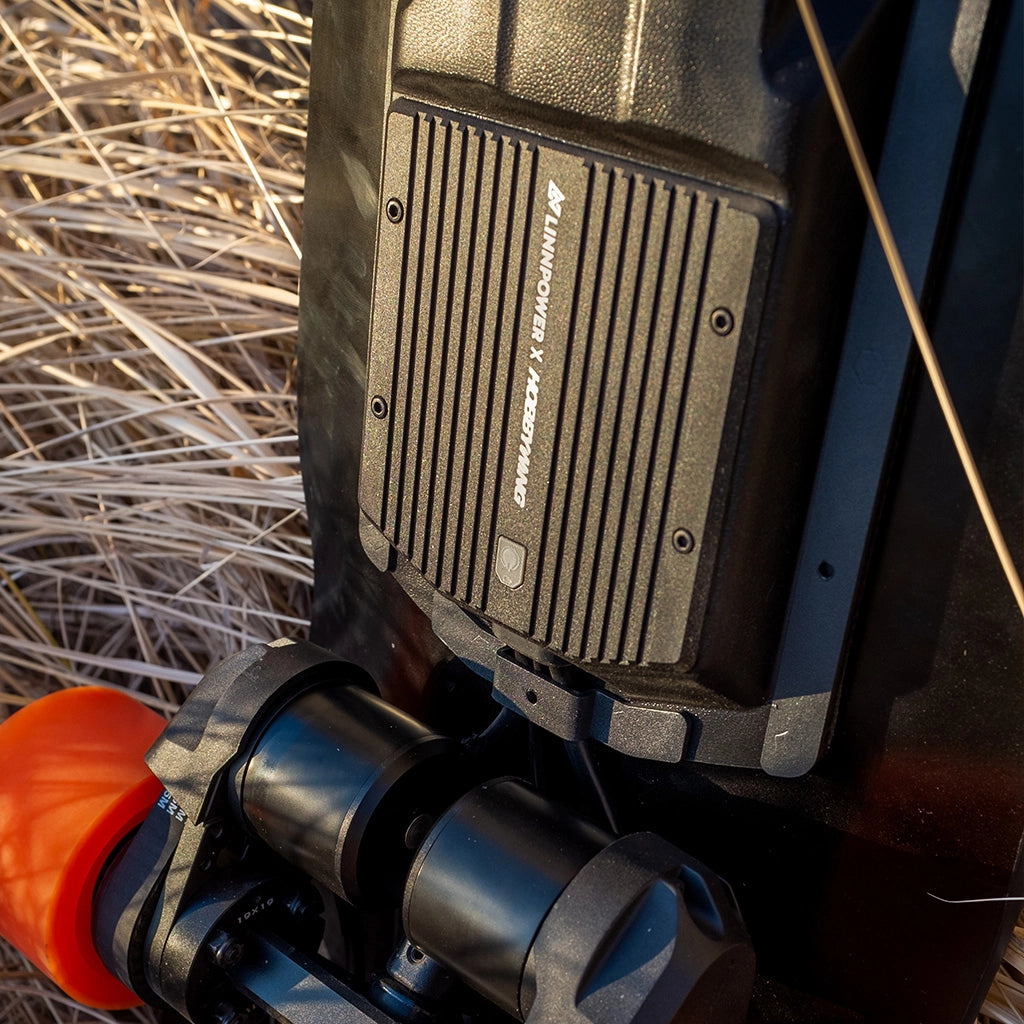

Hobbywing 9028 ESC
Hobbywing 9028 FOC ESC with App. Equipped with waterproof connectors and a CNC-machined casing for improved heat dissipation, unlike casting, provides better heat dissipation and a higher-quality appearance. Considering the overall electrical configuration and reliability of the VIPER shortboard, the Hobbywing 9028 is the best choice. Its hardware is superior to other controllers in the same class, offering more solid and durable materials.

LINNPOWER Custom Pivot Cup
The standard pivot cups available on the market do not meet our precision requirements and fail to perfectly align with the base and the pivot point. Therefore, we have custom-made a pivot cup using better materials.
It offers better durability, with at least a 30% increase in lifespan compared to standard pivot cups. Additionally, the top vent design helps eliminate any noise, ensuring smoother performance.

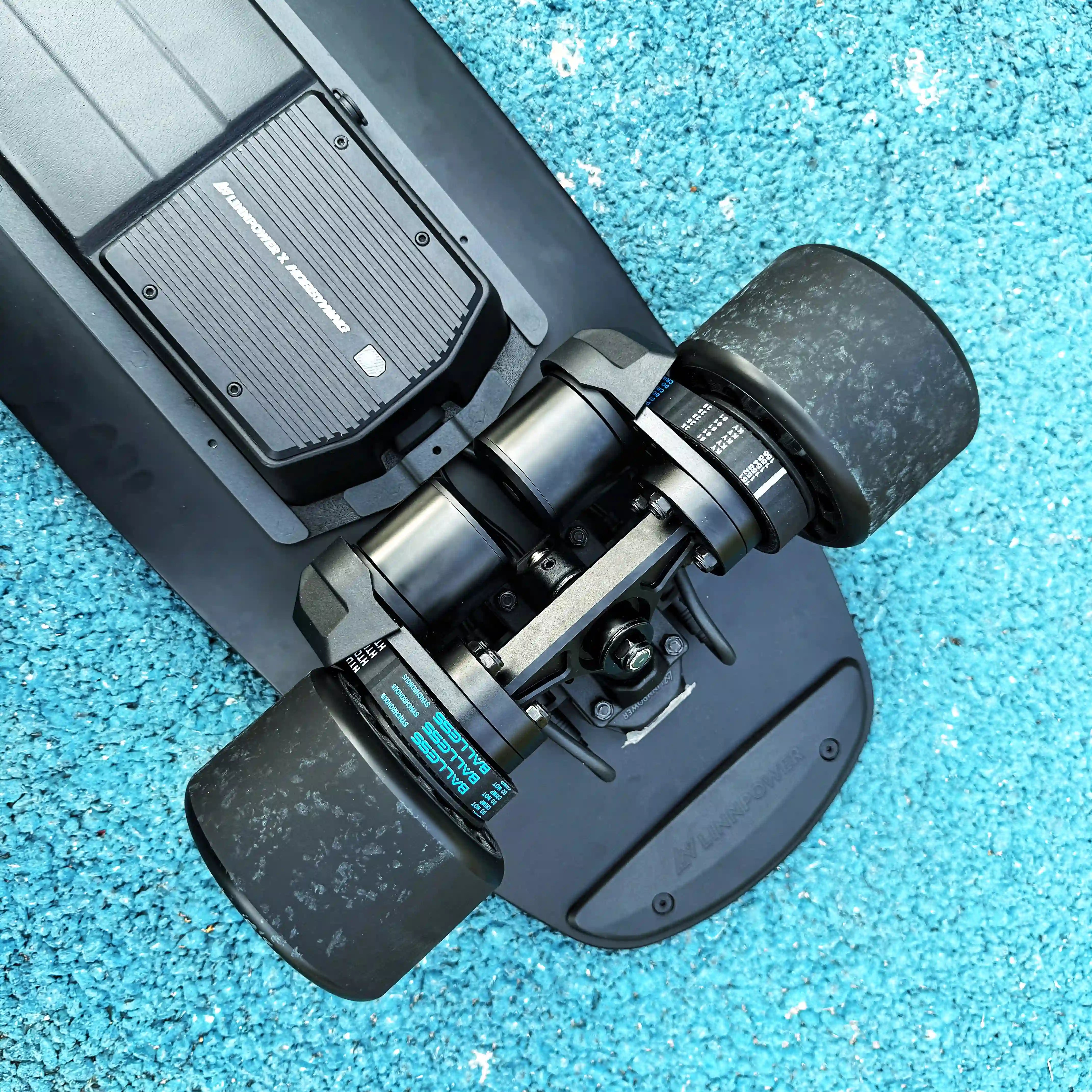

Hobbywing 5250 Motor*2
Hobbywing motors stand out in their class with smaller size, higher performance, and greater reliability at the same power level. The real board power output is 800W per motor (1600W total); peak power of per motor: 2663W. For boards using a Hobbywing ESC, if the combined power is advertised as over 3500W, it means the specifications are overstated.

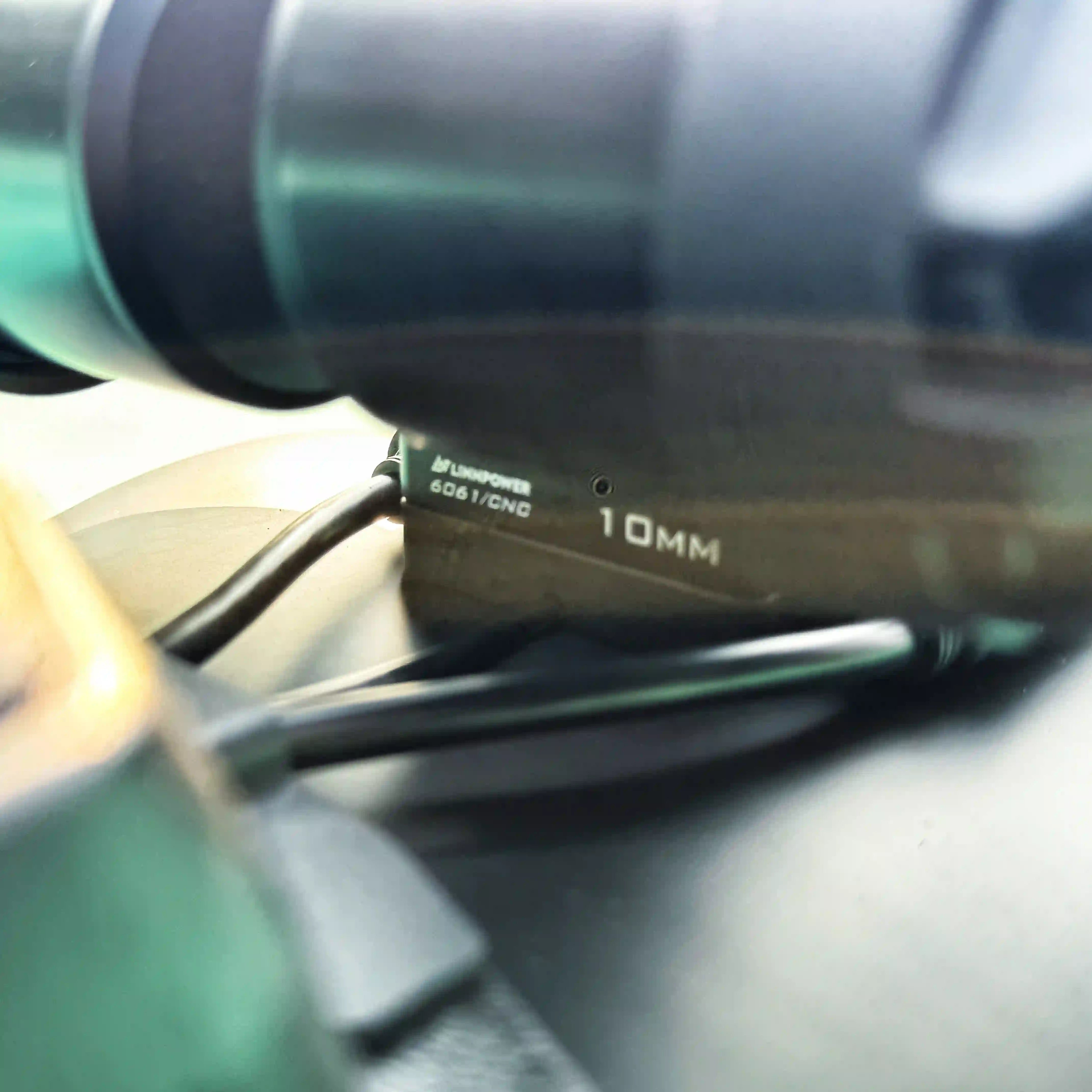

Heatsink - No Casting
For ESC housing and heatsink, while casting can offer a lower cost. But reliability is our top priority. CNC machining from 6061-T6 aluminum alloy with an anodized finish, unlike casting, provides better heat dissipation and a higher-quality appearance.
OTHER FEATURES

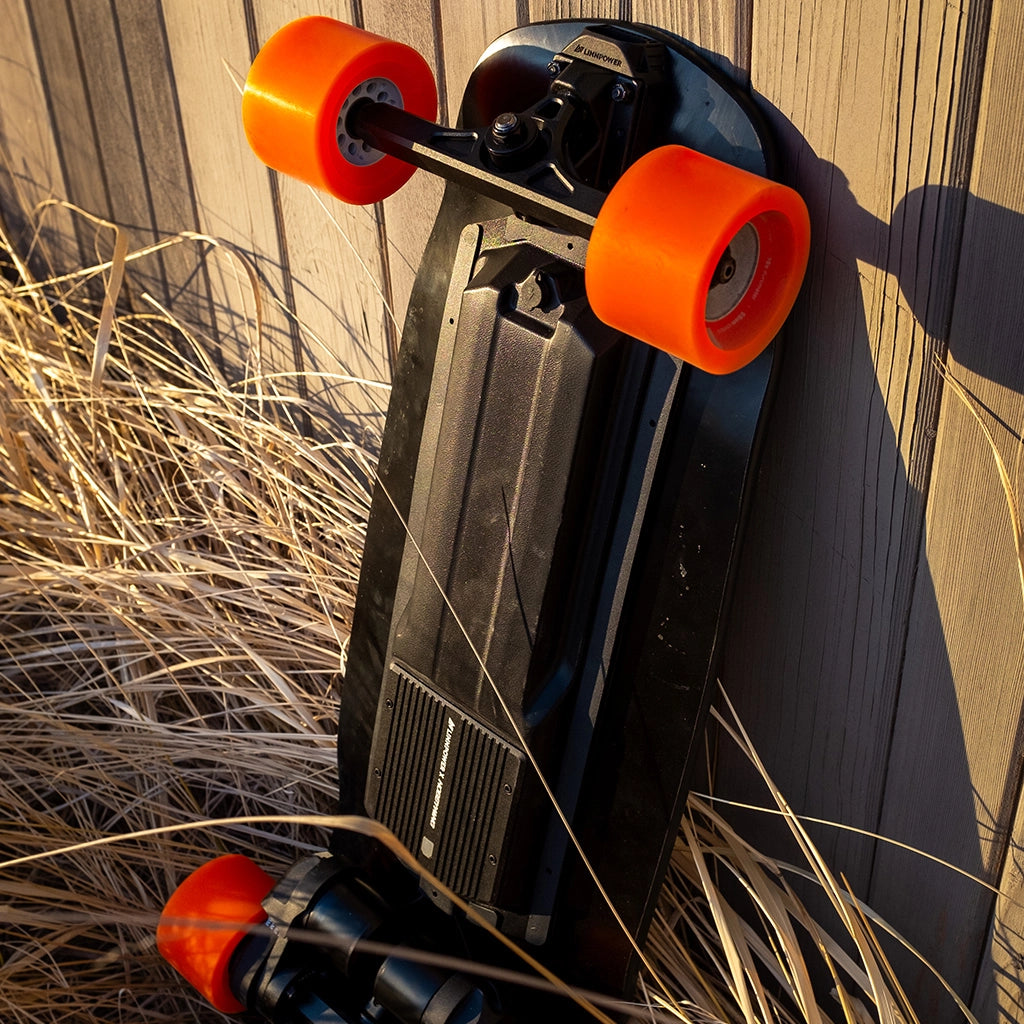

Battery Enclosure
Made from high-strength polymer, paired with LINNPOWER's custom-designed reverse-mounted nut structure and sealing rings to enhance waterproofing.

Intergrated Tail Light
The Viper mini board comes standard with a tail light
integrated into the truck riser pad, protecting it from external damage. It
features high brightness for enhanced safety during nighttime riding.

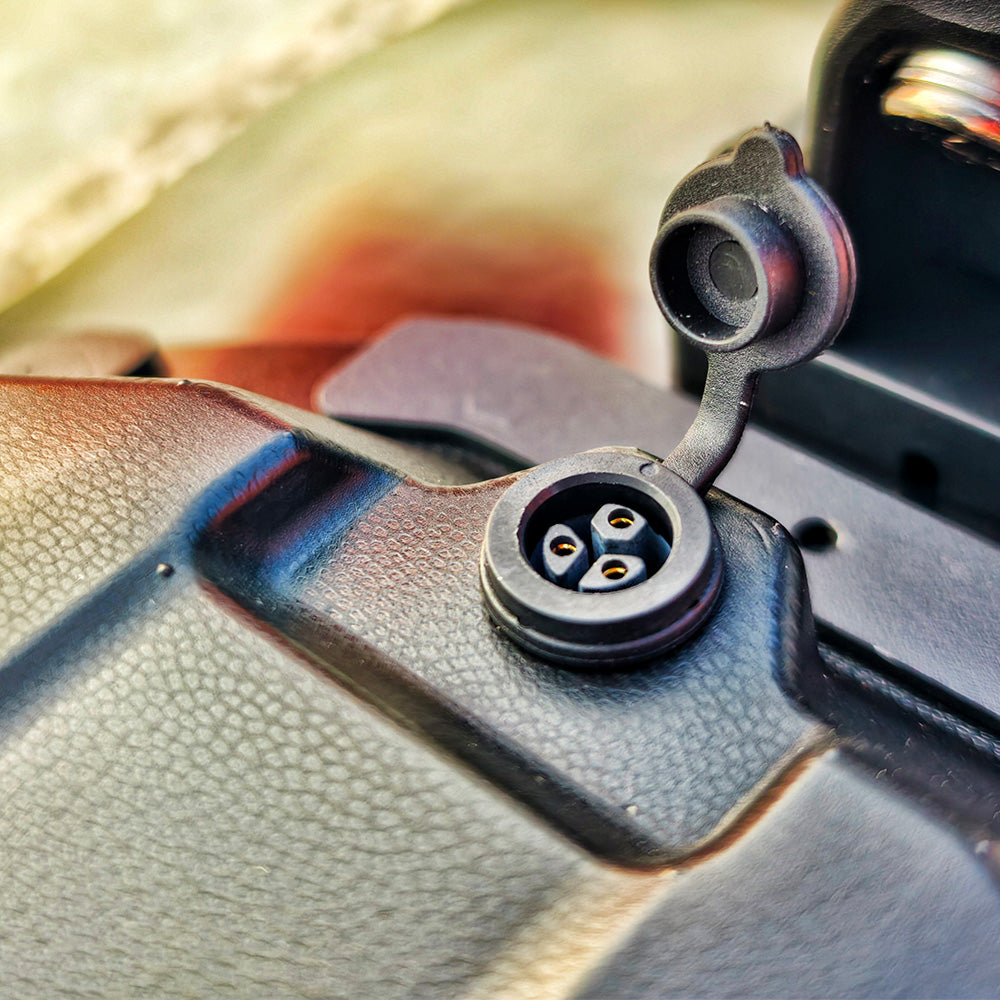

Motor Wire
The motor wires use an external integrated waterproof connector, making cleaning and maintenance more convenient, without any internal wiring.

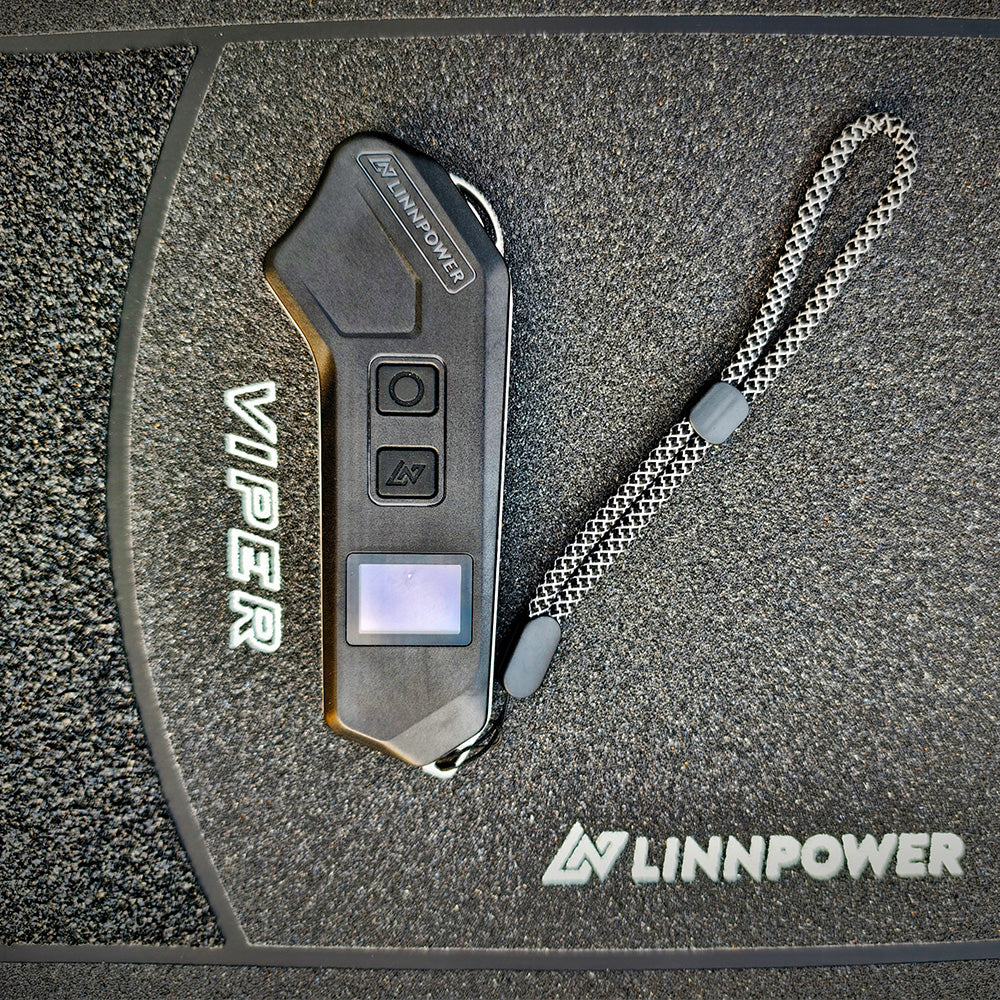

The Most Reliable HW Remote
CNC machined aluminum alloy frame, and CNC Scroll Wheel, with double bearing fixation for precise control.

Compatibility - Riptide Bushings
Designed to work with Riptide bushings(25×16) and washers for a more customizable ride feel.
FAQ
Reliability.
- No Cast Parts: LINNPOWER's products eliminate the use of cast components, particularly in the skateboard's truck assemblies. This means there are no more frequent breakages of baseplates, kingpins, and hangers.
- Designers Who Ride: At LINNPOWER, our designer is rider first. We do not rely on customers to test our products. This means our designers personally use and test the skateboards, ensuring that they undergo rigorous internal testing before hitting the market.
- Designers as First Testers: LINNPOWER's designer is the first to ride and push the limits of our skateboards. This demonstrates our company's commitment to product safety and performance, ensuring that our products meet high standards before they are delivered to customers.
Playability.
Enhanced Maneuverability: Compared to common shortboards, VIPER's slightly concave deck, wheel flares, and the kicktail, gives the rider incredible control. The kick tail will also allow for sharp turns, easier board pick-up, and even tricks.
Safety, Reliability, and Durability.
- Casting processes can lead to defects such as porosity, looseness, and unevenness, which can reduce the strength and durability of parts.
- Cast components may not be as strong and durable as forged or machined parts. To enhance the reliability and lifespan of board components, the choice is made to avoid using cast parts.
- Cast parts are more susceptible to damage under high loads or repeated use, leading to frequent maintenance or replacement. Steering clear of cast parts can minimize these issues.
- Enhancing Safety: In sports equipment like electric skateboard, the sudden failure of a part can result in severe accidents. Avoiding the use of cast parts helps to improve product safety.
VIPER is not designed for riders seeking extreme power in a shortboard. It offers more than enough power to tackle slopes in streets, parks, or campuses, while maintaining a low center of gravity and excellent turning ability. It delivers stability at high speeds and precision at lower speeds, all while maintaining a sleek and durable design. The goal of VIPER is to provide a reliable, portable, and fun short-distance commuting option at a reasonable price. If the range of the VIPER meets your needs, it should definitely be on your list. It is built to last a long time, making it a reliable commuting companion for years to come.
We are aware that some brands claim 1P battery packs degrade quickly and have a shorter lifespan. However, such statements are completely disconnected from real-world usage. As mentioned, significant battery degradation only occurs under sustained peak output, which is rare during daily riding.
For example, if you ride the VIPER for 15 km:
- At a speed of 20 km/h, it takes 40 minutes, with an average current of 6.6A.
- At 30 km/h, it takes 30 minutes, with an average current of 10A.
Both scenarios are far below 30A, meaning the battery is not under excessive stress. In esk8 applications, peak currents are rarely sustained long enough to cause noticeable degradation. The VIPER’s battery and entire system have undergone extensive stress testing—there are no issues with performance or durability.
That said, if you're concerned about battery lifespan, I will personally arrange a 50% discount whenever you decide to replace your battery. Due to shipping cost fluctuations, the discount does not cover shipping fees.
A356 is a good casting aluminum alloy and certainly more cost-effective. However, it is still a casting components, and its strength is significantly lower compared to forged or CNC-machined alternatives, which is why it doesn't meet our strength requirements.
VIPER trucks are 100% stronger than standard cast trucks and 50% stronger than A356.2 gravity-cast trucks.
Casting inevitably leads to internal defects, whereas LINNPOWER uses forging and CNC machining, eliminating these issues. Our manufacturing cost for trucks is 5-7 times higher than casting.
Unlike the common 2.1 or 2.0 gear ratios, the VIPER 216WH comes with a stock 2.8 gear ratio, providing increased torque and enhanced climbing ability, making steep hills effortless. The 432WH version features a 3.1 gear ratio.

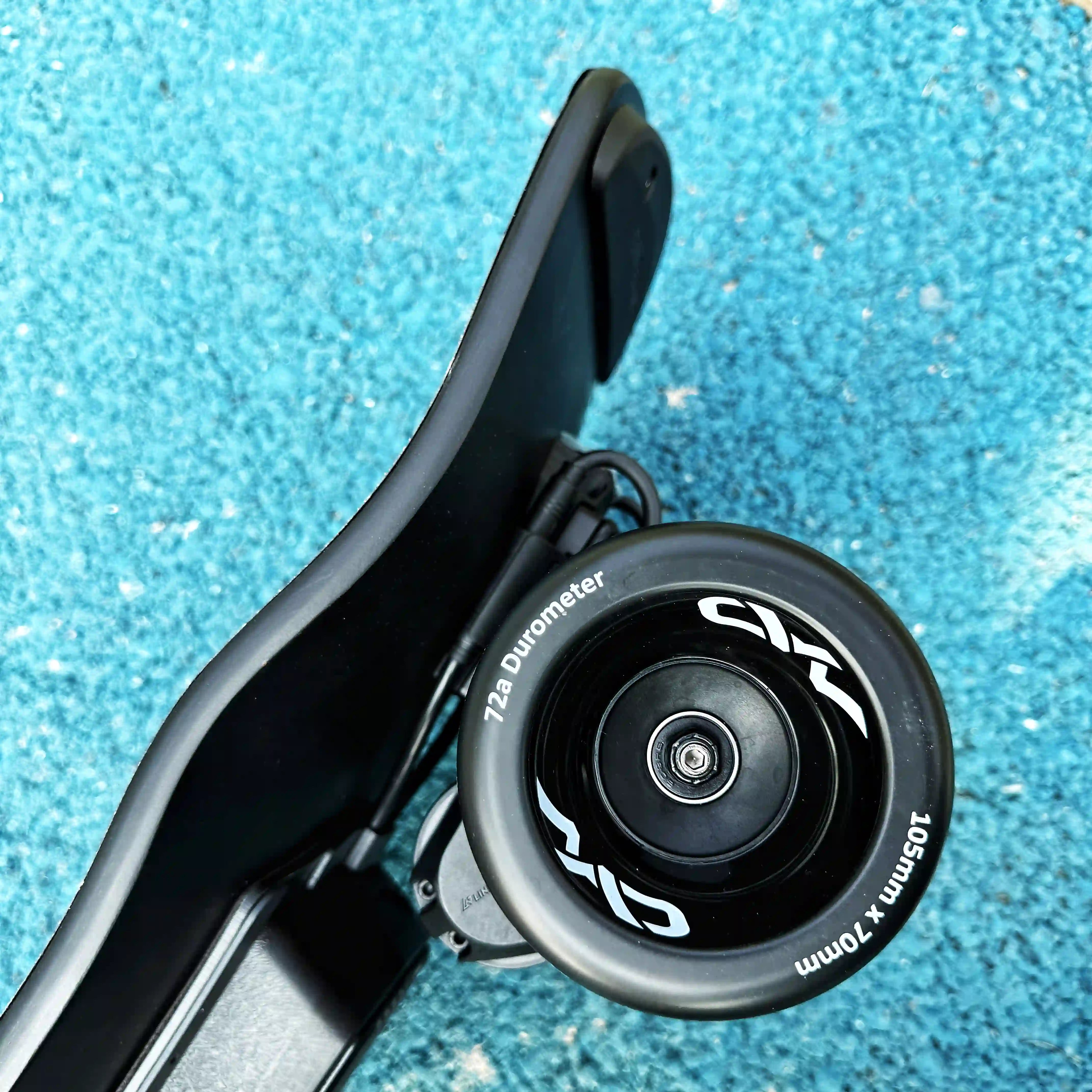

The VIPER is compatible with wheels ranging from 80mm to 105mm. The stock pulley is designed for kegel core. However, using larger wheels may increase the likelihood of wheel bite. If you plan to purchase Cloudwheels, you're going to be purchase our ABEC pulleys.
Both versions offer similar torque and terrain adaptability.
- If you prioritize portability and agility, the 12S1P version is lighter and more compact. The 216WH battery, when using the stock fast charger, charges from 0-80% in just 30 minutes.
- If you prefer longer range on a single charge, the 12S2P version is a better choice.
Regardless of which version you choose, the VIPER delivers excellent control and stability.
High-quality standard griptape offers a more direct connection between our feet and the board, providing better control. Additionally, premium griptape is more durable. The VIPER also features high-quality Boosted V3 wheels, which provide excellent shock absorption. However, if you prefer padded griptape, you can purchase it directly from LINNPOWER at low cost.
Considering the 432WH VIPER's 30A ESC and the 432Wh has a 2S configuration, we chose the EVE 50E cell, which has a continuous discharge rating of 30A. This means the battery is more than sufficient for the VIPER 432Wh. It's a choice that balances the skateboard's overall configuration, performance, and price.
Firstly, any malfunctions caused directly or indirectly by water damage are not covered under our warranty.
However, thanks to LINNPOWER's reverse-threaded nut structure, silicone seal, etc., the VIPER's water resistance can reach an IP67 rating. The waterproof design is intended to handle unexpected situations, but please avoid riding in the rain or humid environments.
We offer a 6 month warranty. for more details please refer to our warranty policy.
