EVO MK-1
- The Most Structurally Safe Battery Pack;
- Entirely CNC Machined Channel Trucks, 7075 - T651 Heat Treated Hanger with 12mm truck axles from S136H;
- Integrated Bushing Structure Allows Precise Steering and Tight Turning Radius;
- 6061-t6 CNCed Quick Release Wide Hub, Swap Out Tires in Just 30s;
- Durable, Less Flexibility & Patented Binding Installlation Nut Structure Deck;
- 14S4P/14S3P Samsung 50s cell;
- Hobbywing 6370*2, 155kv;
- Hobbywing 14S ESC & App;
- Top Speed: 62km/h | 39 mph;
- Range: Up to 50 - 67km | 31 -41 miles;
Shipping

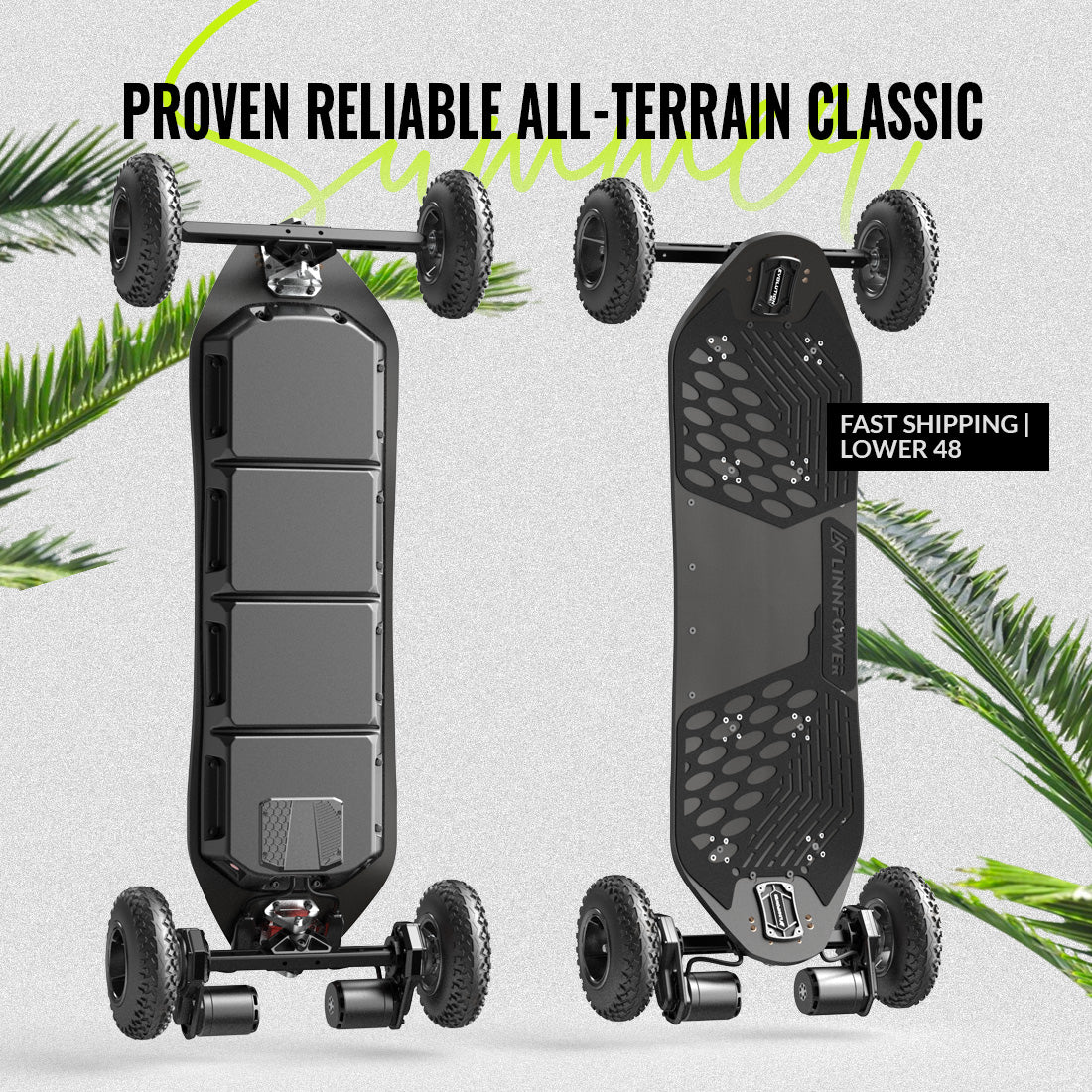

EVO MK-1 AT Board: Your Ultimate All-Terrain Companion.
Key Features:
- LINNPOWER FlexVolt Pack: A solid and reliable battery pack, leading the market in structural safety.
- Waterproof Bindings Installation: Enjoy worry-free rides with our patented technology.
- Durable Snowboard-Inspired Deck: Engineered for lasting performance and smooth rides on any terrain.
- Trampa Truck Mounting Hole Ready: Designed for seamless compatibility with your favorite trucks.
- LINNPOWER Customized Hobbywing Remote: The market's most reliable HB remote with a CNC machined aluminum alloy frame and durable silicone buttons.
- CNC Machined Channel Truck: Constructed with high-strength 7075-t651 aluminum and S136H steel axles for unwavering reliability.
- Quick Release Hub: LINNPOWER's patented quick install & removal structure allows for easy bearing changes, compatible with various bearings and tire sizes up to 9 inches.
- V4.3 GearDrive: Our lightweight design features high torque handling and spur gears for efficiency and durability. Also available with a belt drive system.
- Powerful Electrics: Equipped with a customized 14s controller and 6370 motor from Hobbywing for high power and reliable performance.
Meet the EVO MK-1, Where Reliability and Innovation Meet Adventure!
| EVO MK-1 Lite | EVO MK-1 Pro | |
| WHEELS | 200mm (8 inch) Pneumatic Tire -
LINNPOWER CNC Quick Release Wide Hub with Patented Bearing Quick-remove Structure |
|
| RANGE | 20-25kmh: Up to 50km | 31 miles 30-35kmh: Up to 38km | 23.6 miles |
20-25kmh: Up to 67km | 41 miles; 30-35kmh: Up to 50km | 31.1 miles |
| TOP SPEED | 62km/h | 39 mph | 62km/h | 39 mph |
| BATTERY | 14S3P - 756WH - 15AH - Samsung 50S | 14S4P - 1008WH - 20AH - Samsung 50S |
| MOTOR | Hobbywing 6370*2, 155kv | |
| ESC | Hobbywing 9028 ESC & App | |
| REMOTE | LP*HBY Remote: CNC Aluminum Alloy Frame, and CNC Scroll Wheel, Double Bearing Fixation for Precise Control | |
| DECK MATERIAL | Snowboard Manufacturing Techniques. Reinforced with Wear-resistant Layers and Custom Composites for Durability | |
| DECK LENGTH | 96 cm | 38 inches * 27.8cm | 10.94 inches | |
| TRUCK | LINNPOWER Channel Truck, CNCed, 44.7cm | 17.9 inches, 12mm axles, 22*22 two-piece Caliber Clamp | |
| GEAR RATIO | Belt Drive, 4.0 Ratio | Gear Drive, 4.3 Ratio |
| WHEEL BASE | 91.5 cm | 36.6 inches | |
| WEIGHT | 16.4kg | 36.2lb | 18.5 kg | 40.7 lb |
| MAX LOAD | 150 kg | 330 lb | |
| CHARGE | 3.8 hrs | 5 hrs |
| HILLS | 30% | 35% |
| BRAKING | Regenerative Braking, adjustable 10-100% | |
| BINDINGS | Optional - Patented Embedded Nut Tech Help Binding Installation | |
| BUSHING | Rear Truck: Red 85A /Front Truck:
White 75A |
|
| Light Kit | Optional -
Integrated Tail Light; Optional - High Quality Third-Party Front Light |
|
| * Tested by a 154lbs/70kg rider at a constant speed of around 25 km/h | 15 mph, on flat terrain with gentle breeze at a temperature of 30℃/ 86°F. | ||
Starting now, EVO MK-1 shipments will be sent as a COMPLETE BOARD,
rather than separate components like the front truck assembly, rear truck
assembly, and Deck with Battery Kit.
EVO MK-1 Pro:
EVO MK-1 Pro Complete Board;
LINNPOWER x Hobbywing Remote;
Spare Bushing;
H3 Hex Key;
H4 Hex Key;
3/8Inch Combination Wrench;
T Tool;
4A Charger;
Remote Manual;
Quick Start Guide;
EVO MK-1 Lite:
EVO MK-1 Lite Complete Board;
LINNPOWER x Hobbywing Remote;
Spare Bushing;
H3 Hex Key;
H4 Hex Key;
3/8Inch Combination Wrench;
T Tool;
4A Charger;
Remote Manual;
Quick Start Guide;

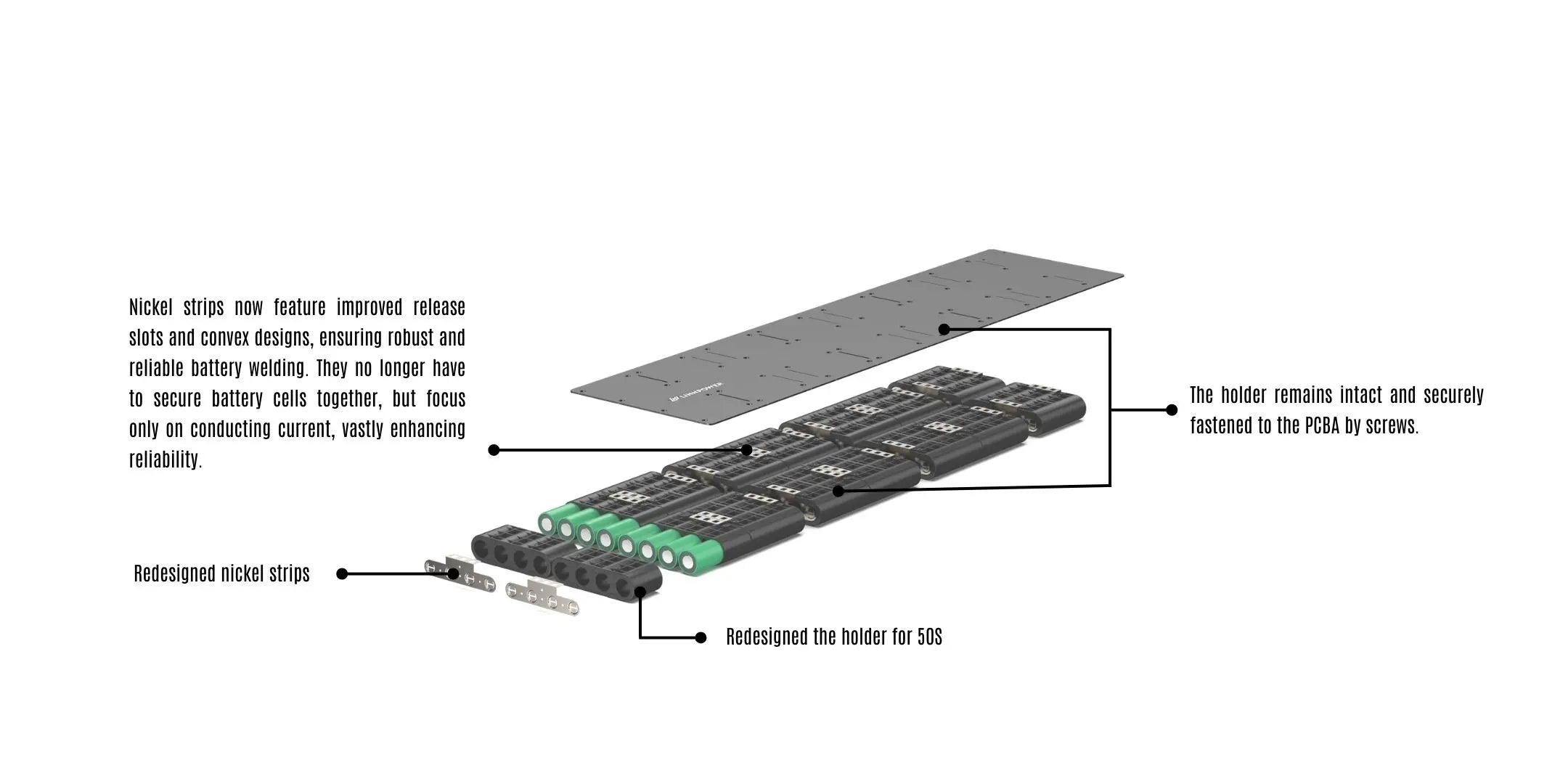

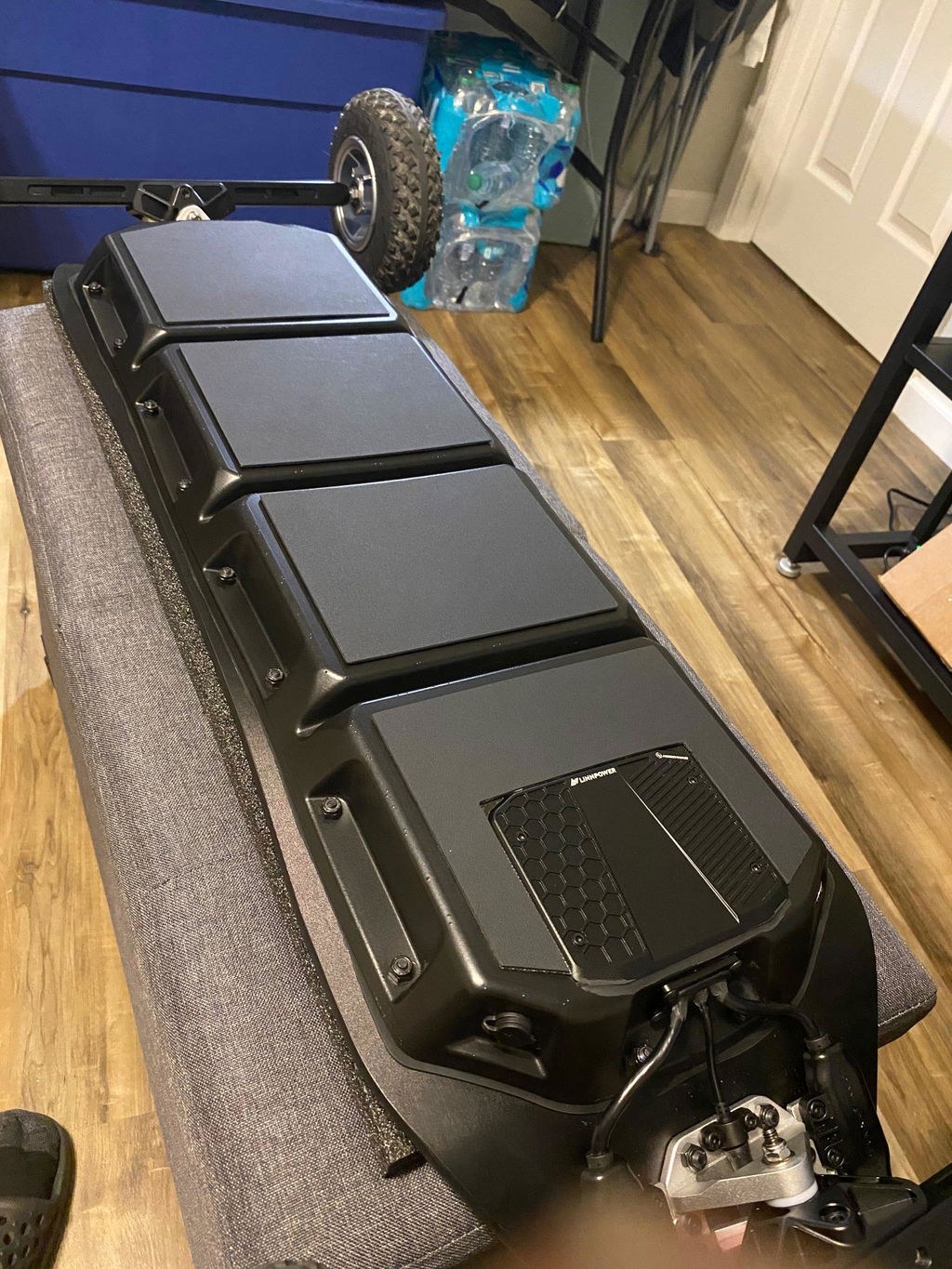

The Most Structurally Safe Battery Pack
LINNPOWER FlexVolt Pack
We’ve implemented our custom-designed battery structure, redesigning the holder and nickel strips, and integrating a complete PCBA—eliminating wire harnesses. This new holder, securely fixed to the PCBA, meets automotive-grade standards, representing a major advancement in skateboard battery design. The nickel strips now feature improved release slots and convex designs, ensuring robust and reliable battery welding. They no longer need to secure the battery cells together, focusing solely on conducting current, which greatly enhances reliability. This innovative approach, dubbed FlexVolt, delivers unprecedented power, reliability, and flexibility.

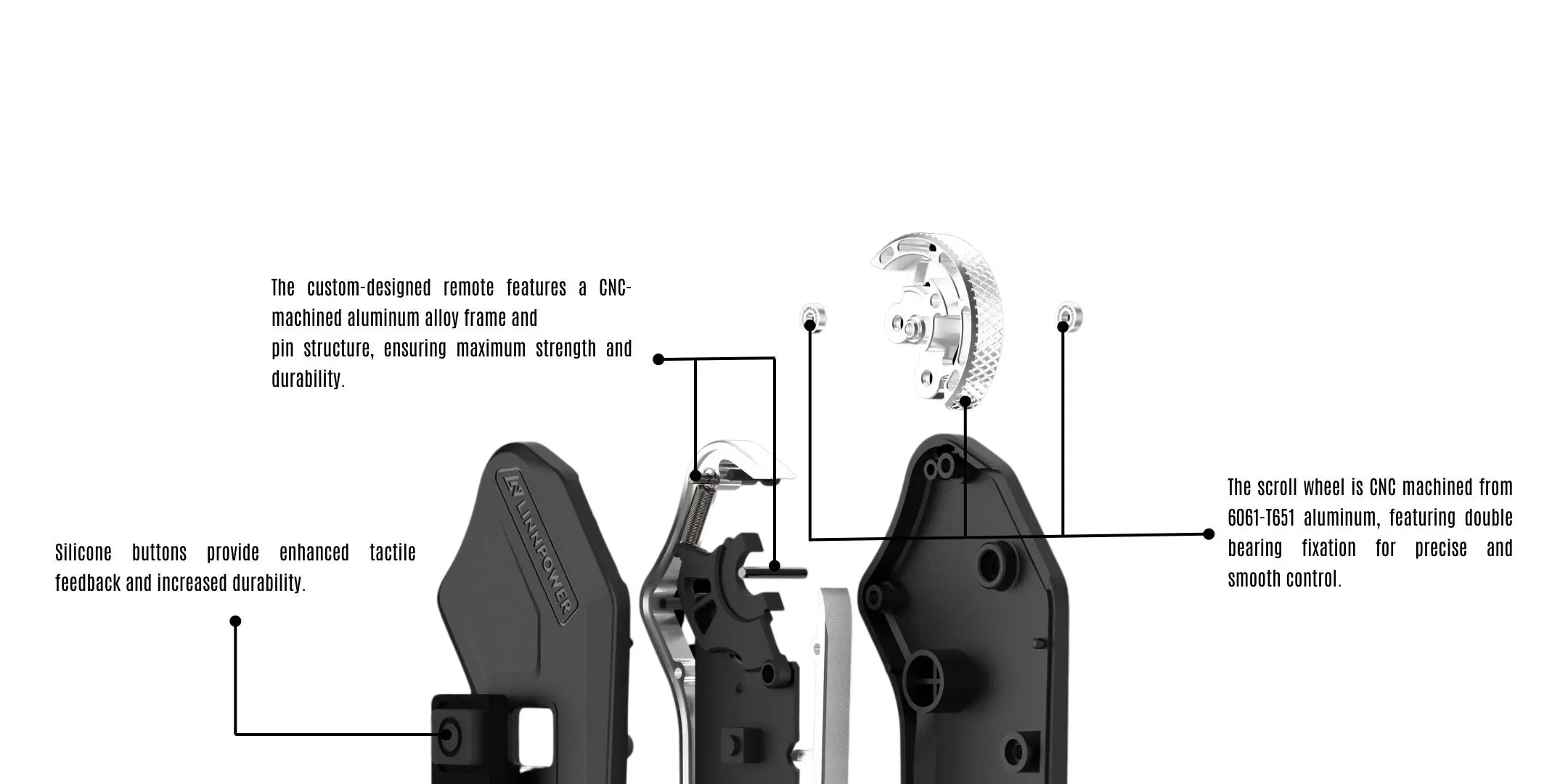

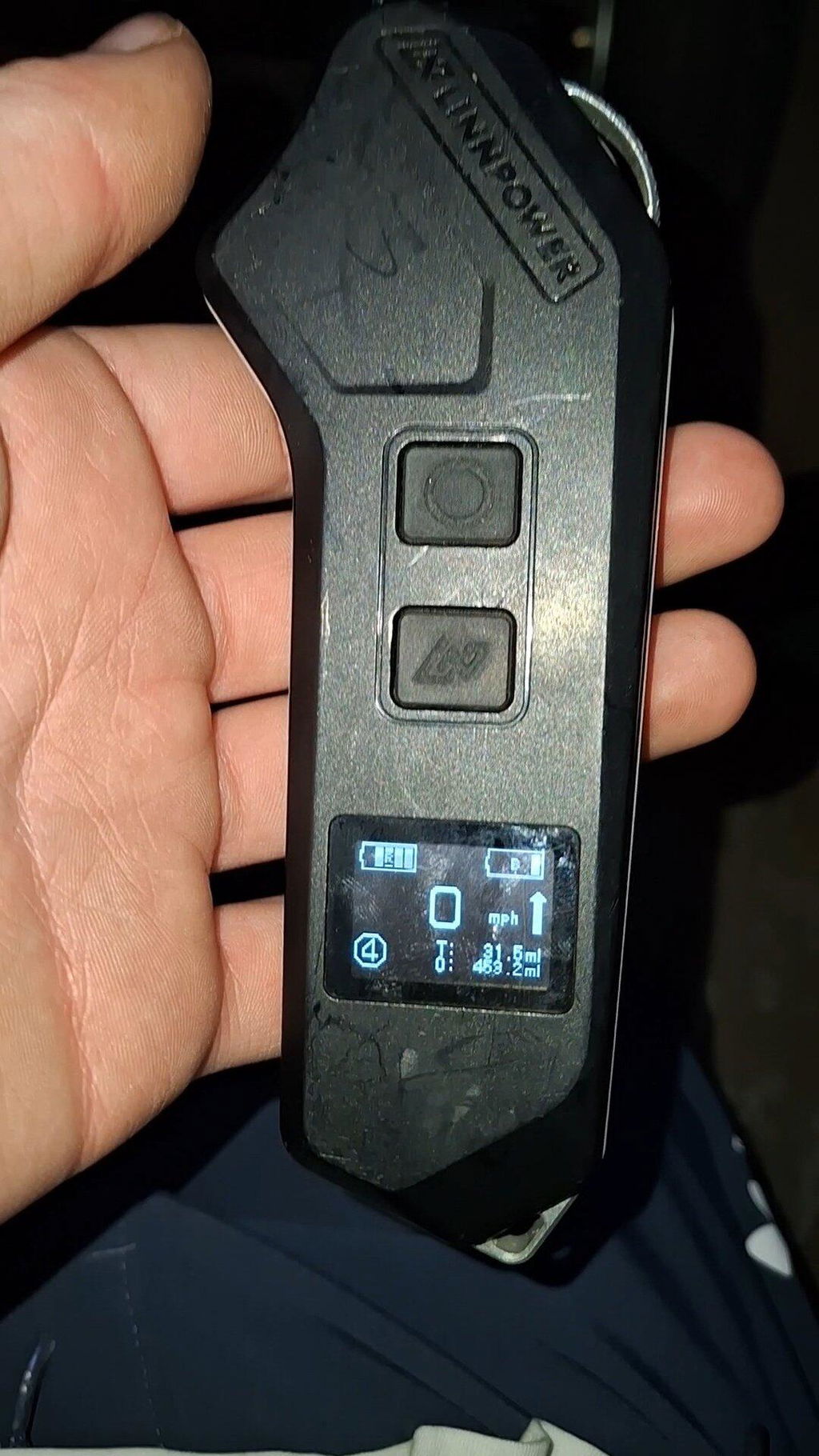

Reliable Remote, Precision Control
LINNPOWER x HOBBYWING
Our custom-designed remote features a CNC-machined aluminum alloy frame and pin structure for maximum strength. The scroll wheel is also CNC-machined from 6061-T651 aluminum and secured with double bearings for precise, smooth control. The LCD screen provides clear, at-a-glance display of all essential data.

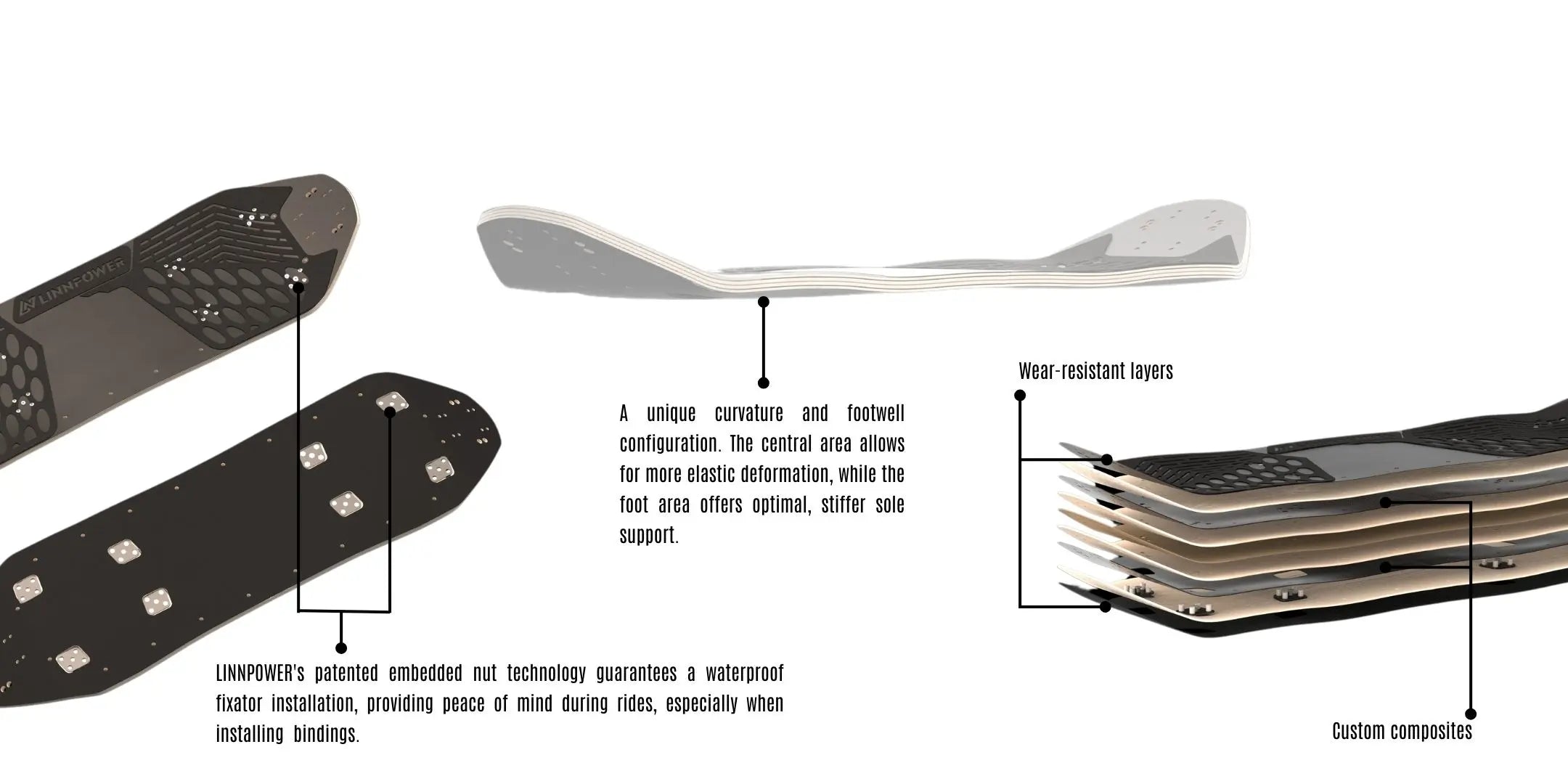

Durable, Flexible Deck
Snowboard Manufacturing Techniques
Revolutionizing electric skateboards with our deck’s groundbreaking design: a unique curvature and footwell configuration. The central area allows for greater elastic deformation, while the foot zones provide optimal, stiffer support. Crafted using snowboard manufacturing techniques and reinforced with wear-resistant layers of maple, bamboo, and custom composites. Plus, our patented embedded nut technology ensures waterproof fixator installation for worry-free riding.

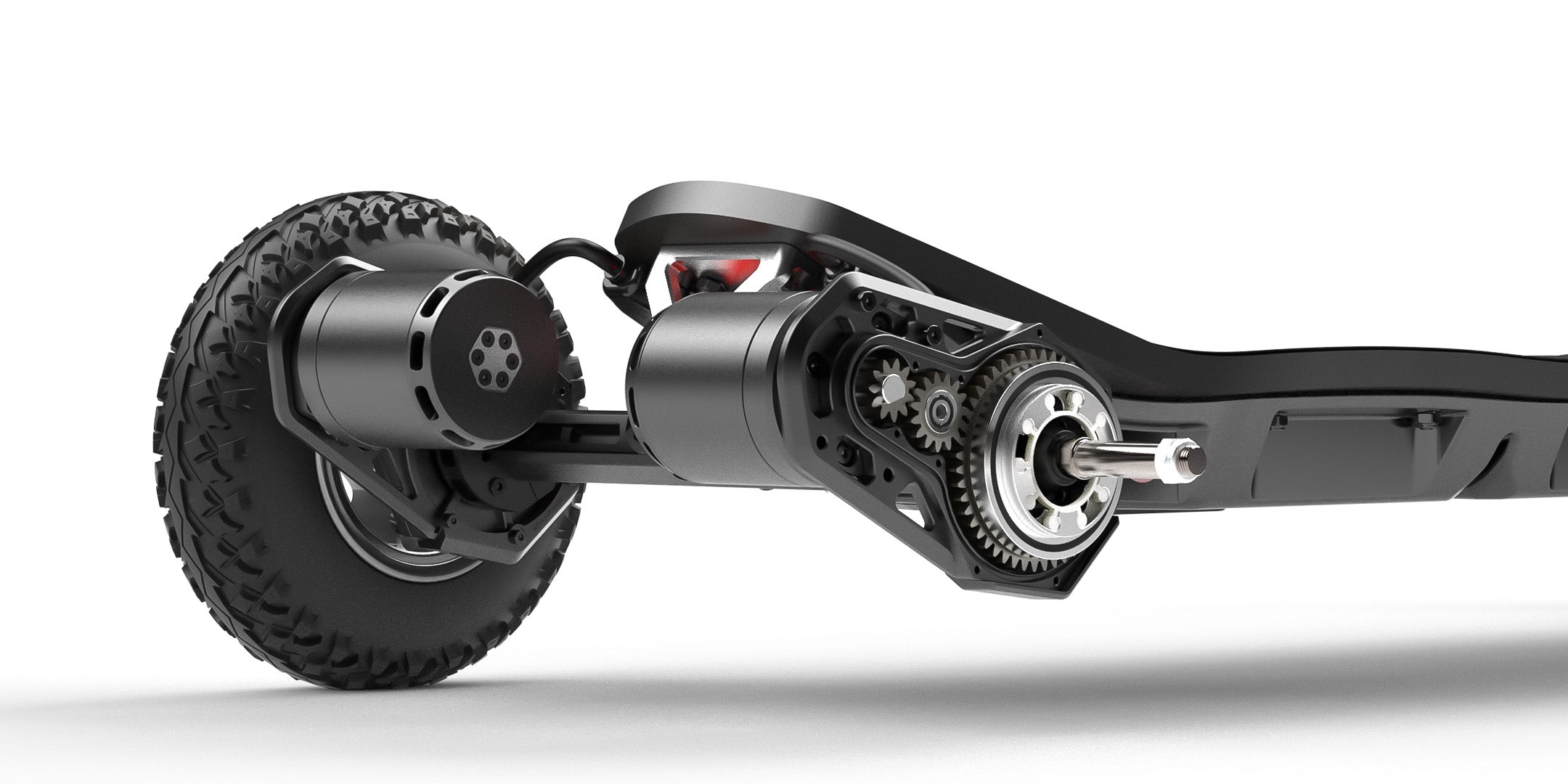

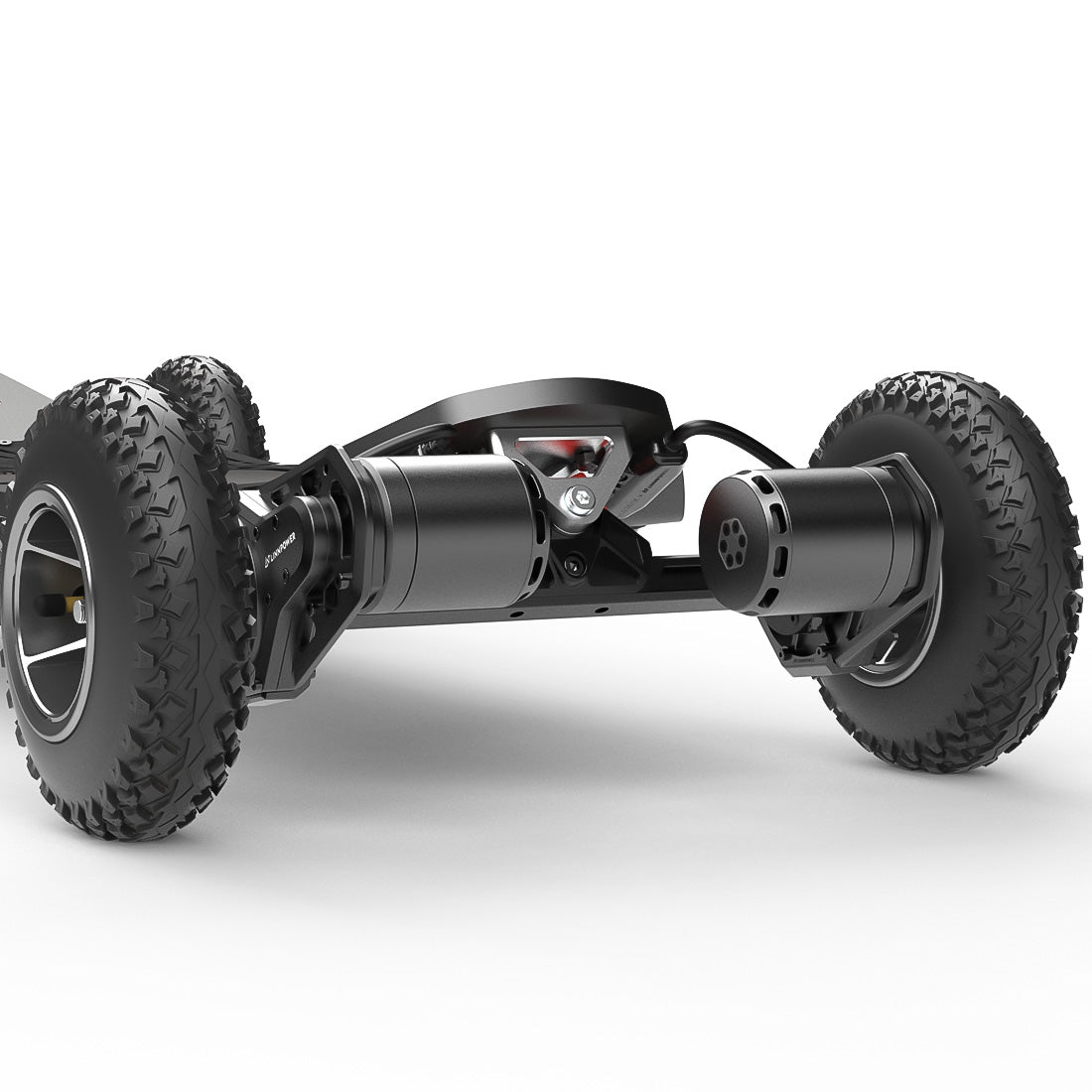

Reliable and Trusted Geardrive
Linnpower V4.3 MT Geardrive
The V4.3 Gear Drive remains as reliable and efficient as ever. It features a 4-gear design for enhanced engagement and high-torque handling. Equipped with spur gears, it eliminates axial force while boosting efficiency. The gears have been redesigned for quieter operation, and our innovative buffering system protects them for maximum durability. With a lightweight design, each gearbox weighs less than 600g. Additionally, the board can be fitted with a belt drive for versatility.
Carvy & Stable

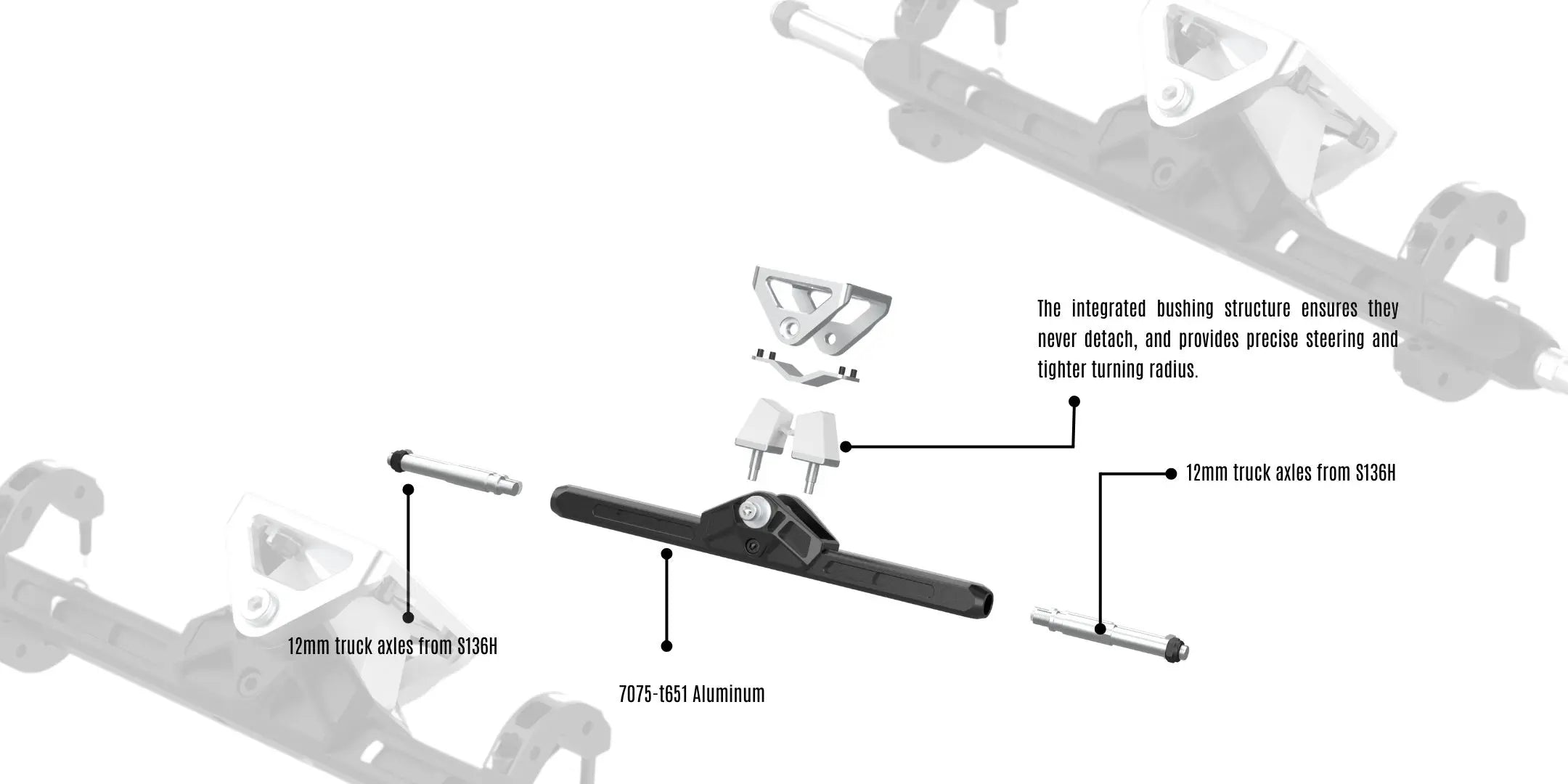

NEXT Channel Truck
Our custom-designed, fully CNC-machined Channel Trucks feature a hanger made from 7075-T651 aluminum and 12mm truck axles crafted from Chromium-nickel alloy steel. The integrated bushing structure ensures they never detach, providing precise steering and a tighter turning radius.
Smooth & Reliable
Hobbywing FOC ESC
We’ve customized a 14S, 60A(bus), 90A (phase) controller from Hobbywing, paired with the 6370 motor to deliver high power while maintaining smooth and reliable performance. The ESC’s thermal design has been reworked with a 6061-T651 aluminum controller housing and integrated heat sink for improved heat dissipation.
Smooth & Reliable

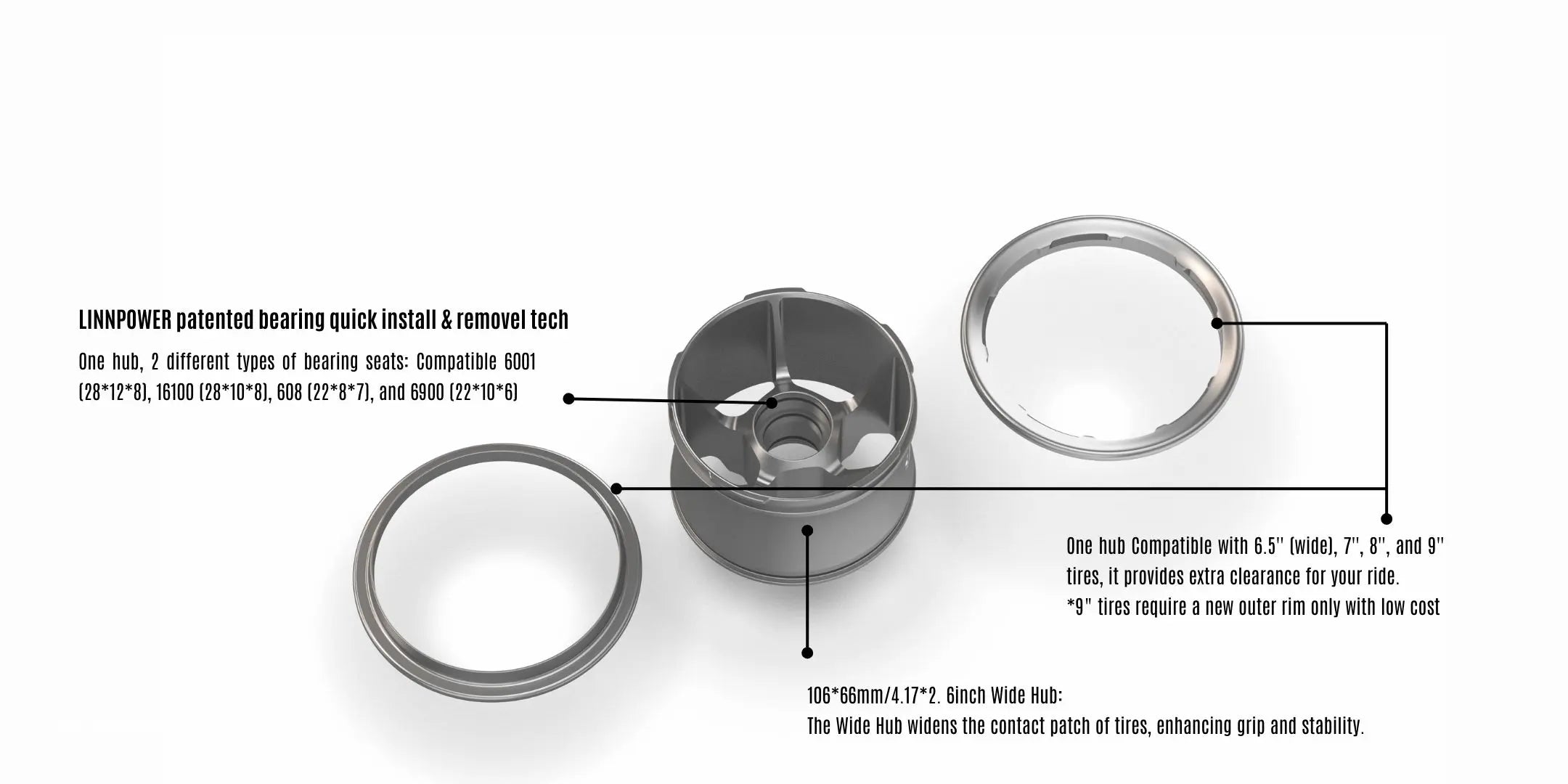

CNC Quick Release Wide Hub
106×66mm Wide Hub, CNC-machined from 6061-T6 aluminum, featuring our patented quick-install and quick-release bearing technology.
Since the introduction of Linnpower’s quick-release hub structure, it has sparked widespread imitation across the industry. Some brands attempt to differentiate by making their hubs thicker or heavier, claiming increased strength. In reality, under the same specifications and performance requirements, achieving strength and reliability with less weight demands far higher standards in design, engineering, and testing.
