18S high-voltage platform.
Built for riders who expect more than standard production boards.

NOTICE FOR BEGINNERS
OVERLAND is designed for experienced riders who know what they need. Due to its size, weight, and power, it is not recommended as a first electric skateboard.

Sale price$3,499.00 USD Regular price$4,399.00 USD
Save $900.00

Model:OVERLAND 2WD (RaceAxis MT™ · Speed)

Need help choosing?
RaceAxis MT™ is optimized for high-speed performance and precise carving, while RaceAxis IS™ is designed for greater comfort and control over rough roads, uneven terrain, and light off-road conditions.

Quantity:
  • Top Speed: 2WD: Up to 85 kmh; AWD: Up to 65kmh;
  • Range: 2WD: Up to 145km; AWD: Up to 90km;
  • ESC: 2WD: 18S 160A; AWD: 14S 90A *2;
  • Motor: 2WD: 7087*2 12000W in total; AWD: 6485*4 10000W in total;
  • Hills: 2WD: 60%; AWD: 70%;
  • Trucks: RaceAxis MT™ MULTI-LINK Suspension Truck & RaceAxis IS™ INDEPENDENT  Suspension Truck;

OVERLAND 2WD Package Includes:

Box 1 of 2 (Truck Kit):

  • OVERLAND Front Truck Kit
  • OVERLAND Rear Truck Kit

Box 2 of 2 (Main Body):

  • OVERLAND Deck (with Integrated Battery & ESC)
  • LINNPOWER x JECNN Remote
  • 75.6V 7.5A Charger

Tool Kit & Others:

  • Remote Manual
  • T Tool
  • 16mm CNC Wrench
  • Hex Key Set (H6, H5, H4, H3, H2.5)



OVERLAND 4WD Package Includes:

Box 1 of 2 (Truck Kit):

  • OVERLAND Front Truck Kit
  • OVERLAND Rear Truck Kit

Box 2 of 2 (Main Body & Accessories):

  • OVERLAND Deck (with Integrated Battery & ESC)
  • LINNPOWER x JECNN Remote
  • 58.8V 10A Charger

Tool Kit & Others:

  • Remote Manual
  •  Tool
  • 16mm CNC Wrench
  • Hex Key Set (H6, H5, H4, H3, H2.5)

Shipping

Continental US: US$269 | Incl. TAX;
Canada: US$399 | Incl. TAX;
EU: US$369 | Incl. TAX;
AU: US$299 | Incl. TAX;
Other Countries: Check fees at checkout;

OVERLAND RaceAxis MT™ Assembly Guide

Having trouble loading the video? Watch it on YouTube →

Master Every Surface.
Designed for riders who value endurance, stability, and a more spacious, planted stance across varied terrain. With a rigid chassis, RaceAxis MT™ multi-link suspension, RaceAxis IS™ independent suspension, and an 18S 2,916Wh power platform, OVERLAND is engineered for stable, high-speed cruising—from smooth asphalt to rugged trails.
MX-Inspired Suspension | V5.1 High-Torque Drive | Up to 145 km Range | Up to 85 km/h
Built for real terrain. Ready when the road ends.

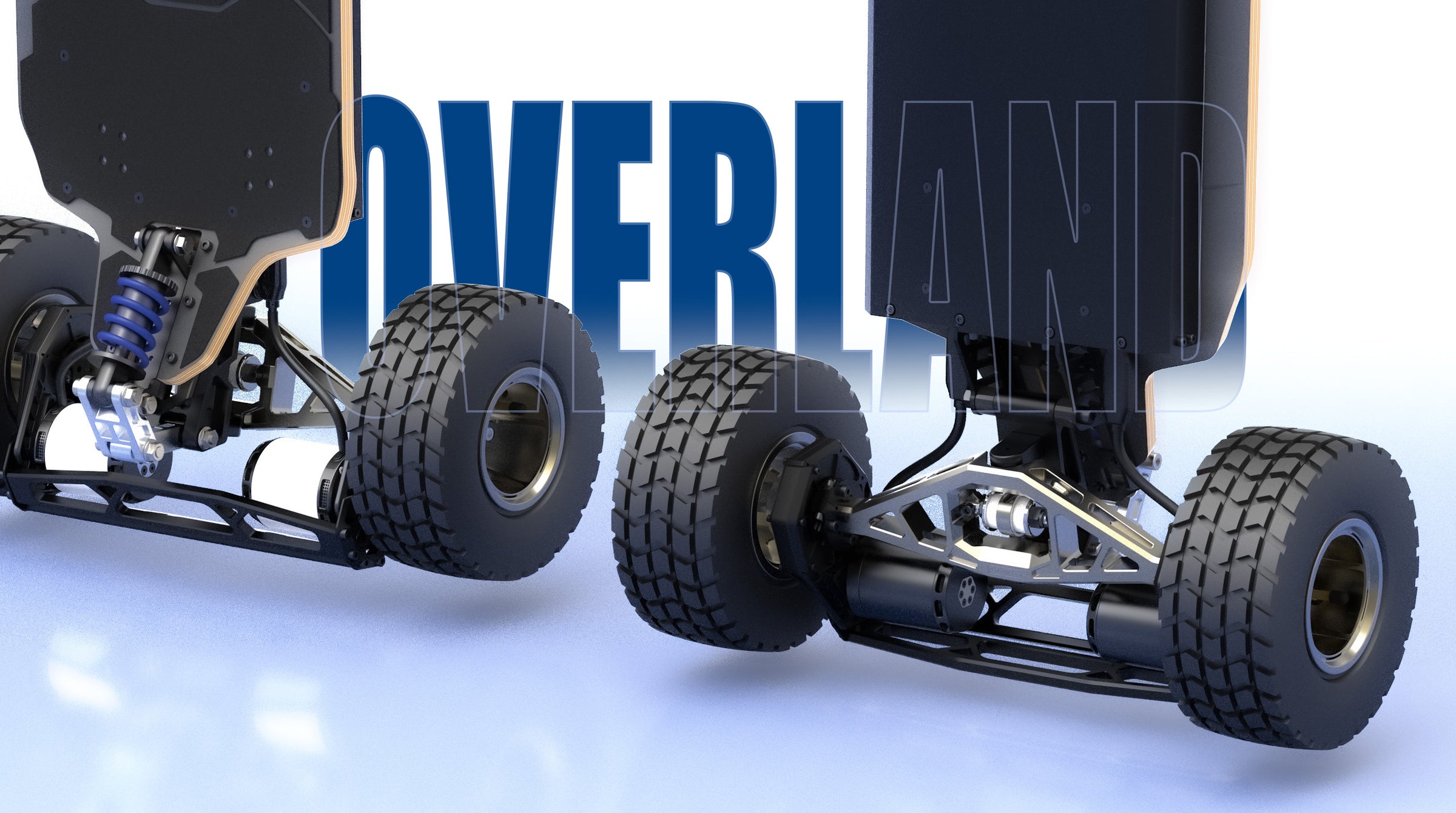

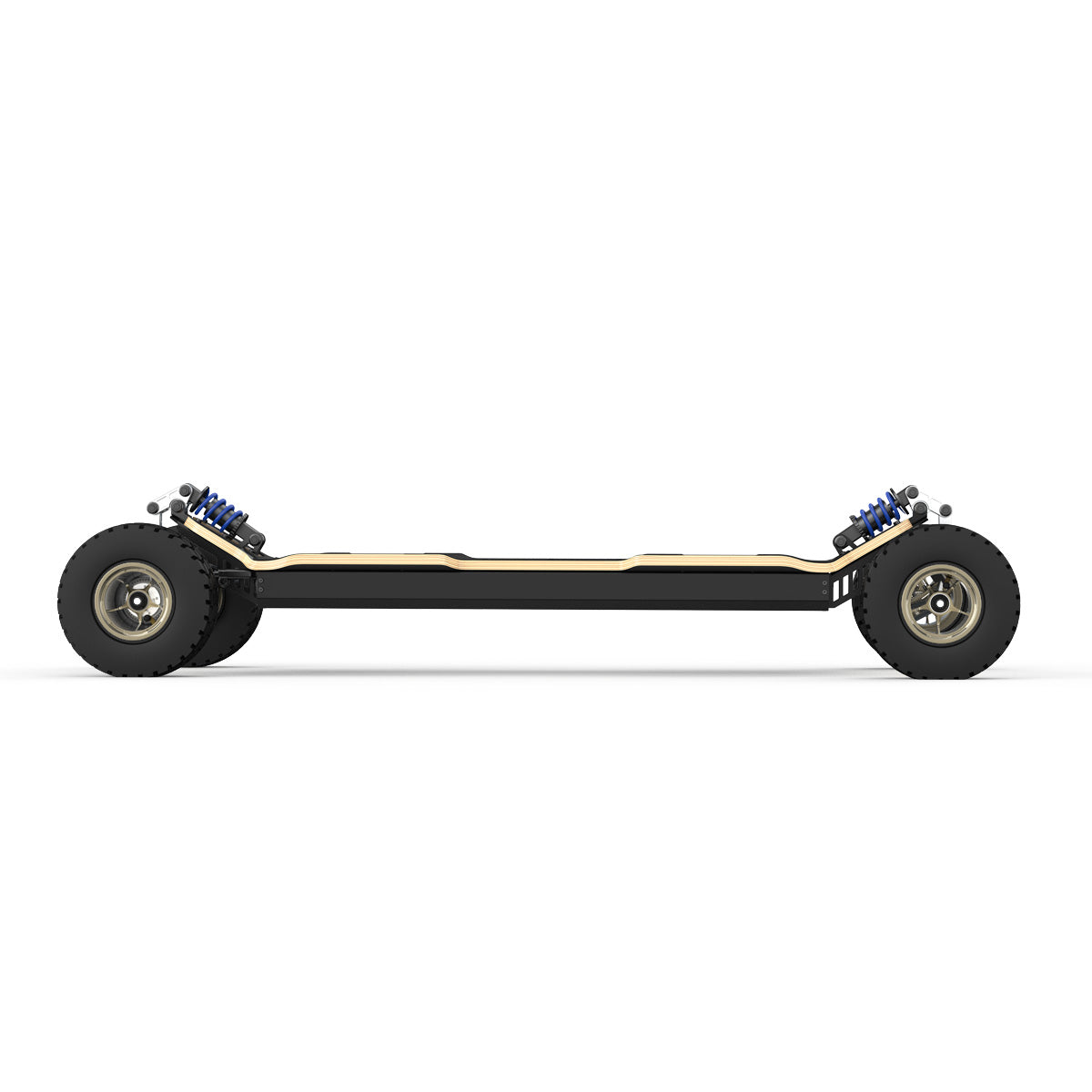

The OVERLAND.
Built for Distance. Engineered for Adventure.
LINNPOWER FLAGSHIP PLATFORM · 2026

The OVERLAND.
Built for Distance. Engineered for Adventure.

Built to Conquer Every Terrain.

A high-voltage all-terrain platform engineered with versatile suspension options, exceptional long-range capability, and rock-solid high-speed stability—delivering confident handling and precise control across pavement, gravel, rugged trails, and beyond.

2916Wh
Capacity
145KM*
Range
12000W
Power
85KMH*
Top Speed

Some boards are built for tricks.
The OVERLAND is built for distance.

Like a Toyota Land Cruiser, the OVERLAND was not created to chase numbers alone — it was engineered to go further, handle more, and remain dependable when conditions become unpredictable. Designed around endurance, stability, and long-range capability, it delivers a level of confidence and control rarely found in standard production boards.

145KM+ RANGE 18S ULTRA-RANGE SYSTEM 2916WH BATTERY 85KM/H TOP SPEED
Battery Capacity
OVERLAND— 2916Wh
~2916Wh
Battery Capacity
Category avg. ~1400Wh
~1400Wh
Hill
OVERLAND— 70%
~70%
Hill
Category avg. — 70%
~45%

The First Electric Skateboard
with Multi-Link Suspension.

The Overland absorbs road vibration with a multi-link independent suspension architecture borrowed from motorsport.

Available in 2WD & 4WD Configs
33°
Front Truck Angle
at Rest
46°
Front Truck Angle
THE DETAILS
13°
Rear Truck Angle
at Rest
25°
Rear Truck Angle
THE DETAILS

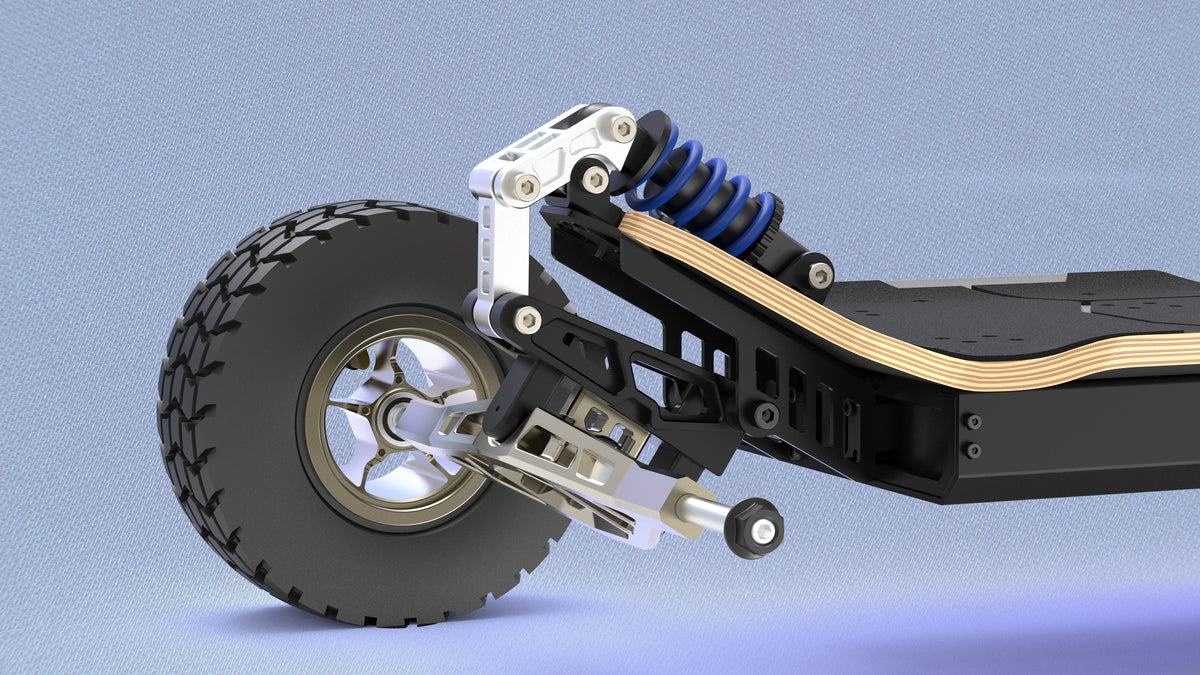

THE DETAILS — 46° front / 25° rear, absorbing the full travel

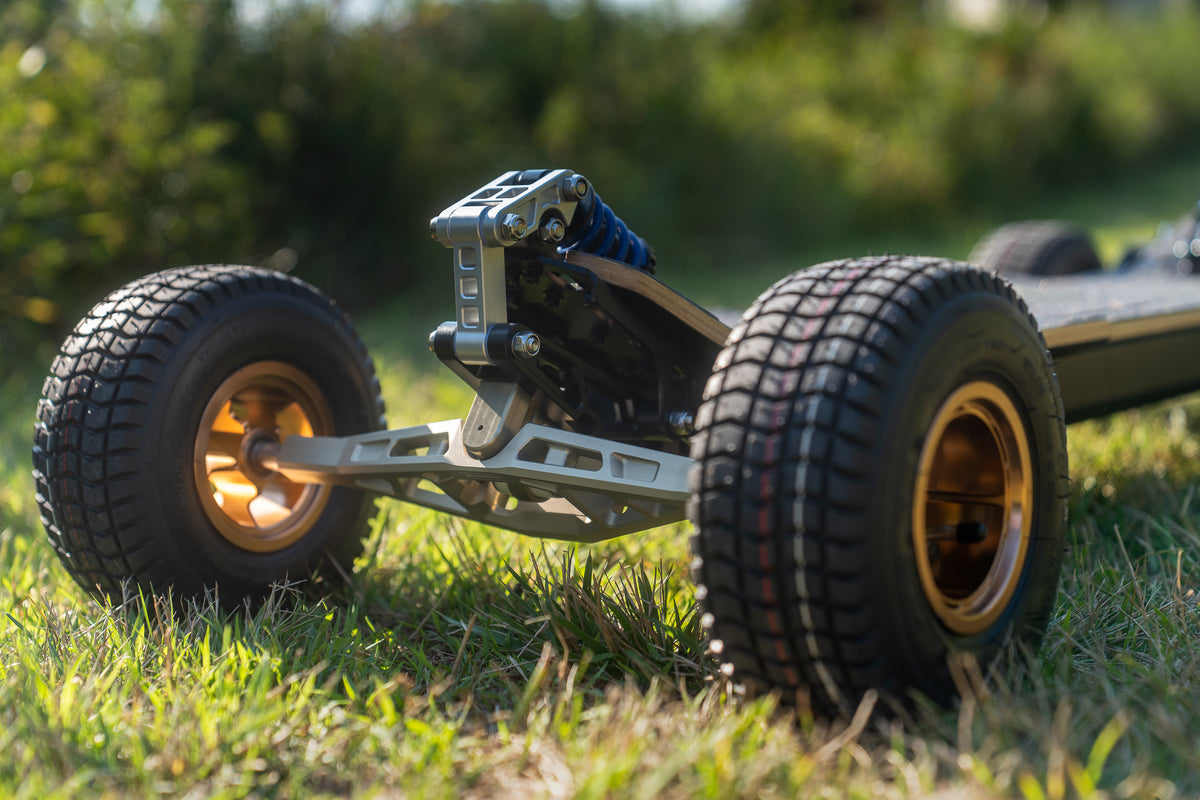

RaceAxis MT™ at rest — 33° front / 13° rear truck angle
At Rest THE DETAILS

Drag to compare · Click to enlarge

🔗

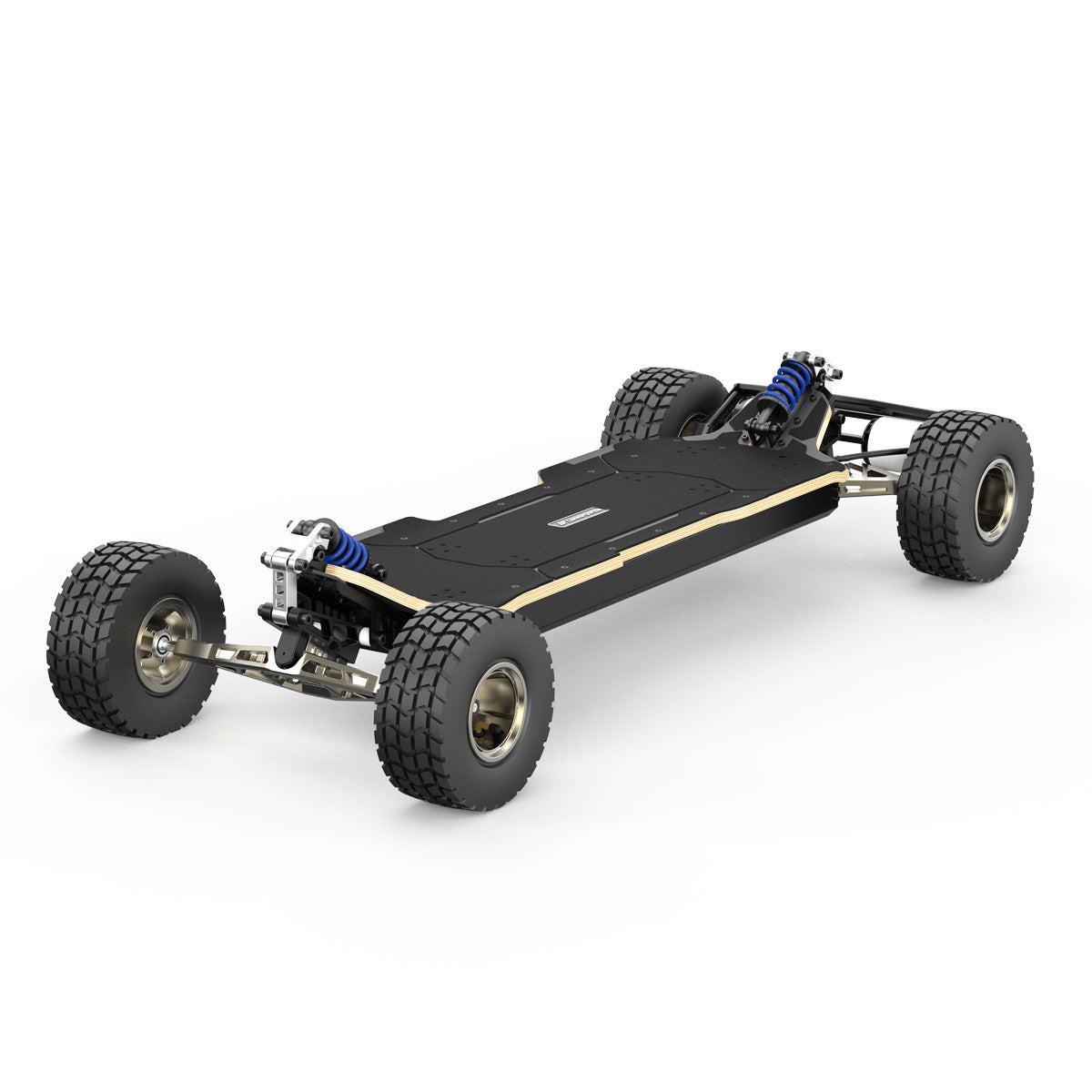

Motorsport-Derived Multi-Link Geometry
A true multi-link layout keeps the wheel plane controlled through the entire stroke, soaking up chatter and square-edge hits that would otherwise kick back through the deck.
33° → 46° Front Travel
🏗️
7075-T651 Hangers, Zero Castings
Hangers are 5-axis CNC machined from 7075-T651 aluminum and hard anodized. No cast parts anywhere in the load path — the reason the assembly survives repeated bottom-outs.
Aircraft-Grade Alloy
🛞
Progressive Compression Curve
Linkage geometry ramps resistance through the stroke: supple over small bumps, firming up before bottom-out so the chassis never slams hard under heavy landings.
13° → 25° Rear Travel
🔩
Forged Chromoly Axles & Kingpins
12 mm forged chromoly steel axles and kingpins carry the suspension loads, with a zero-failure record across the entire RaceAxis field test programme.
Zero-Failure Record

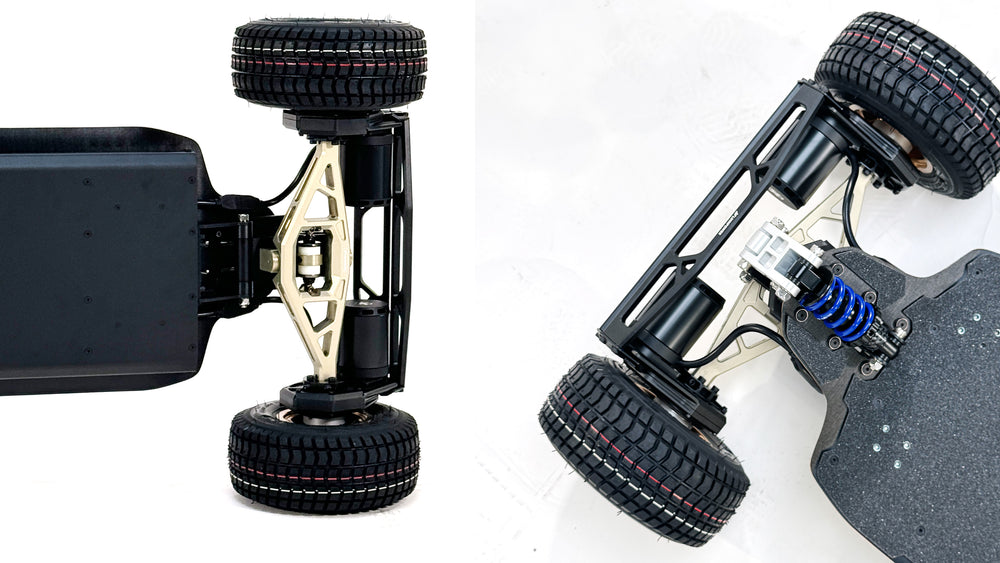

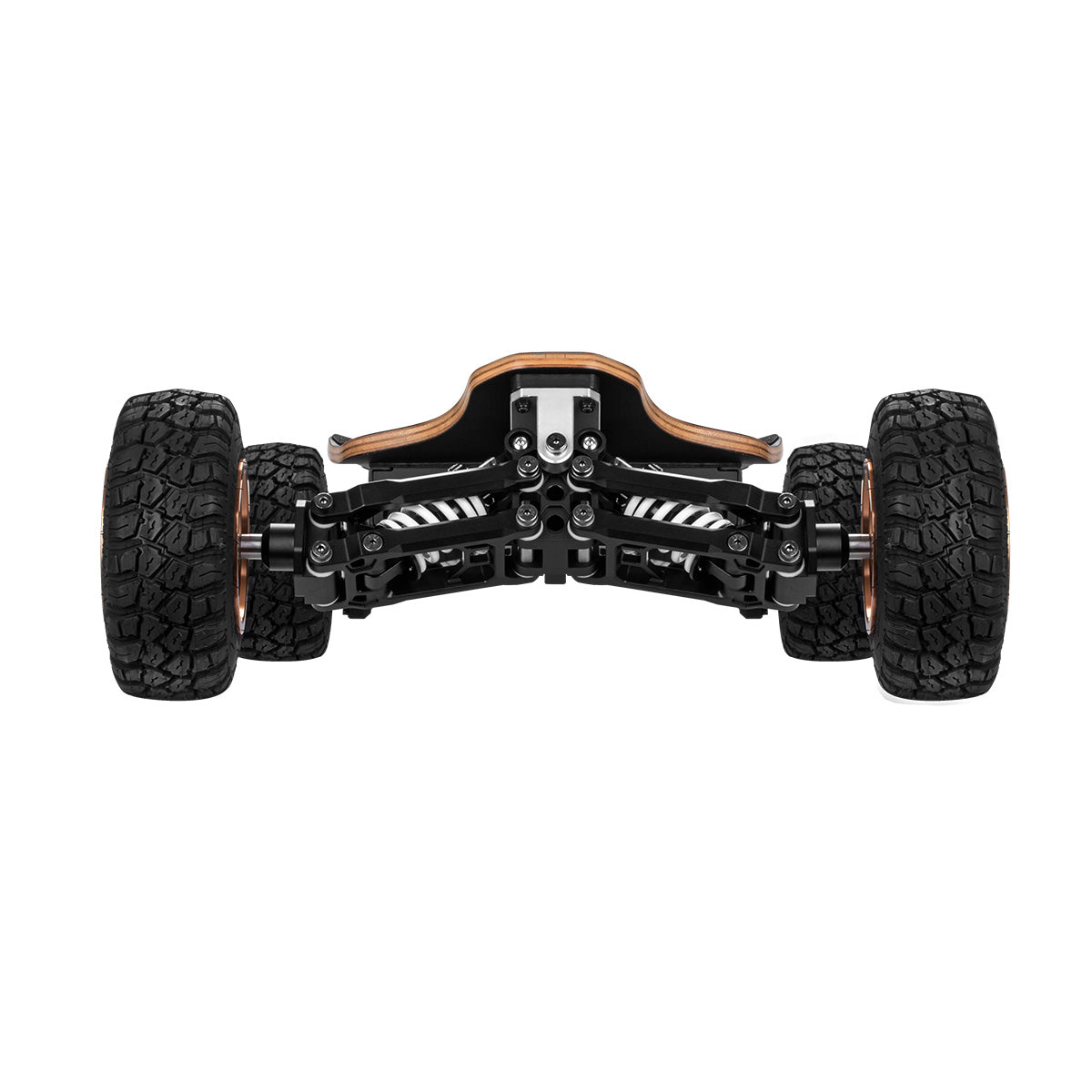

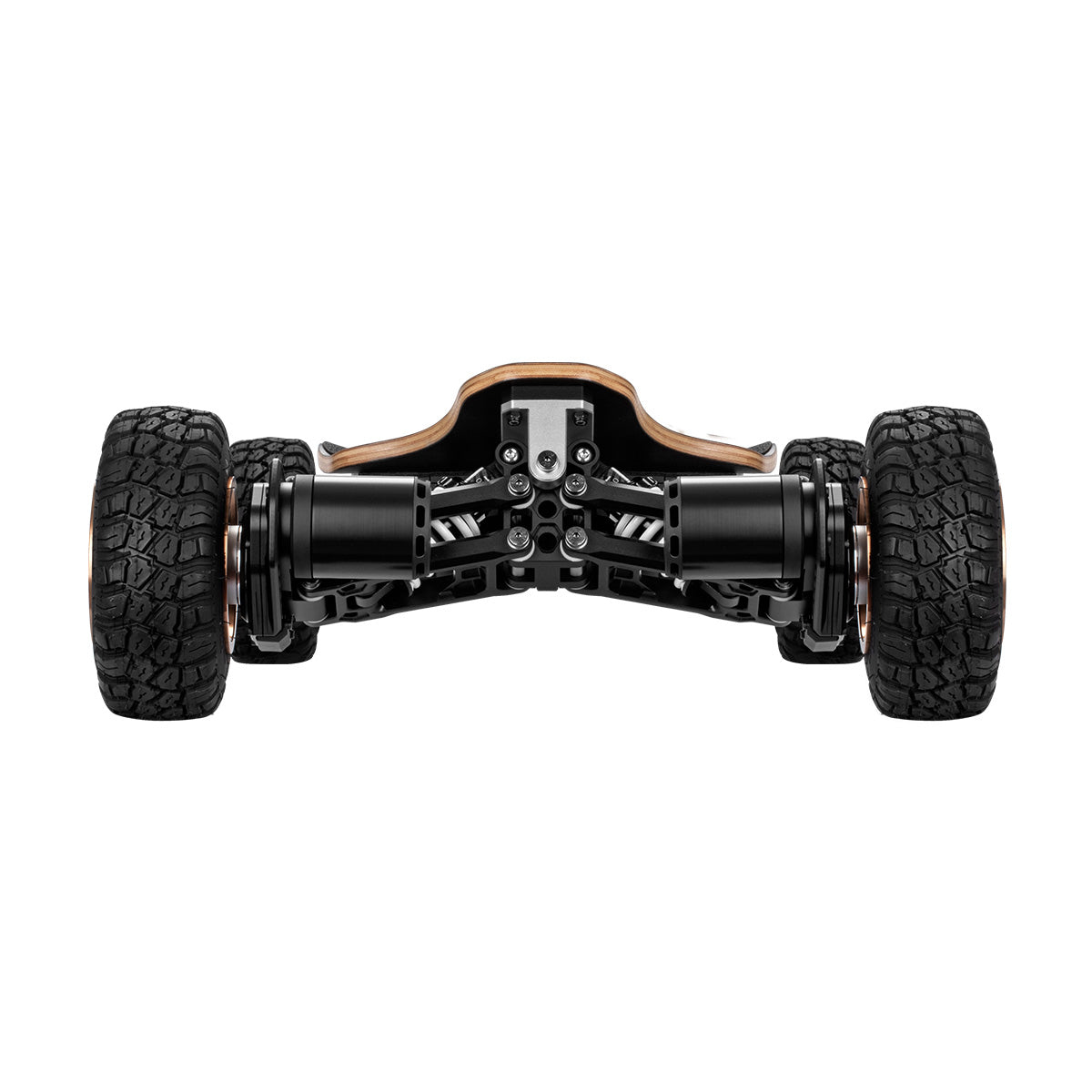

Linnpower Independent Suspension:
Agility Meets High-Speed Precision.

Inheriting RaceAxis DNA, this architecture decouples rider weight from bushing tension, delivering ultra-linear compression, supreme low-speed agility, and uncompromised high-speed stability.

Available in 2WD & 4WD Configs
Joints Structure
Ultra-Low Maintenance
0
Cast Components
100% Billet / Forged
4-Wheel
Independent Inter-Free
Suspension
0 Failure
Forged Chromoly
Axle & Kingpin

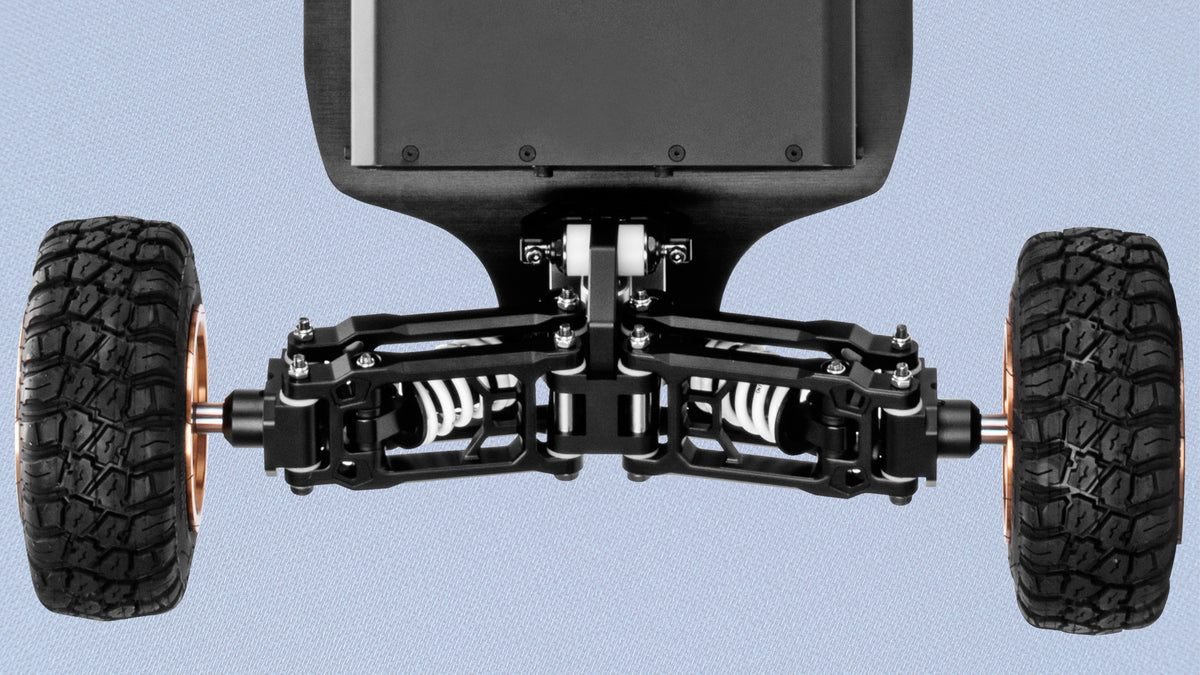

THE DETAILS — independent arms articulate without cross-wheel interference

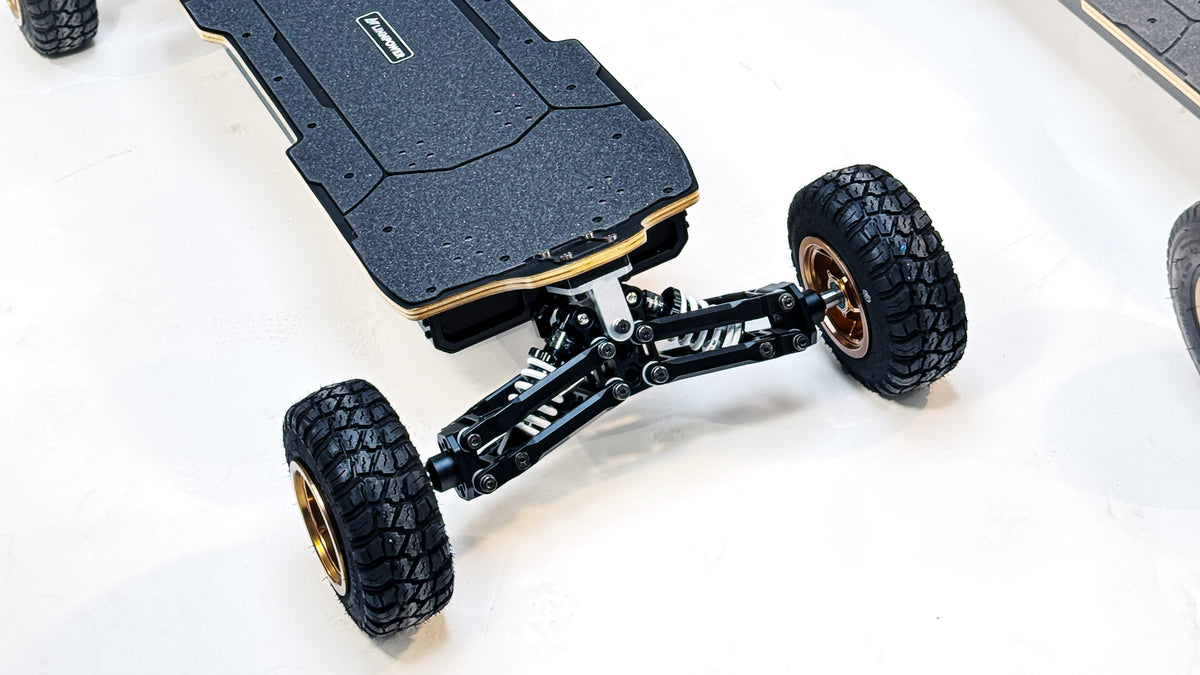

RaceAxis IS™ at rest — bushings unloaded, pure steering geometry
At Rest THE DETAILS

Drag to compare · Click to enlarge

⚖️
Decoupled Weight & Steering Control
Bushings no longer bear rider weight, serving solely to control steering resistance. Ensures predictable, linear compression and high-angle lean while boosting low-speed agility and high-speed stability.
Pure Steering Geometry
🏎️
4-Wheel Independent & Forged 5-Axis CNC Arms
Independent four-wheel suspension prevents cross-wheel interference for a smoother ride. Control arms are forged from high-performance aluminum and 5-axis CNC machined with hard anodized finishing.
Zero-Interference Ride
🛡️
Chromoly Steel Axles & Full Bearing Motion
Forged Chromoly steel axles and kingpins boast a zero-failure record under extreme impacts. All pivot points feature full bearing actuation with integrated friction-decoupling technology.
Zero-Casting Reliability

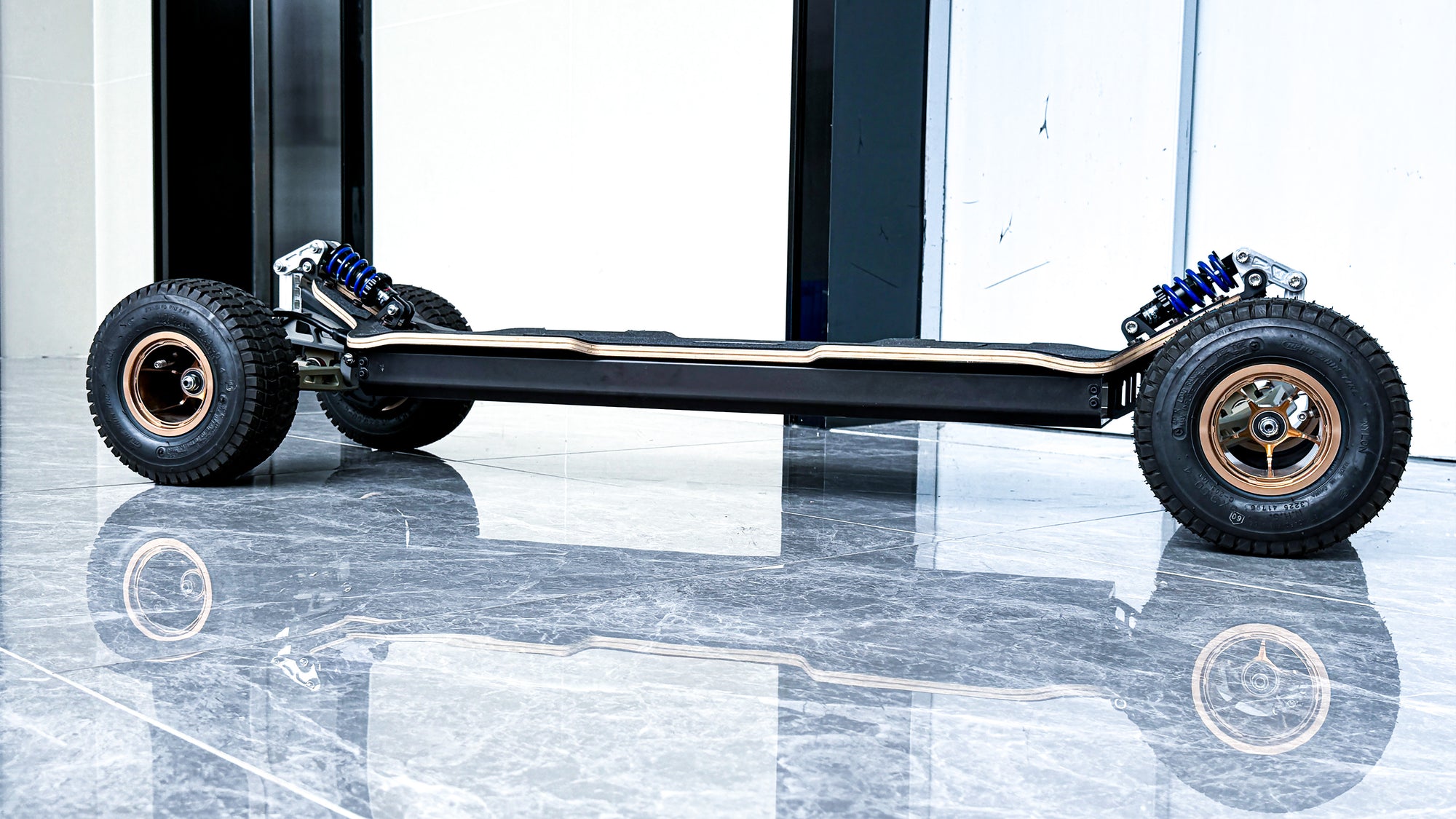

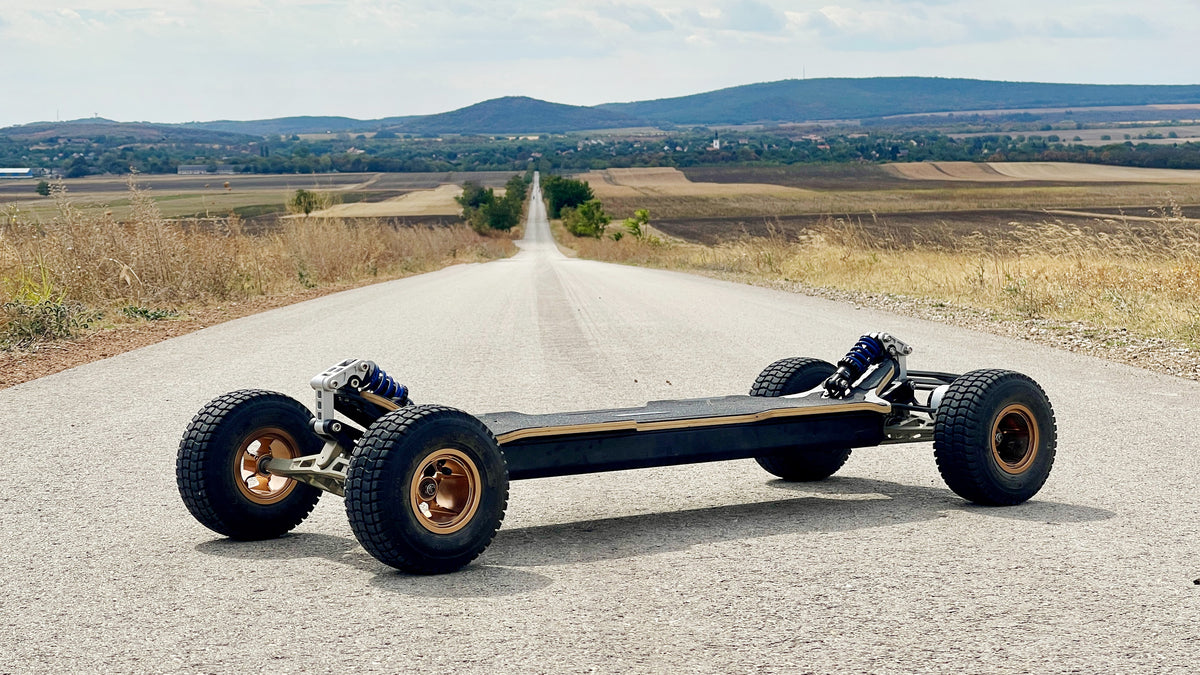

Energy Storage
2916
Watt-Hours. Built for Endless Exploration.

The OVERLAND battery platform represents the next generation of high-voltage electric skateboard energy systems. Featuring an 18S architecture and up to 2916Wh capacity, it delivers extended range, consistent power delivery, and reliable performance for demanding long-distance rides.

High Range
18S · 9P · Samsung 50S
Capacity 2916 Wh
Voltage 75.6V (18S)
Range 145km+*
Ideal For Power & Control
Configuration 2WD
High Torque
14S · 9P · Samsung 50S
Capacity 2268 Wh
Voltage 58.8V (14S)
Range 80-90km
Ideal For Grip & Stability
Configuration 4WD
🌊
IP67 Fully Potted Battery Protection
The entire battery pack is encapsulated with a specialized thermally conductive resin, providing enhanced resistance against moisture ingress, vibration, and mechanical shock. The potting material also improves thermal transfer, helping maintain stable performance during sustained high-load operation.
🛡️
Solid Aluminum Battery Enclosure
A precision aluminum alloy enclosure provides excellent structural rigidity, efficient heat management, and long-term durability. The wear-resistant surface finish helps protect the battery system through years of demanding real-world use.
🔋
Extreme Discharge Capability
Built with Samsung 50S cells in 18S9P and 14S9P configurations, the OVERLAND battery system supports up to 405A peak discharge and 225A continuous current, delivering consistent power output and stable performance across demanding riding conditions.

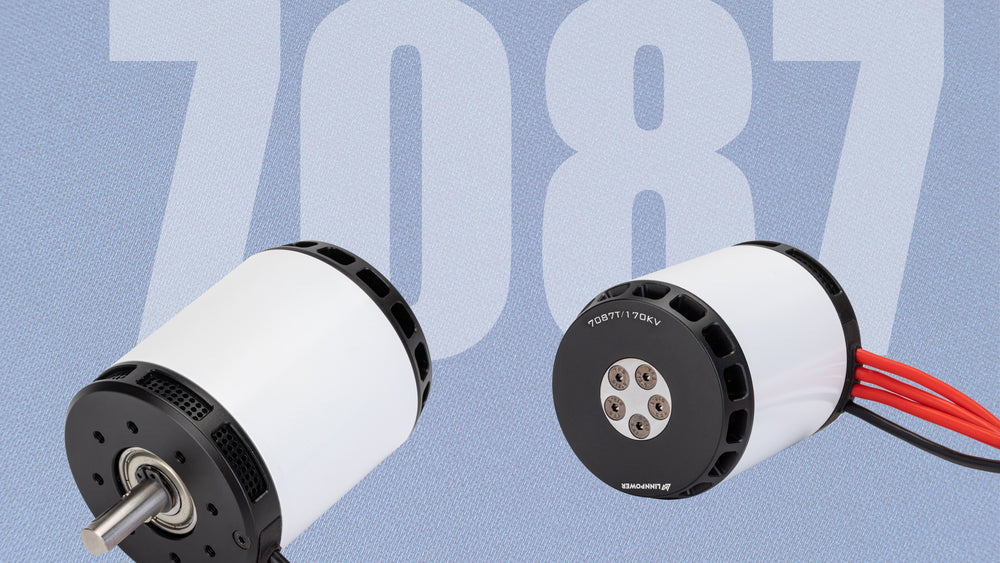

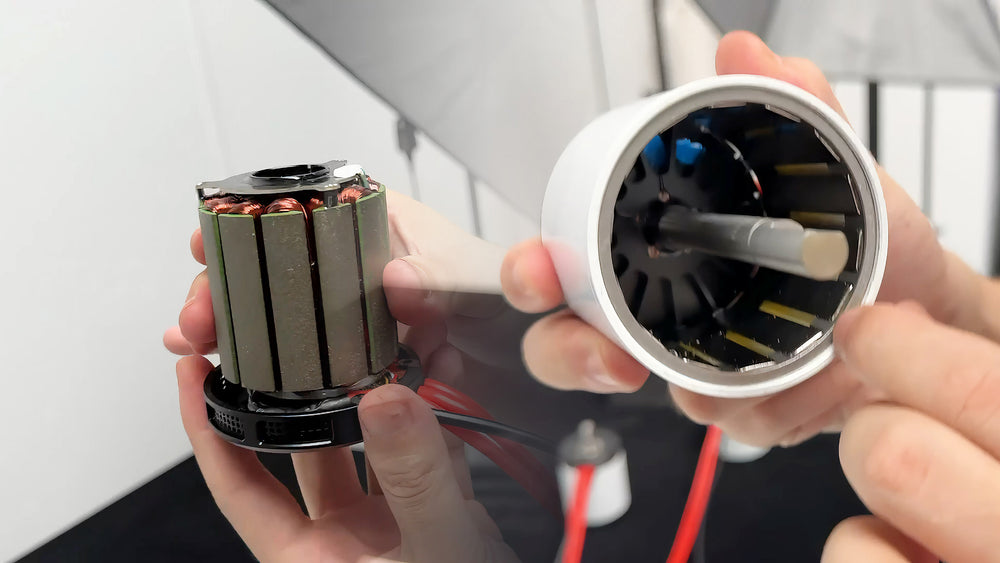

HIGH-PERFORMANCE MOTOR SYSTEM

Two Motor Configurations.
Built for Sustained Power Delivery.

Developed for Linnpower’s high-performance platforms, these motors have been proven on THE ONE and further optimized for the OVERLAND’s higher weight, larger battery system, and all-terrain demands. Delivering high torque output, thermal stability, and consistent power under continuous load, they provide the strength and control needed for long-distance rides across pavement, gravel, and changing terrain.

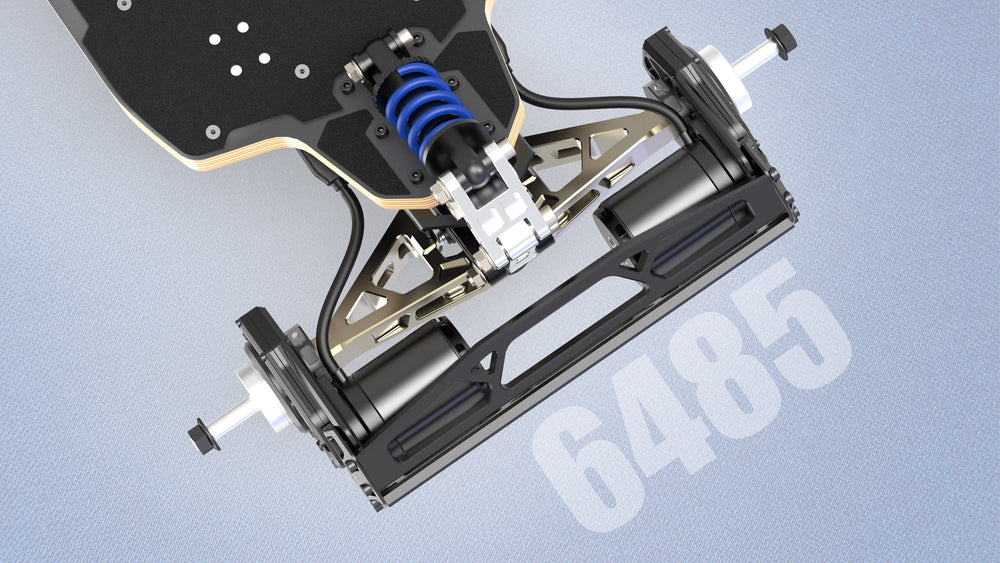

6485 * 4
4WD
Motor Size 64mm × 85mm
Application High Torque / Traction
Silicon Steel Kawasaki 0.2mm Hi-Perf
Magnets N45SH High-Temp
7087 * 2
2WD
Motor Size 70mm × 87mm
Application Precision / Speed
Silicon Steel Kawasaki 0.2mm Hi-Perf
Magnets N45SH High-Temp
🌀
10,000 RPM Dynamically Balanced
Each rotor is dynamically balanced at 10,000 RPM to minimize vibration and extend bearing life.
Vibration Free
🔩
5-Bolt Flange Mount
Industry-standard 5-bolt pattern ensures compatibility with the V5.1 gearbox and simplifies field service.
Field Serviceable
🌡️
N45SH High-Temp Magnets
N45SH grade retains magnetic properties up to 150°C — critical for sustained high-power output.
150°C Rated

Powertrain Technology

Custom-Built FOC ESC

18S 160A × 1 & 14S 90A × 2

18S Single-Controller System
18S
Battery Voltage
160A
Continuous Current
12kW
Peak Output
1×
Controller Count

High-Voltage Architecture

The 18S battery configuration operates at elevated system voltage, reducing resistive losses and improving efficiency during sustained cruising.

Field-Oriented Control

A true FOC control system enables smooth motor operation and precise torque delivery across the full RPM range, from launch to high-speed riding.

Long-Range Optimized

Every watt is optimized for distance. The 2WD system is tuned for efficiency to maximize real-world range while maintaining consistent usable power output.

Rider-Tuned Performance

Real-world validate. The 2WD OVERLAND consistently outperforms with higher advertised specs when it comes to usable, sustained power.

14S Dual-Controller System
14S
Battery Voltage
90A
Current Per Controller
2×
FOC Controllers
180A
Total System Current

Independent Dual FOC

Two independent 14S 90A FOC controllers drive the front and rear motors separately, enabling torque vectoring and real-time traction management across varying terrain conditions.

High Torque Output

Combined output from four motors delivers strong and consistent torque, providing reliable climbing capability and traction in loose or technical terrain.

Precision Traction Control

Each controller independently regulates its motor output, allowing real-time traction correction to reduce wheel slip and optimize power delivery where grip is available.

Thermal-Distributed Design

A dual-controller architecture distributes heat generation across two units, improving thermal stability and reducing the risk of performance limitation during sustained high-load riding.

Real-world performance guarantee. Specifications define potential. Real-world performance defines experience. OVERLAND translates system capability into consistent torque delivery and usable power across real terrain conditions.

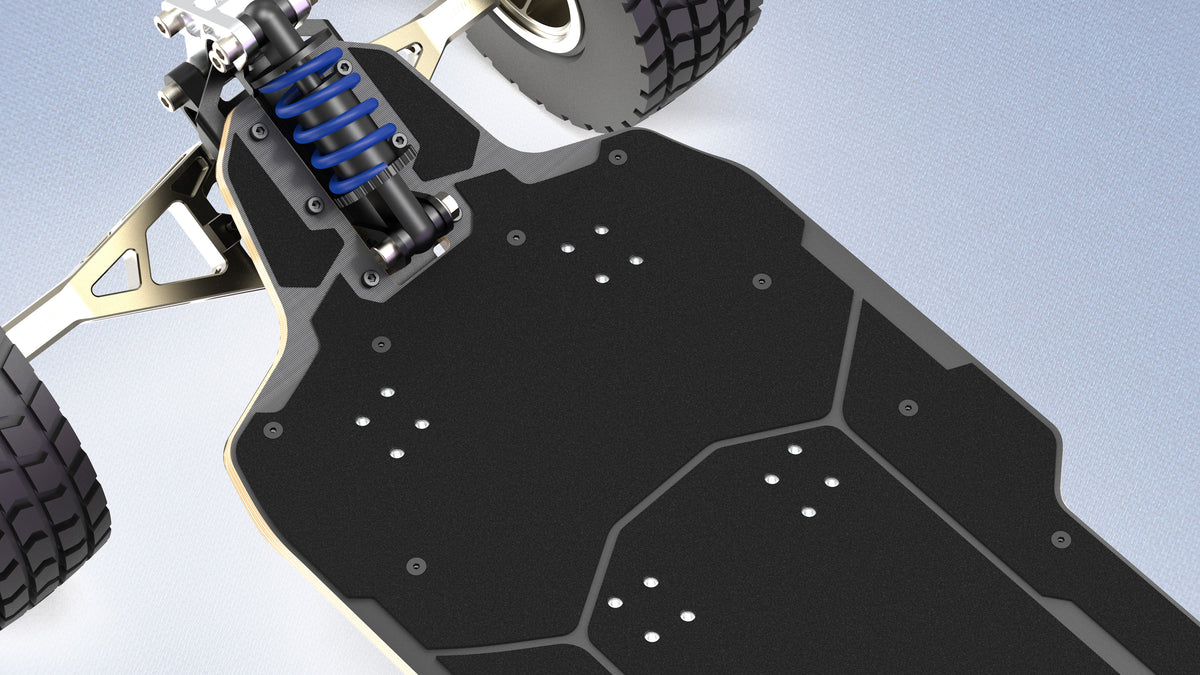

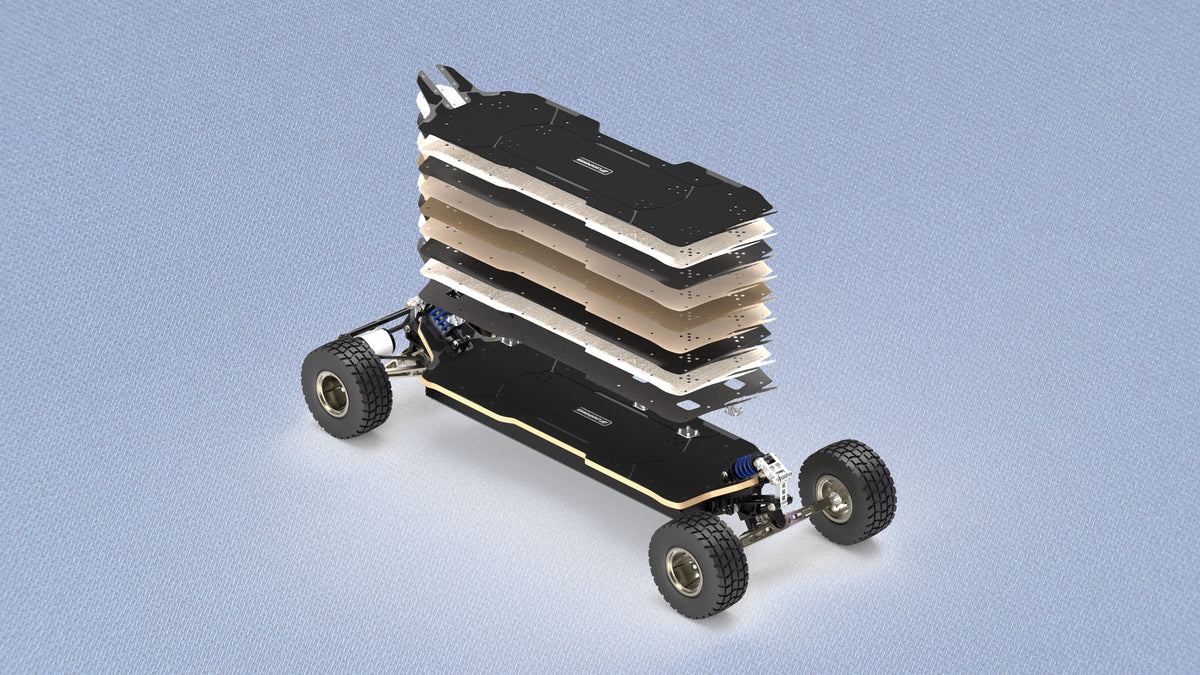

Patented Binding-Ready Deck.
Built on Proven DNA.

Built on the proven EVO MK-1 platform and refined for OVERLAND’s mission, this extended deck architecture delivers maximum stability, precise control, and long-distance confidence. Its extended 104 × 31 cm platform provides a more planted stance for high-speed riding, while the patented binding-ready structure enables clean, drill-free installation without compromising deck strength or structural integrity.

🛹
Patented Binding-Ready Structure
The patented binding-ready structure features pre-installed threaded inserts, allowing bindings to be mounted cleanly without drilling — preserving deck integrity while providing greater setup flexibility.
Drill-Free Mounting
👣
Re-Contoured Footbed Geometry
The updated curvature and concave profile create an ergonomic foot pocket that helps maintain a secure stance, improving control and reducing fatigue during long-distance rides and varied terrain conditions.
Long Locked-In Stance
🏂
Snowboard-inspired hybrid core
Constructed using snowboard-inspired techniques, the deck combines maple, bamboo, and composite layers to achieve high torsional rigidity and structural stability, delivering precise control and consistent handling at speed. Dual wear-resistant layers on the top and bottom surfaces provide additional protection against debris and daily use, ensuring long-term durability in real-world conditions.
Dual-Layer Protection
Power Transfer

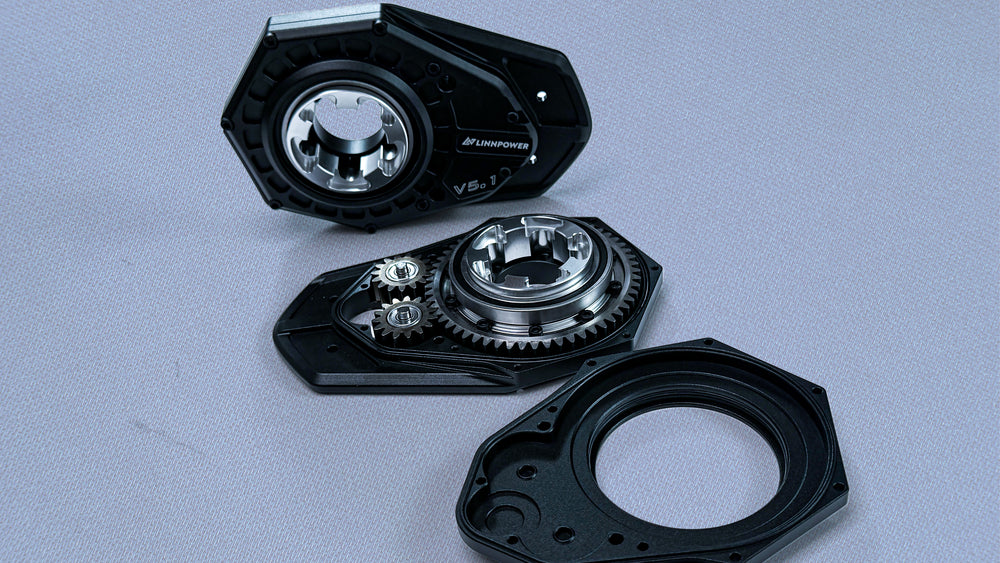

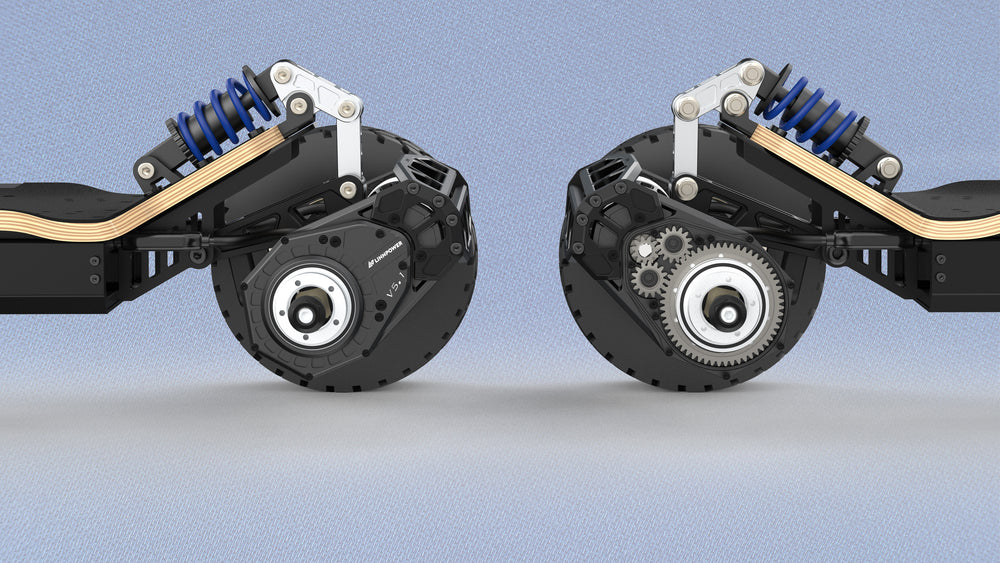

V5.1 Gearbox.
470% Stronger.

The all-new V5.1 is a ground-up engineering project designed to match the OVERLAND high-torque delivery.

V5.1 Gearbox (OVERLAND) +470% vs. V4.3
V4.3 AT / MT Industry Gold Standard

Proven Foundation: While the V5.1 establishes a new level of structural strength, our V4.3 AT/MT Gearbox remains a proven platform with an extensive real-world track record. Known for its durability and long-term reliability, the V4.3 AT/MT continues to power thousands of high-mileage boards across demanding riding conditions worldwide.

⚙️
4-Gear Architecture
Four precision-machined alloy steel gears distribute torque evenly across the drivetrain.
Hardened Metal
🛡️
5 Independent Seals
Five-layer sealing system keeps out water, dust, and mud — built for all-weather exploration.
All-Weather Rated
🔩
CNC Urethane Buffer
CNC-machined Buffer absorbs impact shocks, extending gear life under extreme load.
Impact Absorbing

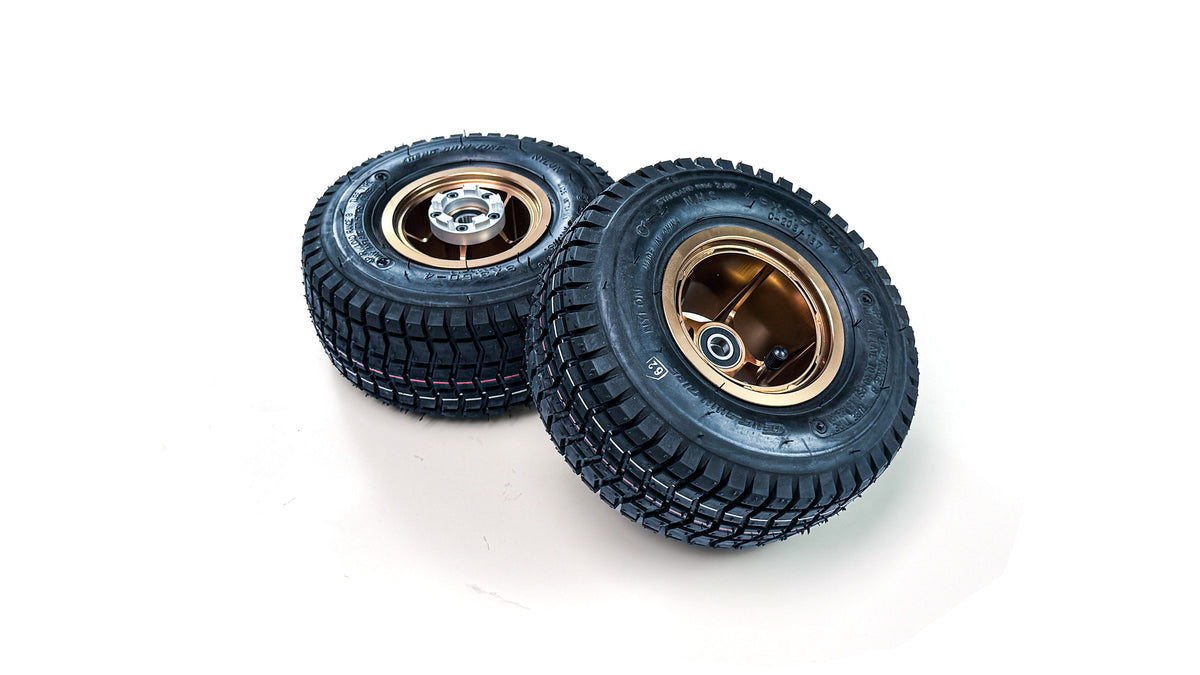

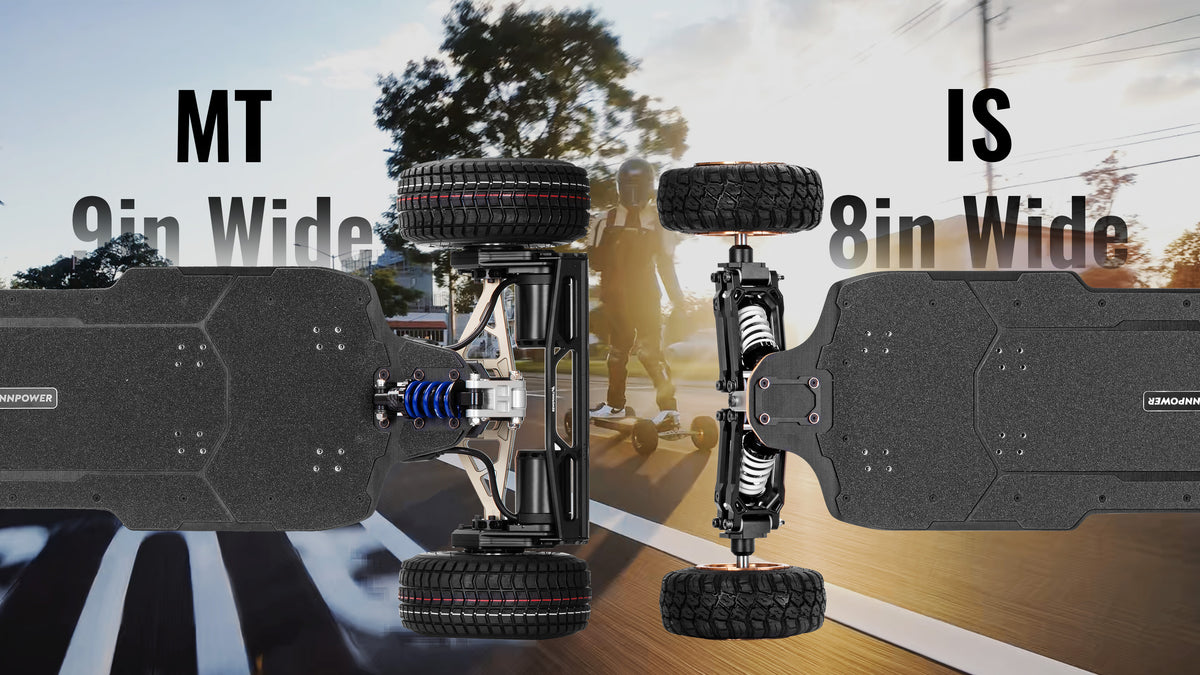

NEXT Super Wide XL
More Grip. More Stability.

NEXT Super Wide XL Quick-Release Hub

The OVERLAND is paired with LINNPOWER NEXT XL 112×86mm quick-release rims.
Tested compatibility includes Linnpower 190×70, 200*75 tires, as well as 200×70 and 200×80 options from other brands — offering greater flexibility for different riding preferences and terrain setups.

220 × 89 mm MT MODEL (9" OFF-ROAD)
200 × 75 mm IS MODEL (8" WIDE OFF-ROAD)
112 × 86 mm RIM DIMENSIONS
QR Tech QUICK-RELEASE HUB

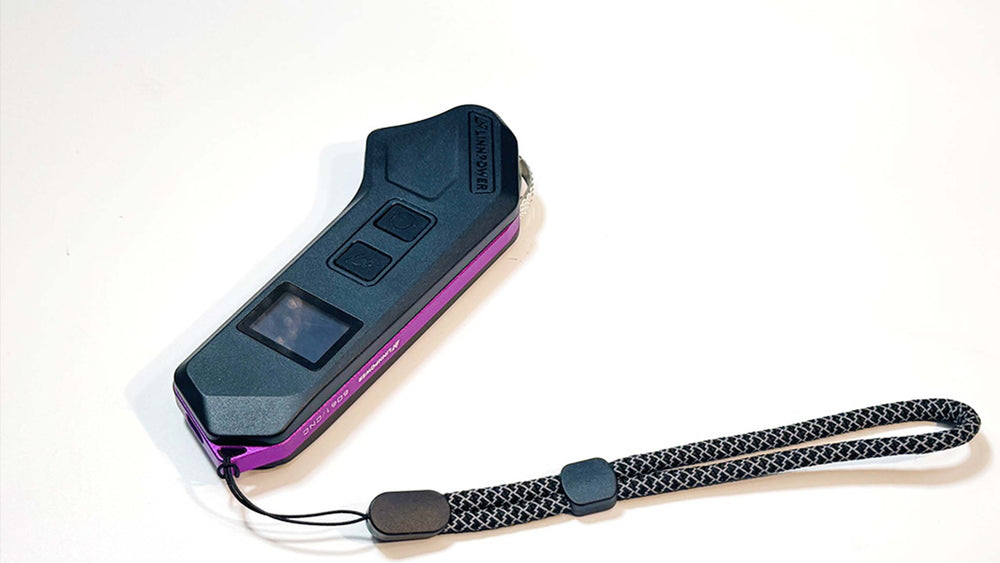

LINNPOWER Customized Remote

The remote is your primary connection to the board — it should feel as refined as the ride itself. Our custom remote is engineered for greater control precision, improved ergonomics, and enhanced durability compared to the standard version.

🎮
Remote Frame | CNC Aluminum
The remote frame is CNC-machined from solid aluminum billet, eliminating the flimsy feel of typical plastic controllers. Designed to deliver high-fidelity connection to your board.
⚙️
Dual-Bearing CNC Thumb Wheel
The scroll wheel is also CNC-machined from 6061-T651 aluminum and secured with double bearings for precise, smooth control.

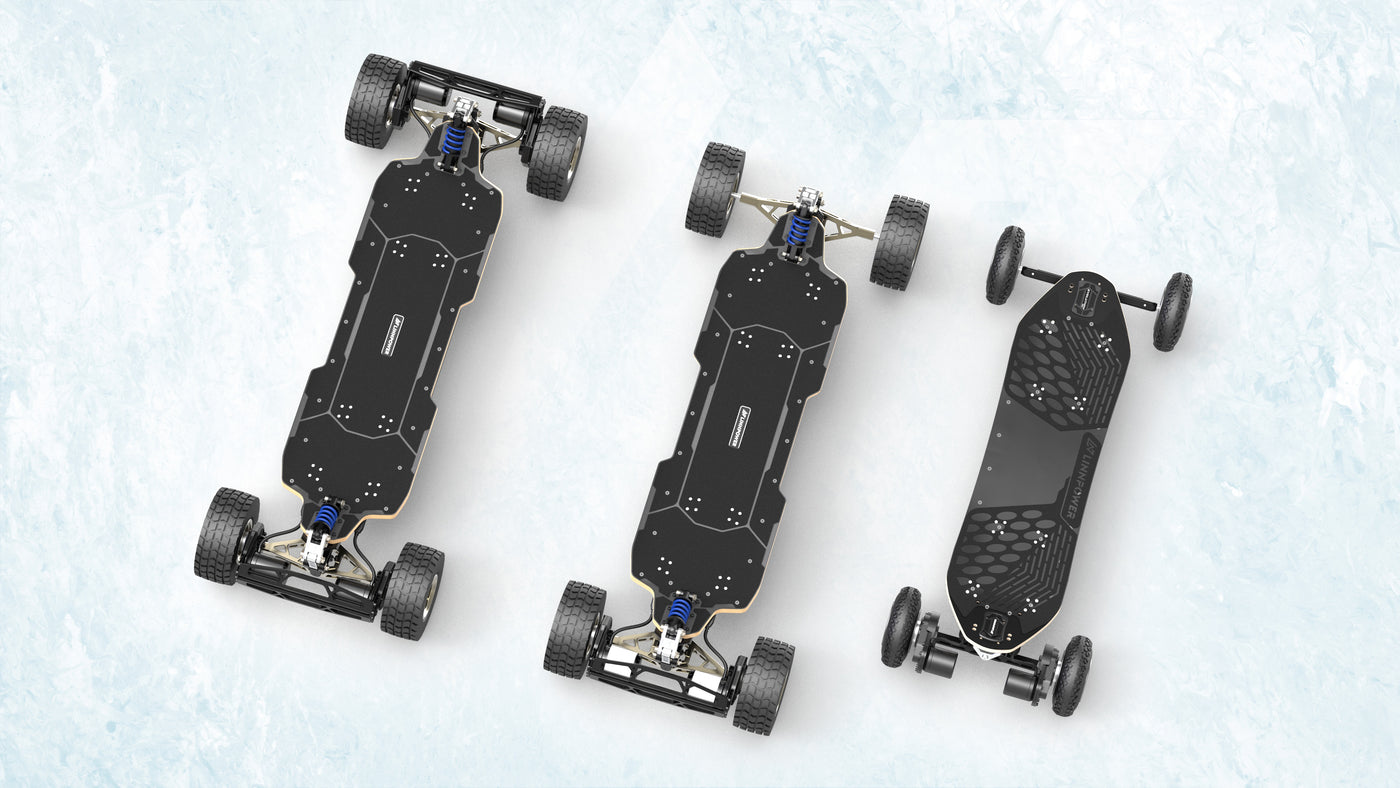

Order Now

Ready to Ride Further?

Float over rough roads. Conquer changing terrain. Explore without limits. The ultimate grand touring board engineered for confidence, comfort, and control on every adventure.

Full Specifications

Technical Specs

Every number. Every component. Everything you need to know.

RACEAXIS MT™ MULTI-LINK — STREET & HIGH-SPEED CONTROL
RACEAXIS IS™ INDEPENDENT — ALL-TERRAIN & MAXIMUM ARTICULATION
OVERLAND MT 2WD MT 4WD IS 2WD IS 4WD
Performance
RANGE145 km / 90 mi 90 km / 55 mi 145 km / 90 mi 90 km / 55 mi
TOP SPEED85 km/h | 52.8 mph 65 km/h | 40.3 mph 75 km/h | 46.6 mph 57 km/h | 35.4 mph
HILLS60% 70% 60% 70%
MAX LOAD200 kg | 440 lbs 200 kg | 440 lbs 200 kg | 440 lbs 200 kg | 440 lbs
Drivetrain
MOTORCustom LINNPOWER 7087 × 2
12,000 W
Custom LINNPOWER 6485 × 4
10,000 W
Custom LINNPOWER 7087 × 2
12,000 W
Custom LINNPOWER 6485 × 4
10,000 W
ESCLinnpower Customized 18S | 160A bus / 240A phase Linnpower Customized 14S × 2 | 90A bus / 150A phase Linnpower Customized 18S | 160A bus / 240A phase Linnpower Customized 14S × 2 | 90A bus / 150A phase
GEAR RATIO5.1 | 56 : 11 5.1 | 56 : 11 5.1 | 56 : 11 5.1 | 56 : 11
Battery & Charging
BATTERY18S9P Samsung 50S
2,916 Wh
14S9P Samsung 50S
2,268 Wh
18S9P Samsung 50S
2,916 Wh
14S9P Samsung 50S
2,268 Wh
BMSCustom-designed with TOLL-package MOSFETs — smaller footprint, higher power handling, lower heat generation Custom-designed with TOLL-package MOSFETs — smaller footprint, higher power handling, lower heat generation Custom-designed with TOLL-package MOSFETs — smaller footprint, higher power handling, lower heat generation Custom-designed with TOLL-package MOSFETs — smaller footprint, higher power handling, lower heat generation
BATTERY PACKModular, fully waterproof potting Modular, fully waterproof potting Modular, fully waterproof potting Modular, fully waterproof potting
CHARGE TIME6 h / 7.5A (Stock)
3 h / 15A (Optional)
4.5 h / 10A (Stock Fast)
2.3 h / 20A (Optional)
6 h / 7.5A (Stock)
3 h / 15A (Optional)
4.5 h / 10A (Stock Fast)
2.3 h / 20A (Optional)
BRAKINGRegenerative, adjustable 10 – 100% Regenerative, adjustable 10 – 100% Regenerative, adjustable 10 – 100% Regenerative, adjustable 10 – 100%
Hardware & Build
WHEELS220 × 89 mm | 9 in off-road tread 220 × 89 mm | 9 in off-road tread 200 × 75 mm | 8 in Wide off-road tread 200 × 75 mm | 8 in Wide off-road tread
TRUCK OPTIONSRaceAxis MT™ Multi-Link — Street & High-Speed Control RaceAxis MT™ Multi-Link — Street & High-Speed Control RaceAxis IS™ Independent — Off-Road & All-Terrain Comfort RaceAxis IS™ Independent — Off-Road & All-Terrain Comfort
TRUCK MATERIALRaceAxis MT™: 7075-T651 5-axis CNC aluminum hangers, forged chromoly steel 12 mm axles & kingpins. RaceAxis MT™: 7075-T651 5-axis CNC aluminum hangers, forged chromoly steel 12 mm axles & kingpins. RaceAxis IS™: High-performance forged & 5-axis CNC aluminum swingarms (zero cast components), durable hard anodized finish, forged chromoly steel axles. RaceAxis IS™: High-performance forged & 5-axis CNC aluminum swingarms (zero cast components), durable hard anodized finish, forged chromoly steel axles.
BEARINGS6001 bearings 6001 bearings 6001 bearings 6001 bearings
BUSHING95A (Customizable / 3rd-Party Compatible) 95A (Customizable / 3rd-Party Compatible) 95A (Customizable / 3rd-Party Compatible) 95A (Customizable / 3rd-Party Compatible)
REMOTELP×JECNN — CNC aluminum alloy frame, CNC scroll wheel, double-bearing fixation LP×JECNN — CNC aluminum alloy frame, CNC scroll wheel, double-bearing fixation LP×JECNN — CNC aluminum alloy frame, CNC scroll wheel, double-bearing fixation LP×JECNN — CNC aluminum alloy frame, CNC scroll wheel, double-bearing fixation
Deck & Dimensions
BOARD SIZE1350 × 560 × 260 mm | 53.1 × 22 × 10.2 in 1350 × 560 × 260 mm | 53.1 × 22 × 10.2 in 1280 × 560 × 240 mm | 50.4 × 22 × 9.4 in 1280 × 560 × 240 mm | 50.4 × 22 × 9.4 in

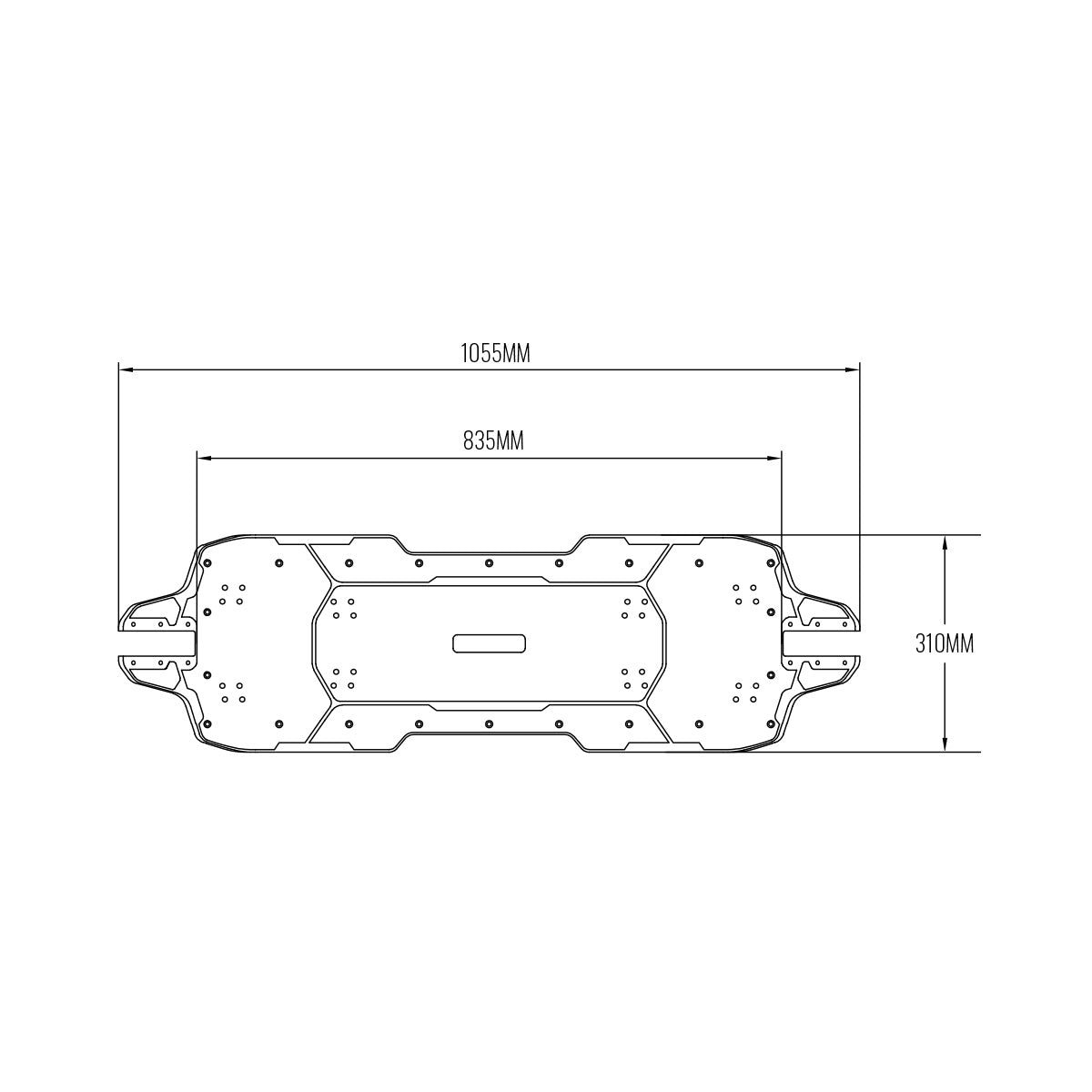

DECK SIZE104.5 × 31 cm | 41.1 × 12.2 in 104.5 × 31 cm | 41.1 × 12.2 in 104.5 × 31 cm | 41.1 × 12.2 in 104.5 × 31 cm | 41.1 × 12.2 in
WHEELBASE1125 mm | 44.29 in 1125 mm | 44.29 in 1060 mm | 41.73 in 1060 mm | 41.73 in
DECK MATERIALSnowboard manufacturing process — reinforced with wear-resistant layers & custom composites Snowboard manufacturing process — reinforced with wear-resistant layers & custom composites Snowboard manufacturing process — reinforced with wear-resistant layers & custom composites Snowboard manufacturing process — reinforced with wear-resistant layers & custom composites
GRIP TAPEOS780 high-quality padded grip tape OS780 high-quality padded grip tape OS780 high-quality padded grip tape OS780 high-quality padded grip tape
Extras
WEIGHT40 kg | 88 lbs 40.5 kg | 90.3 lbs 40 kg | 88 lbs 40.5 kg | 90.3 lbs
WATERPROOFIPX7 IPX7 IPX7 IPX7
BINDINGOptional — patented embedded nut tech for installation Optional — patented embedded nut tech for installation Optional — patented embedded nut tech for installation Optional — patented embedded nut tech for installation

* Tested by a 154 lbs / 70 kg rider at a constant speed of around 25 km/h | 15 mph, on flat terrain with a gentle breeze at 30°C / 86°F.
