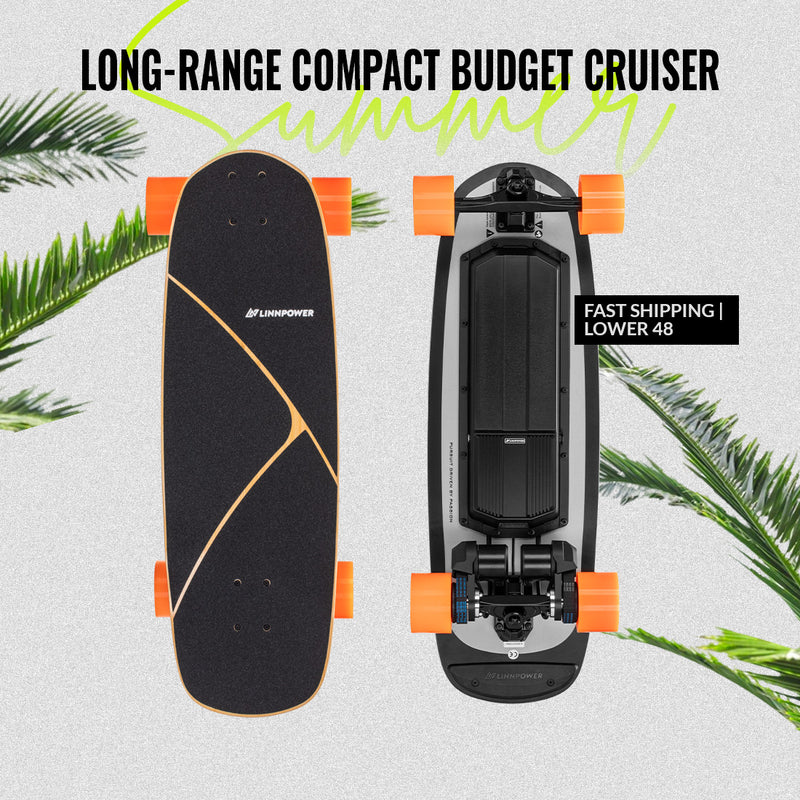

LINNPOWER Mini 5 Electric Shortboard
- 12s • 50.4V • 388Wh 21700 battery
- ESC: Customized Hobbywing FOC ESC with APP
- Wheels: 85mm Boosted urethane wheels
- Drive: Dual Hobbywing 5250 belt drive
- Top speed: 46 km/h | 28.5 mph
- Range: Up to 24.8 miles | 40 km*
*Range varies with rider weight, terrain, riding style, and environmental conditions.
Quantity:
Shipping
Note
| LINNPOWER | MINI 5 |
| WHEELS | Boosted 85*59mm, 78a |
| RANGE | Up to 35-40km | 21.7-24.8miles |
| TOP SPEED | 46kmh | 28.5mph |
| BATTERY | 12S2P 45E, 388Wh with secure, high-quality construction using silicone bonding and nickel welding |
| BATTERY ENCLOSURE | Made from high-strength polymer, paired with LINNPOWER's custom-designed reverse-mounted nut structure and sealing rings to enhance waterproofing |
| MOTOR | 5250*2, 1200W, 170kv |
| ESC | Hobbywing FOC ESC with App & Smart on/off |
| REMOTE | Hobbywig OLED remote |
| Board Size | 797*288*165mm | 31.4*11.34*6.48inches |
| DECK MATERIAL | Bamboo & Hard Maple wrapped in fiberglass and epoxy for exceptional strength and durability |
| DECK SIZE | 80*25cm | 31.5 *10 inches |
| DECK TYPE | A slightly concave deck with flared wheel wells with extended kicktail |
| TRUCK | Gravity Cast 8-inch, 45° |
| GEAR RATIO | 14:36, 2.6 |
| WHEEL BASE | 54.7cm | 21.5 inches |
| WEIGHT | 8.7kg | 19.18lbs |
| MAX LOAD | 150kg | 330lbs |
| CHARGE | 6h / 1.5A |
| HILLS | 25% |
| BREAKING | Regenerative Braking, adjustable 10-100% |
| BEARING | 608 bearings for the wheels, 6903 bearings for the pulley |
| BUSHING | 95a | Compatible with Riptide bushings (25×16mm) and washers |
| Light Kit | Integrated Tail Light, controlled by remote. |
| * Tested by a 154lbs/70kg rider at a constant speed of around 25 km/h | 15 mph, on flat terrain with gentle breeze at a temperature of 30℃/ 86°F. | |
The LINNPOWER MINI 5 is the best-in-class belt-drive shortboard, delivering high performance and reliability at an accessible price. It brings together suppliers and today’s market needs, making it one of the best entry-level choices available. It offers the longest range in its class, smooth power, and exceptional durability—all for under $500.
Key Features of the MINI 5 Electric Skateboard:
- Longest Range in Its Class – 388Wh battery with up to 24.8 miles per charge. Built with high-performance 21700 lithium cells and rigorous quality control.
- Smooth & Powerful Ride – Features a Hobbywing ESC and motor system for silky acceleration, strong braking, and reliable torque.
- Authentic Boosted Boards Wheels – 85×59mm 78A urethane wheels from the original Boosted production line. Still among the best urethane wheels available.
- Lifetime Truck Warranty – If any truck breaks under normal use, we replace it—for life.
Why Choose the MINI 5?
It delivers components and manufacturing quality typically found on $800+ mini boards, at just $400 range. If you want a reliable, long-range shortboard that doesn’t compromise on ride quality, the MINI 5 is your best choice.
Ideal for commuters, students, and electric skateboard enthusiasts looking for excellent performance with entry-level price.
Model comparison
Viper vs MINI 5 — Quick guide to choosing the right Linnpower mini board
A concise, buyer-focused page to help you decide: prioritize fast-charging & performance (Viper) or extended range & value (MINI 5).
At a glance
Below are the core differences that matter for everyday riders. Use them to match a model to your needs — commuting distance, charging habits, or performance expectations.
| Model | Highlight | Best for |
| Viper | Forged & CNC trucks, 4.5A fast charging, 2000W power, Linnpower Customized Remote | Riders who value quick top-ups, nimble handling, and higher peak performance |
| MINI 5 | 388Wh battery, long-range, excellent value | Riders who all about distance and unbeatable value, the MINI 5 remains one of the most efficient and well-balanced choices in its class. |
LINNPOWER Mini 5 Electric Shortboard Package Includes:
LINNPOWER Mini 5 Complete Board;
Hobbywing OLED Remote;
T Tool;
H3 Hex Key;
H2.5 Hex Key;
50.4V Charger;
Remote Manual;
Quick Start Guide;
Re-Designed Deck for Enhanced Control
The LINNPOWER MINI 5 comes with the same deck of VIPER, the deck compares to standard Boosted boards with its extended kicktail for stability and control, plus a slightly concave design with flared wheel wells to prevent wheel bite, providing better control and a lower center of gravity for stable high-speed rides and agile low-speed maneuvers. While its cost is higher than some of other brands, it delivers better performance and durability.
* The top layer of the MINI 5 deck features a bamboo natural color.
Large-Capacity Battery 388Wh
Similar to standard industry designs but with a higher level of quality and attention to detail.
Extended Range: Built for riders needing long-distance performance with a more competive price;
Performance: 27A continuous discharge, offering solid power for long-range use (2S config); Secure Construction: Individually secured cells in dedicated holders; 704 silicone bonding + 0.2mm pure nickel welding; Rigorous Standards: Exceeds industry quality benchmarks for reliability;
The MINI 5 12S2P 21700 Li Battery 45E main advantage is offering the highest capacity in its price range, making it the top choice for riders seeking maximum range.
Hobbywing FOC ESC
Hobbywing FOC ESC with App. Equipped with a CNC-machined casing for improved heat dissipation, unlike casting, provides better heat dissipation and a higher-quality appearance. Considering the overall electrical configuration and reliability of the VIPER shortboard, the Hobbywing is the best choice. Its hardware is superior to other controllers in the same class, offering more solid and durable materials.
Hobbywing 5250 Motor*2
Hobbywing motors stand out in their class with smaller size, higher performance, and greater reliability at the same power level. For boards using a Hobbywing ESC, if the combined power is advertised as over 3500W, it means the specifications are overstated.
Heatsink - No Casting
For ESC housing and heatsink, while casting can offer a lower cost. But reliability is our top priority. CNC machining from 6061-T6 aluminum alloy with an anodized finish, unlike casting, provides better heat dissipation and a higher-quality appearance.
Gravity Casting 8in 45° RKP
The MINI 5 truck are made from A356.2 aluminum alloy using gravity casting, with CNC'd rear clamp and chromium-nickel alloy steel kingpin and axle. Its strength surpasses standard cast truck and follows similar manufacturing processes as Evolve Diablo series with Super Carve 2 truck hanger. The MINI 5 truck comes from the same supplier as these brands but with higher strength kingpin & truck axle than most similar boards.
OTHER FEATURES
Compatibility - Riptide Bushings
Designed to work with Riptide bushings(25×16) and washers for a more customizable ride feel.
Battery Enclosure
Made from high-strength polymer, paired with LINNPOWER's custom-designed reverse-mounted nut structure and sealing rings to enhance waterproofing.
Intergrated Tail Light
The Viper mini board comes standard with a tail light
integrated into the truck riser pad, protecting it from external damage. It
features high brightness for enhanced safety during nighttime riding.
