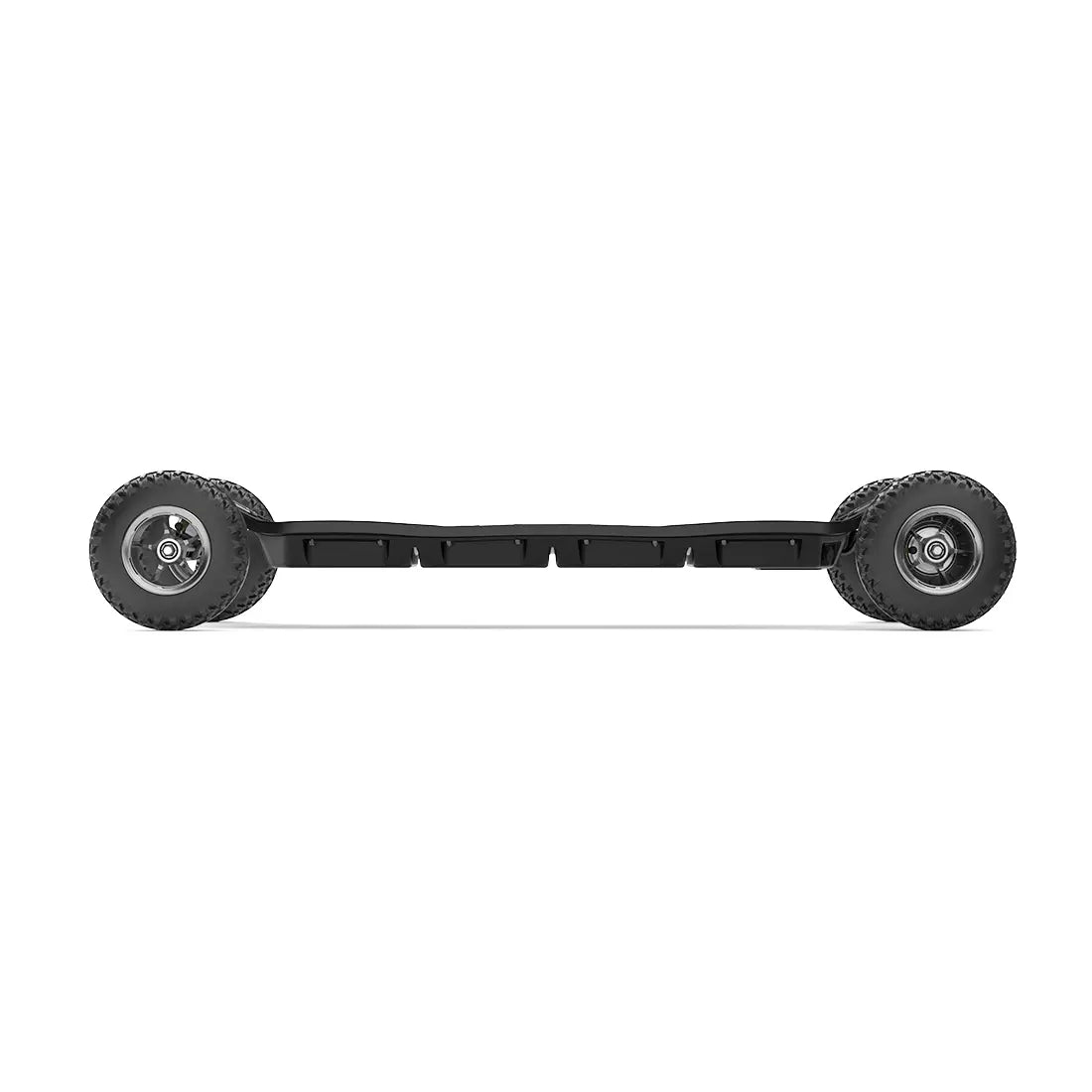

EVO MK-1
- The Most Structurally Safe Battery Pack;
- Entirely CNC Machined Channel Trucks, 7075 - T651 Heat Treated Hanger with 12mm truck axles from S136H;
- Integrated Bushing Structure Allows Precise Steering and Tight Turning Radius;
- 6061-t6 CNCed Quick Release Wide Hub, Swap Out Tires in Just 30s;
- Durable, Less Flexibility & Patented Binding Installlation Nut Structure Deck;
- 14S4P/14S3P Samsung 50s cell;
- Hobbywing 6370*2, 155kv;
- Hobbywing 14S ESC & App;
- Top Speed: 62km/h | 39 mph;
- Range: Up to 50 - 67km | 31 -41 miles;
Shipping
Really nice board. I like that it's not too aggressive but still has enough power to be fun. Easy to recommend for anyone, very good for beginners also because of the mellow nature of the board.
I was worried the wheel base was wide it wouldn't carve. It's not an issue at all this carves like a dream and feels very snowboard ish. I feel more safe with bigger wheels that I can go Off path or tour gravel now. It's opened up new areas to explore. This board is a beast at 60km speed too. Old board meepo Voyager. Happy happy 🤘
Ich liebe dieses Board!
Danke für die schnelle Lieferung.
Mit besten Grüßen aus Deutschland
Andrea
First off WOW the board is a work of art sexy and looks super high quality. The ride is so smooth and strong its has more power and speed than the average person will ever use. I love the MK! Pro i have street tires along with 8" off-road and use both setups often I am a Linnpower superfan and want to add the Viper and TBA street to my collection!
I recently got the EVO MK-1 PRO (gear drive) and I love the board. Range is outstanding and it took me some getting used to the handling and still working on that as it's just personal preference, just playing with bushings and what not. So far any question I have had they have responded fast and with sense of urge to help solve any problem. I highly recommend their products, weather it is just parts or complete boards!.

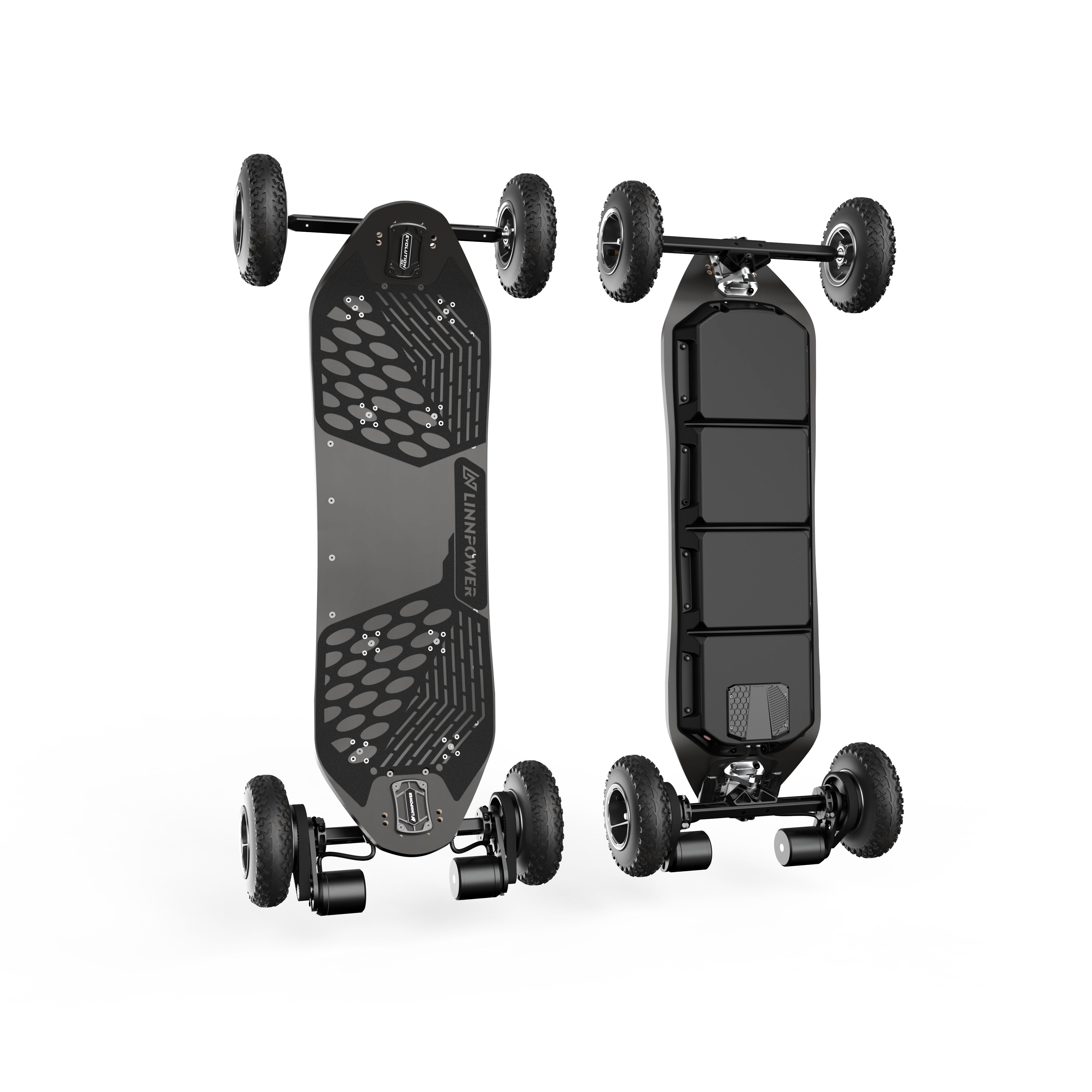

EVO MK-1 AT Board: Your Ultimate All-Terrain Companion.
Key Features:
- LINNPOWER FlexVolt Pack: A solid and reliable battery pack, leading the market in structural safety.
- Waterproof Bindings Installation: Enjoy worry-free rides with our patented technology.
- Durable Snowboard-Inspired Deck: Engineered for lasting performance and smooth rides on any terrain.

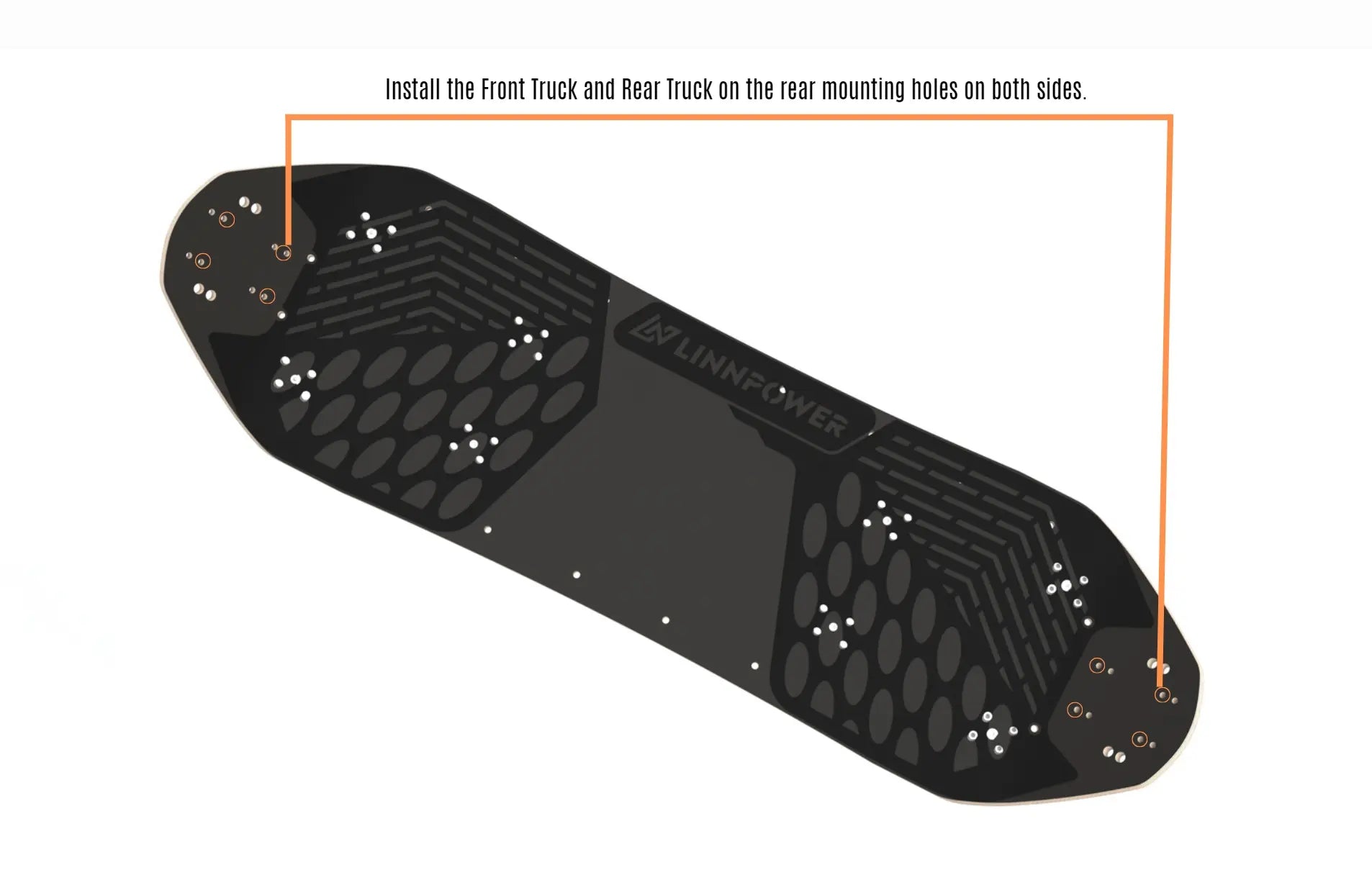

- Trampa Truck Mounting Hole Ready: Designed for seamless compatibility with your favorite trucks.
- LINNPOWER Customized Hobbywing Remote: The market's most reliable HB remote with a CNC machined aluminum alloy frame and durable silicone buttons.
- CNC Machined Channel Truck: Constructed with high-strength 7075-t651 aluminum and S136H steel axles for unwavering reliability.

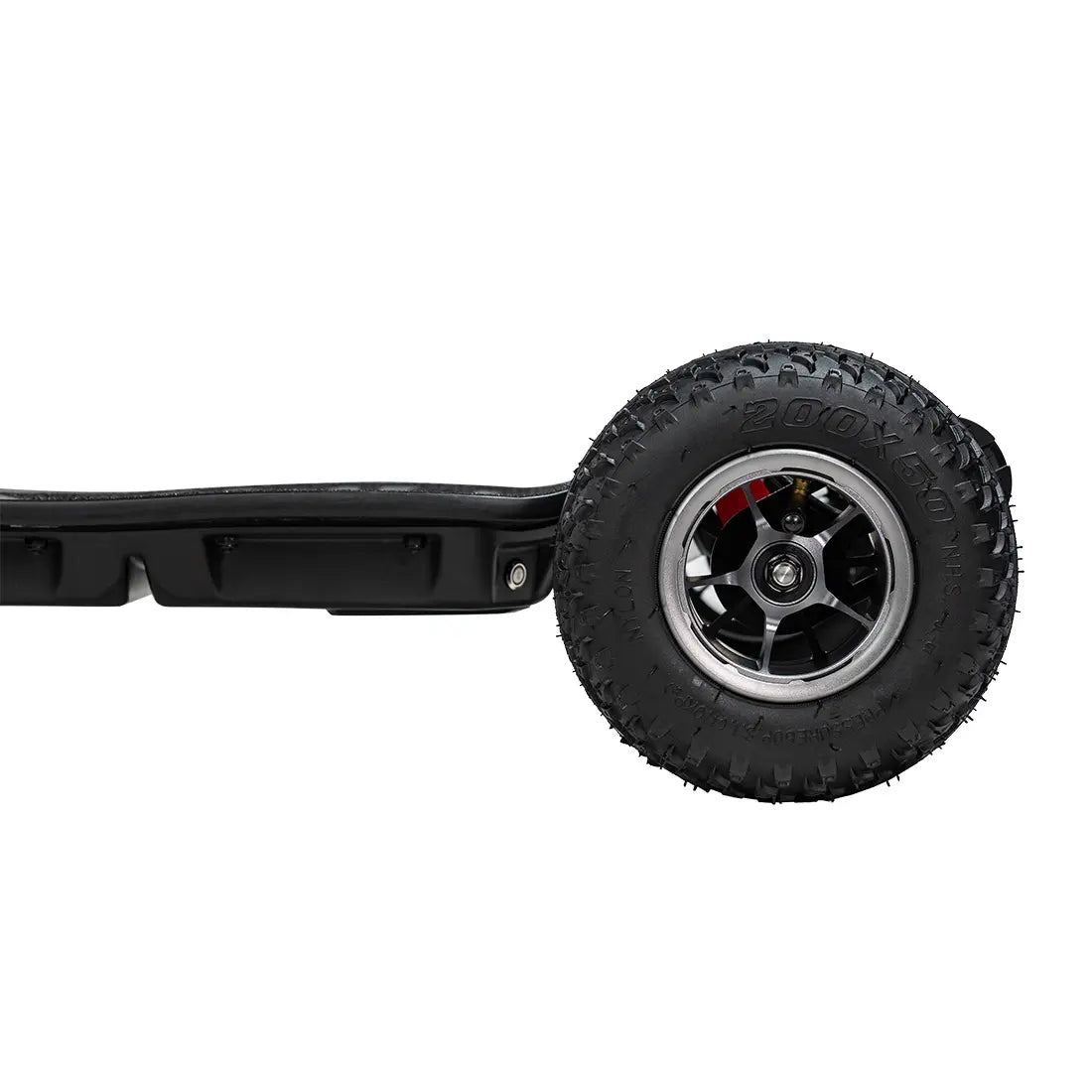

- Quick Release Hub: LINNPOWER's patented quick install & removal structure allows for easy bearing changes, compatible with various bearings and tire sizes up to 9 inches.

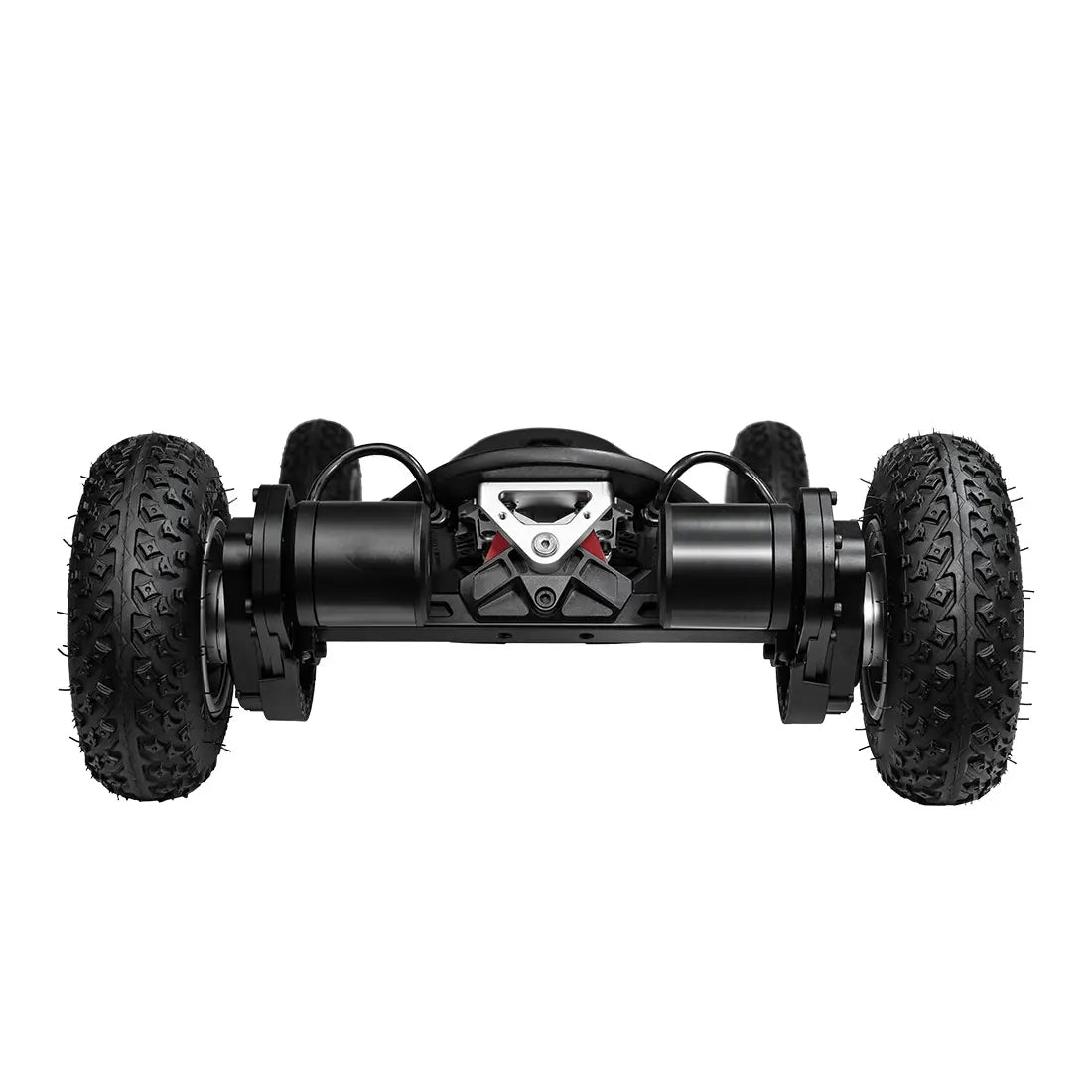

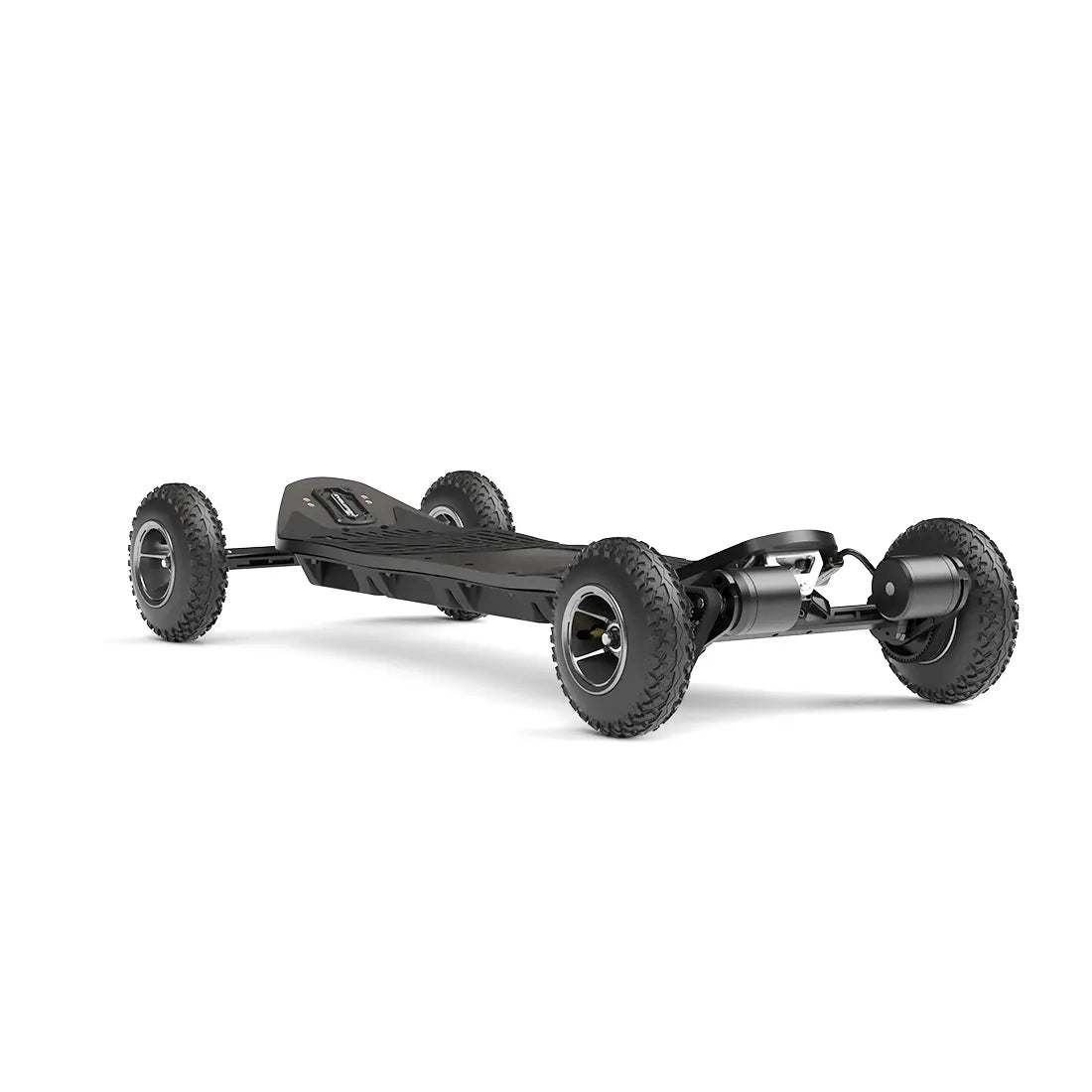

- V4.3 GearDrive: Our lightweight design features high torque handling and spur gears for efficiency and durability. Also available with a belt drive system.
- Powerful Electrics: Equipped with a customized 14s controller and 6370 motor from Hobbywing for high power and reliable performance.
Meet the EVO MK-1, Where Reliability and Innovation Meet Adventure!
| EVO MK-1 Lite | EVO MK-1 Pro | |
| WHEELS | 200mm (8 inch) Pneumatic Tire -
LINNPOWER CNC Quick Release Wide Hub with Patented Bearing Quick-remove Structure |
|
| RANGE | 20-25kmh: Up to 50km | 31 miles 30-35kmh: Up to 38km | 23.6 miles |
20-25kmh: Up to 67km | 41 miles; 30-35kmh: Up to 50km | 31.1 miles |
| TOP SPEED | 62km/h | 39 mph | 62km/h | 39 mph |
| BATTERY | 14S3P - 756WH - 15AH - Samsung 50S | 14S4P - 1008WH - 20AH - Samsung 50S |
| MOTOR | Hobbywing 6370*2, 155kv | |
| ESC | Hobbywing 9028 ESC & App | |
| REMOTE | LP*HBY Remote: CNC Aluminum Alloy Frame, and CNC Scroll Wheel, Double Bearing Fixation for Precise Control | |
| DECK MATERIAL | Snowboard Manufacturing Techniques. Reinforced with Wear-resistant Layers and Custom Composites for Durability | |
| DECK LENGTH | 96 cm | 38 inches * 27.8cm | 10.94 inches | |
| TRUCK | LINNPOWER Channel Truck, CNCed, 44.7cm | 17.9 inches, 12mm axles, 22*22 two-piece Caliber Clamp | |

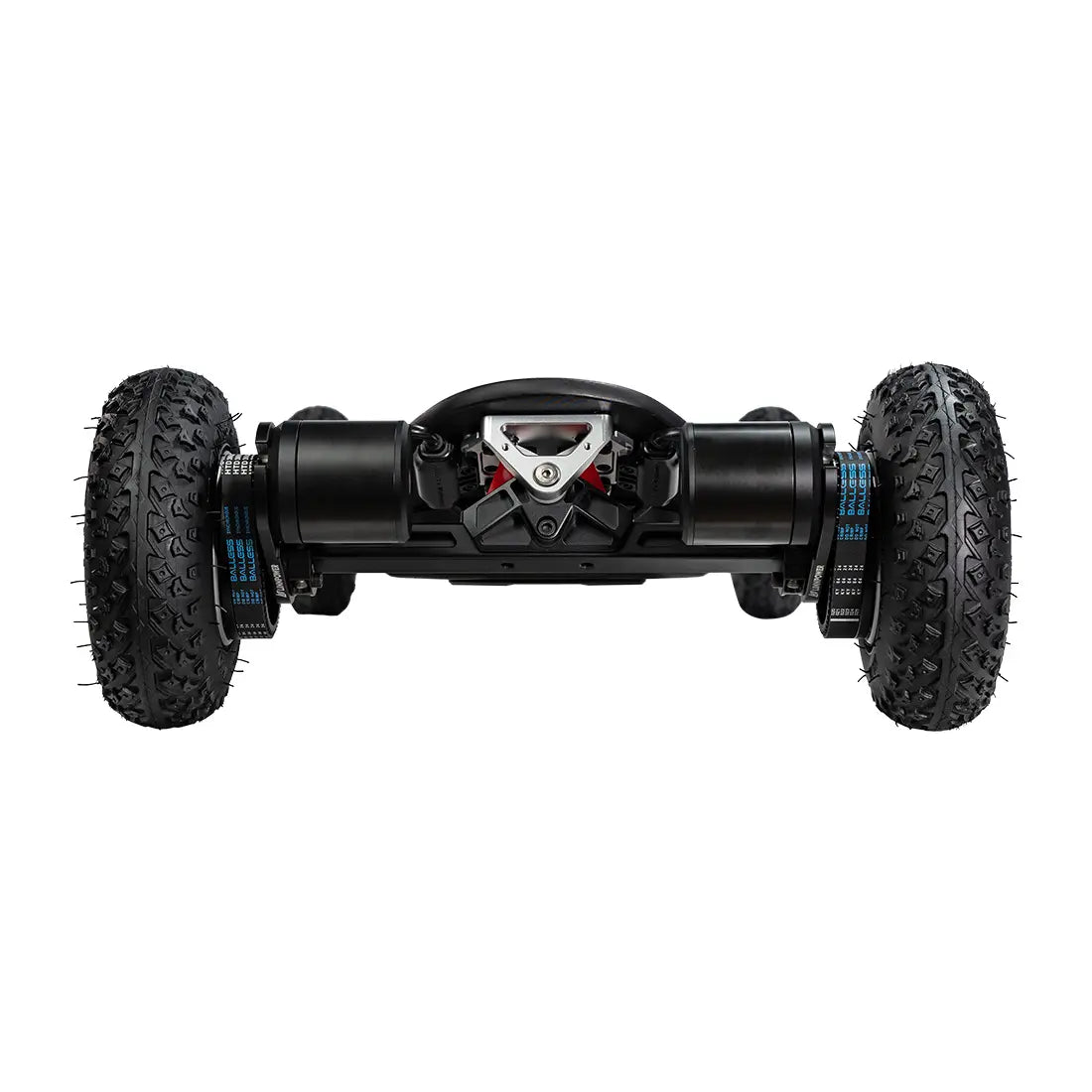

| GEAR RATIO | Belt Drive, 4.0 Ratio | Gear Drive, 4.3 Ratio |
| WHEEL BASE | 91.5 cm | 36.6 inches | |
| WEIGHT | 16.4kg | 36.2lb | 18.5 kg | 40.7 lb |
| MAX LOAD | 150 kg | 330 lb | |
| CHARGE | 3.8 hrs | 5 hrs |
| HILLS | 30% | 35% |
| BREAKING | Regenerative Braking, adjustable 10-100% | |
| BINDINGS | Optional - Patented Embedded Nut Tech Help Binding Installation | |
| BUSHING | Rear Truck: Red 85A /Front Truck:
White 75A Optional - Riptide Lacroix Bushings Adapter Available |
|

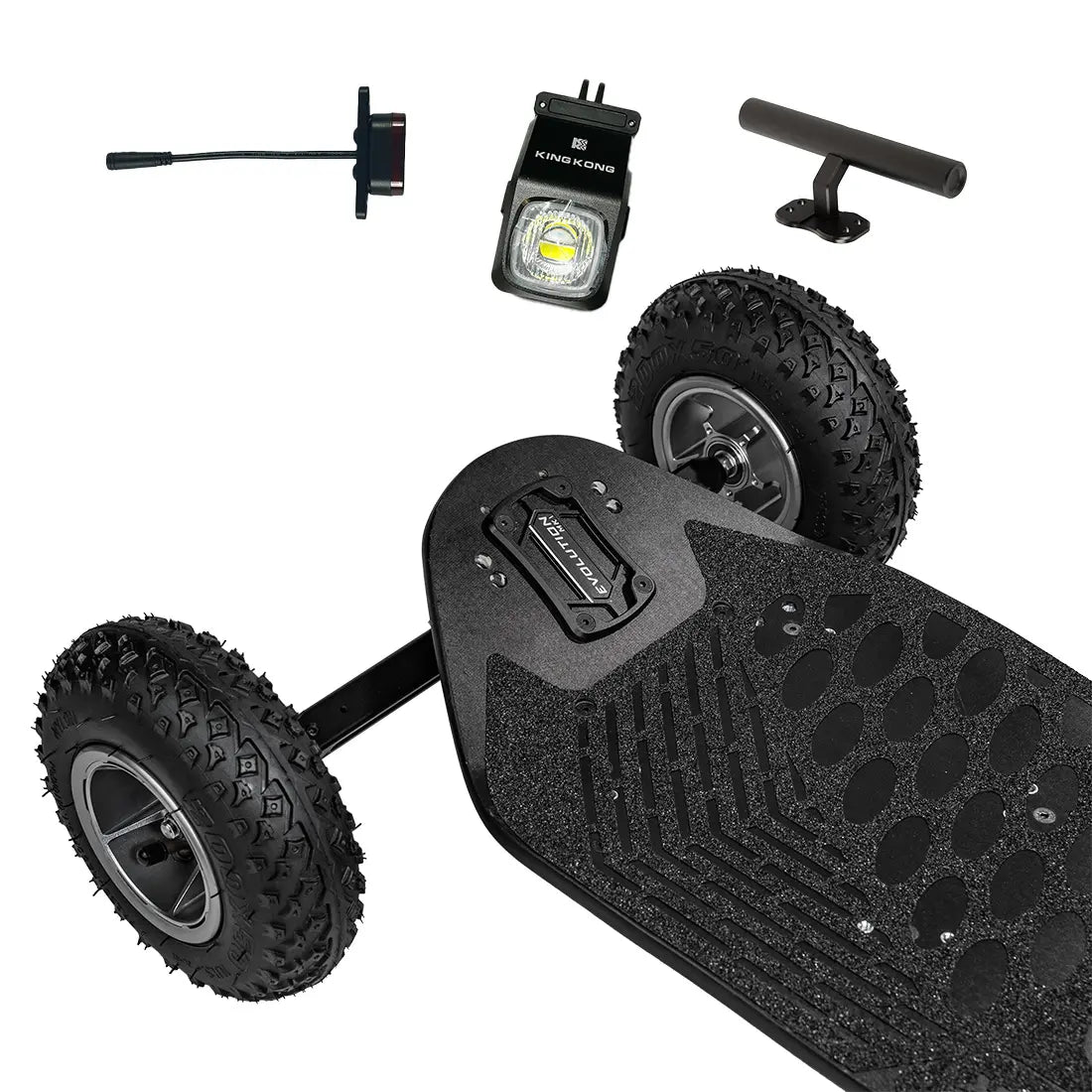

| Light Kit | Optional -
Integrated Tail Light; Optional - High Quality Third-Party Front Light |
|
| * Tested by a 154lbs/70kg rider at a constant speed of around 25 km/h | 15 mph, on flat terrain with gentle breeze at a temperature of 30℃/ 86°F. | ||
Starting now, EVO MK-1 shipments will be sent as a COMPLETE BOARD,
rather than separate components like the front truck assembly, rear truck
assembly, and Deck with Battery Kit.
EVO MK-1 Pro:
EVO MK-1 Pro Complete Board;
LINNPOWER x Hobbywing Remote;
Spare Bushing;
H3 Hex Key;
H4 Hex Key;
3/8Inch Combination Wrench;
T Tool;
4A Charger;
Remote Manual;
Quick Start Guide;
EVO MK-1 Lite:
EVO MK-1 Lite Complete Board;
LINNPOWER x Hobbywing Remote;
Spare Bushing;
H3 Hex Key;
H4 Hex Key;
3/8Inch Combination Wrench;
T Tool;
4A Charger;
Remote Manual;
Quick Start Guide;
