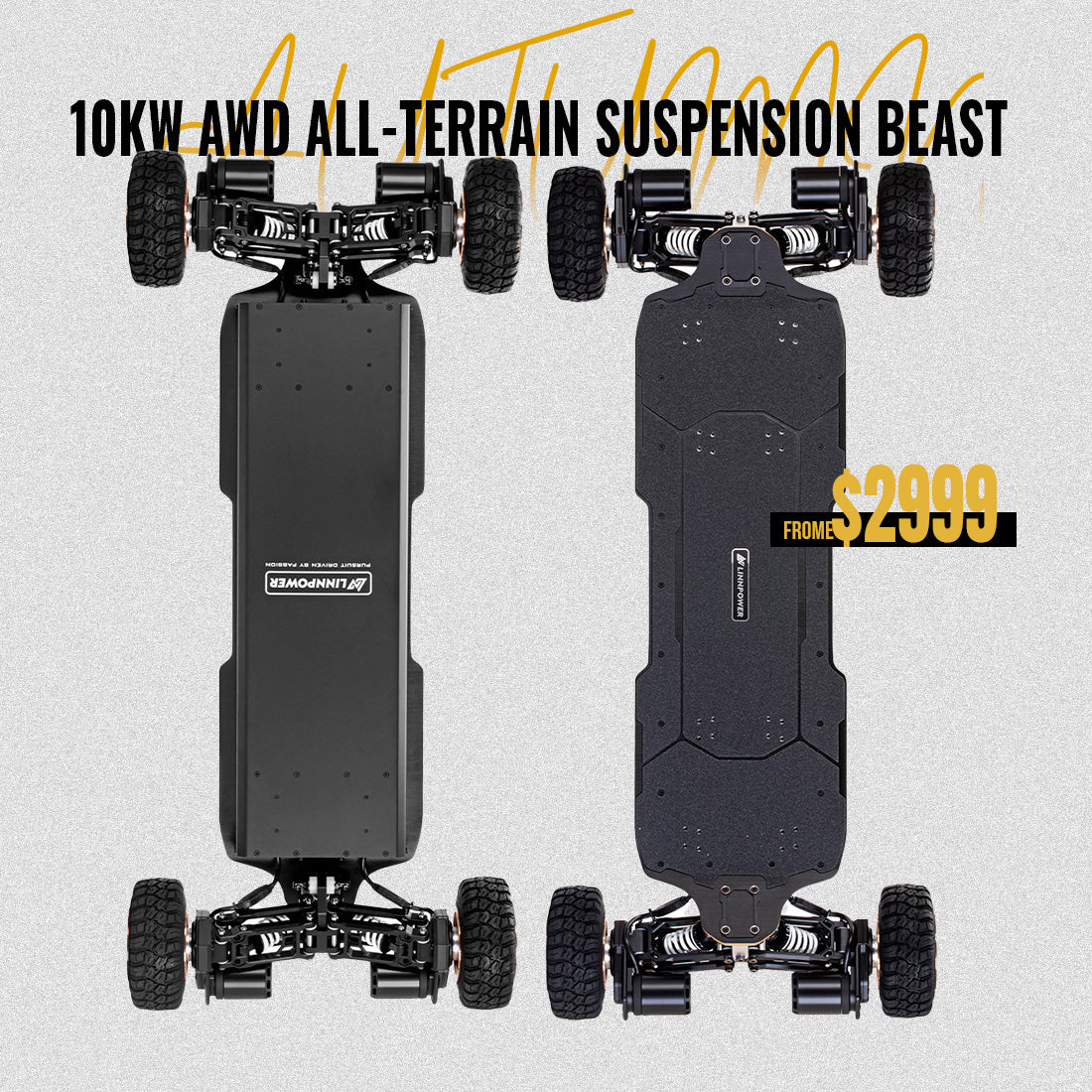

OVERLAND
18S high-voltage platform.
Built for riders who expect more than standard production boards.
NOTICE FOR BEGINNERS
OVERLAND is designed for experienced riders who know what they need. Due to its size, weight, and power, it is not recommended as a first electric skateboard.
Need help choosing?
RaceAxis MT™ is optimized for high-speed performance and precise carving, while RaceAxis IS™ is designed for greater comfort and control over rough roads, uneven terrain, and light off-road conditions.
- Top Speed: 2WD: Up to 85 kmh; AWD: Up to 65kmh;
- Range: 2WD: Up to 145km; AWD: Up to 90km;
- ESC: 2WD: 18S 160A; AWD: 14S 90A *2;
- Motor: 2WD: 7087*2 12000W in total; AWD: 6485*4 10000W in total;
- Hills: 2WD: 60%; AWD: 70%;
- Trucks: RaceAxis MT™ MULTI-LINK Suspension Truck & RaceAxis IS™ INDEPENDENT Suspension Truck;
OVERLAND 2WD Package Includes:
Box 1 of 2 (Truck Kit):
- OVERLAND Front Truck Kit
- OVERLAND Rear Truck Kit
Box 2 of 2 (Main Body):
- OVERLAND Deck (with Integrated Battery & ESC)
- LINNPOWER x JECNN Remote
- 75.6V 7.5A Charger
Tool Kit & Others:
- Remote Manual
- T Tool
- 16mm CNC Wrench
- Hex Key Set (H6, H5, H4, H3, H2.5)
OVERLAND 4WD Package Includes:
Box 1 of 2 (Truck Kit):
- OVERLAND Front Truck Kit
- OVERLAND Rear Truck Kit
Box 2 of 2 (Main Body & Accessories):
- OVERLAND Deck (with Integrated Battery & ESC)
- LINNPOWER x JECNN Remote
- 58.8V 10A Charger
Tool Kit & Others:
- Remote Manual
- Tool
- 16mm CNC Wrench
- Hex Key Set (H6, H5, H4, H3, H2.5)
Shipping
OVERLAND RaceAxis MT™ Assembly Guide
Having trouble loading the video? Watch it on YouTube →
LINNPOWER OVERLAND | The All-Terrain Cruiser
Designed for riders who value endurance, stability, and a more spacious, planted stance across varied terrain.
A heavy-duty cruiser built for real terrain, while maintaining stability and control on smooth roads. The multi-link architecture separates steering from suspension movement, allowing each system to perform independently.
- Seamless Transitions: Move from asphalt to gravel without changing your riding style. The RaceAxis MT™ system adapts to terrain, not just impacts.
- True Long-Range Capability: Up to 145 km (90 miles) in 2WD configuration — built for distance, not short sessions.
THE NUMBERS (REAL-WORLD SPECS)
| Configurations | 2WD (Efficiency) | 4WD (Max Torque) |
| Range | Up to 145 km (90 miles) / 90 km (55 miles) |
| Battery (Samsung 50S) | 18S9P 2916Wh / 14S9P 2268Wh |
| Top Speed | 85 km/h (52 mph) / 65 km/h (40 mph) |
| Peak Power | 12000W (Dual 7087) / 10000W (Quad 6485) |
RaceAxis MT™ | Multi-Link Suspension System
A suspension system designed to separate impact absorption from steering geometry.
- Motocross DNA: Our multi-link architecture decouples steering from impact. The shocks handle vertical travel while the trucks maintain a laser-straight line.
- Independent Functions: Suspension handles vertical movement while steering geometry remains unaffected.
- Stable at Speed: When the suspension compresses, the truck geometry angles increase linearly. Thanks to the RaceAxis MT system, the board maintains high stability and predictable handling at high speeds.
- Steering-Only Bushings: Bushings are dedicated to steering input, not rider load, resulting in smoother carving response.
- Motorsport-Grade Hardware: 7075-T651 CNC-machined aluminum trucks with forged chromoly steel axles for durability under load.
- Note: Passive geometry change (33°–46° front / 13°–25° rear) occurs under full suspension compression.
RaceAxis IS™ | Independent Suspension System
A four-wheel independent suspension architecture engineered to absorb road impacts while maintaining precise steering response. Each wheel moves independently, helping isolate the deck from rough surfaces without sacrificing carving control or high-speed stability.
- Decoupled Bushing Technology: Bushings control steering resistance rather than rider load, eliminating sluggish response at low speeds while maintaining stability at speed.
- 5-Axis CNC Suspension Arms: Precision-machined high-performance aluminum arms with a durable anodized finish for long-term wear resistance.
- 4-Wheel Isolation: Independent wheel movement reduces cross-wheel interference over rough pavement, keeping the deck more stable and composed.
- Bearing-Driven Pivots: Sealed bearings at every pivot provide smooth suspension movement with minimal friction.
- Aftermarket Tuning Ready: Standard cylindrical bushings allow suspension tuning with aftermarket options. Stock setup: 95A
DRIVETRAIN: V5.1 MT GEAR DRIVE
The V5.1 system is designed for significantly higher torque loads compared to the previous generation.
- 4-Gear Architecture: Increased engagement surface improves load distribution under high torque.
- Hardened Carbide Steel Gears: Built for long-term wear resistance in demanding environments.
- Sealed Design: Multi-layer sealing helps protect against dust, mud, and debris.
DECK & COMFORT
A hybrid maple, bamboo, and composite layup creates a platform that stays stiff under load while maintaining controlled rebound.
- Mellow U-Concave: Secure foot positioning without reducing comfort over long rides.
- Vibration Dampening Grip: Foam grip layer reduces high-frequency vibration.
- Binding-Ready Structure: Integrated mounting system for binding installation.
ENERGY SYSTEM
The OVERLAND uses a high-capacity battery platform (up to 2916Wh) designed for extended range riding.
The pack is fully sealed and potted to improve resistance against water, dust, and vibration in off-road environments.
TECHNICAL SPECS
- Wheelbase: 1125mm (44.3”) for stability at speed
- Max Load: 200 kg (440 lbs)
- Chassis Size: 1350 × 560 × 260 mm
Built for real terrain. Designed for distance. Ready when the road ends.
Master Every Surface.
Designed for riders who value endurance, stability, and a more spacious, planted stance across varied terrain. With a rigid chassis, RaceAxis MT™ multi-link suspension, RaceAxis IS™ independent suspension, and an 18S 2,916Wh power platform, OVERLAND is engineered for stable, high-speed cruising—from smooth asphalt to rugged trails.
MX-Inspired Suspension | V5.1 High-Torque Drive | Up to 145 km Range | Up to 85 km/h
Built for real terrain. Ready when the road ends.
The OVERLAND.
Built for Distance. Engineered for Adventure.
Built to Conquer Every Terrain.
A high-voltage all-terrain platform engineered with versatile suspension options, exceptional long-range capability, and rock-solid high-speed stability—delivering confident handling and precise control across pavement, gravel, rugged trails, and beyond.
Some boards are built for tricks.
The OVERLAND is built for distance.
Like a Toyota Land Cruiser, the OVERLAND was not created to chase numbers alone — it was engineered to go further, handle more, and remain dependable when conditions become unpredictable. Designed around endurance, stability, and long-range capability, it delivers a level of confidence and control rarely found in standard production boards.
The First Electric Skateboard
with Multi-Link Suspension.
The Overland absorbs road vibration with a multi-link independent suspension architecture borrowed from motorsport.
at Rest
THE DETAILS
at Rest
THE DETAILS
Drag to compare · Click to enlarge
Linnpower Independent Suspension:
Agility Meets High-Speed Precision.
Inheriting RaceAxis DNA, this architecture decouples rider weight from bushing tension, delivering ultra-linear compression, supreme low-speed agility, and uncompromised high-speed stability.
100% Billet / Forged
Suspension
Axle & Kingpin
Drag to compare · Click to enlarge
The OVERLAND battery platform represents the next generation of high-voltage electric skateboard energy systems. Featuring an 18S architecture and up to 2916Wh capacity, it delivers extended range, consistent power delivery, and reliable performance for demanding long-distance rides.
Two Motor Configurations.
Built for Sustained Power Delivery.
Developed for Linnpower’s high-performance platforms, these motors have been proven on THE ONE and further optimized for the OVERLAND’s higher weight, larger battery system, and all-terrain demands. Delivering high torque output, thermal stability, and consistent power under continuous load, they provide the strength and control needed for long-distance rides across pavement, gravel, and changing terrain.
Powertrain Technology
Custom-Built FOC ESC
18S 160A × 1 & 14S 90A × 2
High-Voltage Architecture
The 18S battery configuration operates at elevated system voltage, reducing resistive losses and improving efficiency during sustained cruising.
Field-Oriented Control
A true FOC control system enables smooth motor operation and precise torque delivery across the full RPM range, from launch to high-speed riding.
Long-Range Optimized
Every watt is optimized for distance. The 2WD system is tuned for efficiency to maximize real-world range while maintaining consistent usable power output.
Rider-Tuned Performance
Real-world validate. The 2WD OVERLAND consistently outperforms with higher advertised specs when it comes to usable, sustained power.
Independent Dual FOC
Two independent 14S 90A FOC controllers drive the front and rear motors separately, enabling torque vectoring and real-time traction management across varying terrain conditions.
High Torque Output
Combined output from four motors delivers strong and consistent torque, providing reliable climbing capability and traction in loose or technical terrain.
Precision Traction Control
Each controller independently regulates its motor output, allowing real-time traction correction to reduce wheel slip and optimize power delivery where grip is available.
Thermal-Distributed Design
A dual-controller architecture distributes heat generation across two units, improving thermal stability and reducing the risk of performance limitation during sustained high-load riding.
Real-world performance guarantee. Specifications define potential. Real-world performance defines experience. OVERLAND translates system capability into consistent torque delivery and usable power across real terrain conditions.
Patented Binding-Ready Deck.
Built on Proven DNA.
Built on the proven EVO MK-1 platform and refined for OVERLAND’s mission, this extended deck architecture delivers maximum stability, precise control, and long-distance confidence. Its extended 104 × 31 cm platform provides a more planted stance for high-speed riding, while the patented binding-ready structure enables clean, drill-free installation without compromising deck strength or structural integrity.
V5.1 Gearbox.
470% Stronger.
The all-new V5.1 is a ground-up engineering project designed to match the OVERLAND high-torque delivery.
Proven Foundation: While the V5.1 establishes a new level of structural strength, our V4.3 AT/MT Gearbox remains a proven platform with an extensive real-world track record. Known for its durability and long-term reliability, the V4.3 AT/MT continues to power thousands of high-mileage boards across demanding riding conditions worldwide.
NEXT Super Wide XL Quick-Release Hub
The OVERLAND is paired with LINNPOWER NEXT XL 112×86mm quick-release rims.
Tested compatibility includes Linnpower 190×70, 200*75 tires, as well as 200×70 and 200×80 options from other brands — offering greater flexibility for different riding preferences and terrain setups.
LINNPOWER Customized Remote
The remote is your primary connection to the board — it should feel as refined as the ride itself. Our custom remote is engineered for greater control precision, improved ergonomics, and enhanced durability compared to the standard version.
Order Now
Ready to Ride Further?
Float over rough roads. Conquer changing terrain. Explore without limits. The ultimate grand touring board engineered for confidence, comfort, and control on every adventure.
Full Specifications
Technical Specs
Every number. Every component. Everything you need to know.
| OVERLAND | MT 2WD | MT 4WD | IS 2WD | IS 4WD |
|---|---|---|---|---|
| Performance | ||||
| RANGE | 145 km / 90 mi | 90 km / 55 mi | 145 km / 90 mi | 90 km / 55 mi |
| TOP SPEED | 85 km/h | 52.8 mph | 65 km/h | 40.3 mph | 75 km/h | 46.6 mph | 57 km/h | 35.4 mph |
| HILLS | 60% | 70% | 60% | 70% |
| MAX LOAD | 200 kg | 440 lbs | 200 kg | 440 lbs | 200 kg | 440 lbs | 200 kg | 440 lbs |
| Drivetrain | ||||
| MOTOR | Custom LINNPOWER 7087 × 2 12,000 W |
Custom LINNPOWER 6485 × 4 10,000 W |
Custom LINNPOWER 7087 × 2 12,000 W |
Custom LINNPOWER 6485 × 4 10,000 W |
| ESC | Linnpower Customized 18S | 160A bus / 240A phase | Linnpower Customized 14S × 2 | 90A bus / 150A phase | Linnpower Customized 18S | 160A bus / 240A phase | Linnpower Customized 14S × 2 | 90A bus / 150A phase |
| GEAR RATIO | 5.1 | 56 : 11 | 5.1 | 56 : 11 | 5.1 | 56 : 11 | 5.1 | 56 : 11 |
| Battery & Charging | ||||
| BATTERY | 18S9P Samsung 50S 2,916 Wh |
14S9P Samsung 50S 2,268 Wh |
18S9P Samsung 50S 2,916 Wh |
14S9P Samsung 50S 2,268 Wh |
| BMS | Custom-designed with TOLL-package MOSFETs — smaller footprint, higher power handling, lower heat generation | Custom-designed with TOLL-package MOSFETs — smaller footprint, higher power handling, lower heat generation | Custom-designed with TOLL-package MOSFETs — smaller footprint, higher power handling, lower heat generation | Custom-designed with TOLL-package MOSFETs — smaller footprint, higher power handling, lower heat generation |
| BATTERY PACK | Modular, fully waterproof potting | Modular, fully waterproof potting | Modular, fully waterproof potting | Modular, fully waterproof potting |
| CHARGE TIME | 6 h / 7.5A (Stock) 3 h / 15A (Optional) |
4.5 h / 10A (Stock Fast) 2.3 h / 20A (Optional) |
6 h / 7.5A (Stock) 3 h / 15A (Optional) |
4.5 h / 10A (Stock Fast) 2.3 h / 20A (Optional) |
| BRAKING | Regenerative, adjustable 10 – 100% | Regenerative, adjustable 10 – 100% | Regenerative, adjustable 10 – 100% | Regenerative, adjustable 10 – 100% |
| Hardware & Build | ||||
| WHEELS | 220 × 89 mm | 9 in off-road tread | 220 × 89 mm | 9 in off-road tread | 200 × 75 mm | 8 in Wide off-road tread | 200 × 75 mm | 8 in Wide off-road tread |
| TRUCK OPTIONS | RaceAxis MT™ Multi-Link — Street & High-Speed Control | RaceAxis MT™ Multi-Link — Street & High-Speed Control | RaceAxis IS™ Independent — Off-Road & All-Terrain Comfort | RaceAxis IS™ Independent — Off-Road & All-Terrain Comfort |
| TRUCK MATERIAL | RaceAxis MT™: 7075-T651 5-axis CNC aluminum hangers, forged chromoly steel 12 mm axles & kingpins. | RaceAxis MT™: 7075-T651 5-axis CNC aluminum hangers, forged chromoly steel 12 mm axles & kingpins. | RaceAxis IS™: High-performance forged & 5-axis CNC aluminum swingarms (zero cast components), durable hard anodized finish, forged chromoly steel axles. | RaceAxis IS™: High-performance forged & 5-axis CNC aluminum swingarms (zero cast components), durable hard anodized finish, forged chromoly steel axles. |
| BEARINGS | 6001 bearings | 6001 bearings | 6001 bearings | 6001 bearings |
| BUSHING | 95A (Customizable / 3rd-Party Compatible) | 95A (Customizable / 3rd-Party Compatible) | 95A (Customizable / 3rd-Party Compatible) | 95A (Customizable / 3rd-Party Compatible) |
| REMOTE | LP×JECNN — CNC aluminum alloy frame, CNC scroll wheel, double-bearing fixation | LP×JECNN — CNC aluminum alloy frame, CNC scroll wheel, double-bearing fixation | LP×JECNN — CNC aluminum alloy frame, CNC scroll wheel, double-bearing fixation | LP×JECNN — CNC aluminum alloy frame, CNC scroll wheel, double-bearing fixation |
| Deck & Dimensions | ||||
| BOARD SIZE | 1350 × 560 × 260 mm | 53.1 × 22 × 10.2 in | 1350 × 560 × 260 mm | 53.1 × 22 × 10.2 in | 1280 × 560 × 240 mm | 50.4 × 22 × 9.4 in | 1280 × 560 × 240 mm | 50.4 × 22 × 9.4 in |
| DECK SIZE | 104.5 × 31 cm | 41.1 × 12.2 in | 104.5 × 31 cm | 41.1 × 12.2 in | 104.5 × 31 cm | 41.1 × 12.2 in | 104.5 × 31 cm | 41.1 × 12.2 in |
| WHEELBASE | 1125 mm | 44.29 in | 1125 mm | 44.29 in | 1060 mm | 41.73 in | 1060 mm | 41.73 in |
| DECK MATERIAL | Snowboard manufacturing process — reinforced with wear-resistant layers & custom composites | Snowboard manufacturing process — reinforced with wear-resistant layers & custom composites | Snowboard manufacturing process — reinforced with wear-resistant layers & custom composites | Snowboard manufacturing process — reinforced with wear-resistant layers & custom composites |
| GRIP TAPE | OS780 high-quality padded grip tape | OS780 high-quality padded grip tape | OS780 high-quality padded grip tape | OS780 high-quality padded grip tape |
| Extras | ||||
| WEIGHT | 40 kg | 88 lbs | 40.5 kg | 90.3 lbs | 40 kg | 88 lbs | 40.5 kg | 90.3 lbs |
| WATERPROOF | IPX7 | IPX7 | IPX7 | IPX7 |
| BINDING | Optional — patented embedded nut tech for installation | Optional — patented embedded nut tech for installation | Optional — patented embedded nut tech for installation | Optional — patented embedded nut tech for installation |
* Tested by a 154 lbs / 70 kg rider at a constant speed of around 25 km/h | 15 mph, on flat terrain with a gentle breeze at 30°C / 86°F.
