Charger
Voltage:58.8V 6A GaN Charger
Power plug type:US
Menge:
Versand
Kostenloser weltweiter Versand - zzgl. Zoll- und Abgabensteuern.
Fully charged indicator
| Model | Voltage | Max Supported Charger | Stock Charger |
|---|---|---|---|
| Viper | 12S 50.4V | 50.4V 4.5A | 50.4V 4.5A |
| MINI 5 | 12S 50.4V | 50.4V 4.5A | 50.4V 1.5A |
| Zephyr | 14S 58.8V |
Base: 58.8V 6A Pro: 58.8V 10A |
58.8V 2A |
| THE ONE | 18S 75.6V |
Select: 75.6V 20A Prime: 75.6V 30A |
75.6V 9A |
| OX | 16S 67.2V |
OX: 67.2V 10A OX ER: 67.2V 10A |
67.2V 8A |
| EVO MK-1 | 14S 58.8V | 58.8V 10A | 58.8V 4A |
Linnpower Electric Skateboard Official Chargers — Multiple Volt/Amp
Fast, safe and reliable chargers for Linnpower boards and other compatible e-skate batteries. Choose from GaN 6A / 10A fast chargers to 2A–4.5A chargers for different board ranges and charging needs.
Why choose Linnpower chargers
- Official LINNPOWER chargers keep your warranty protected.
- Fast & efficient: 6A GaN and 10A options for rapid recharge when you need it most.
- Multiple volt/amp variants: Support for 58.8V, 50.4V and 75.6V battery packs and a range of amperages to suit different boards and needs.
Key highlights

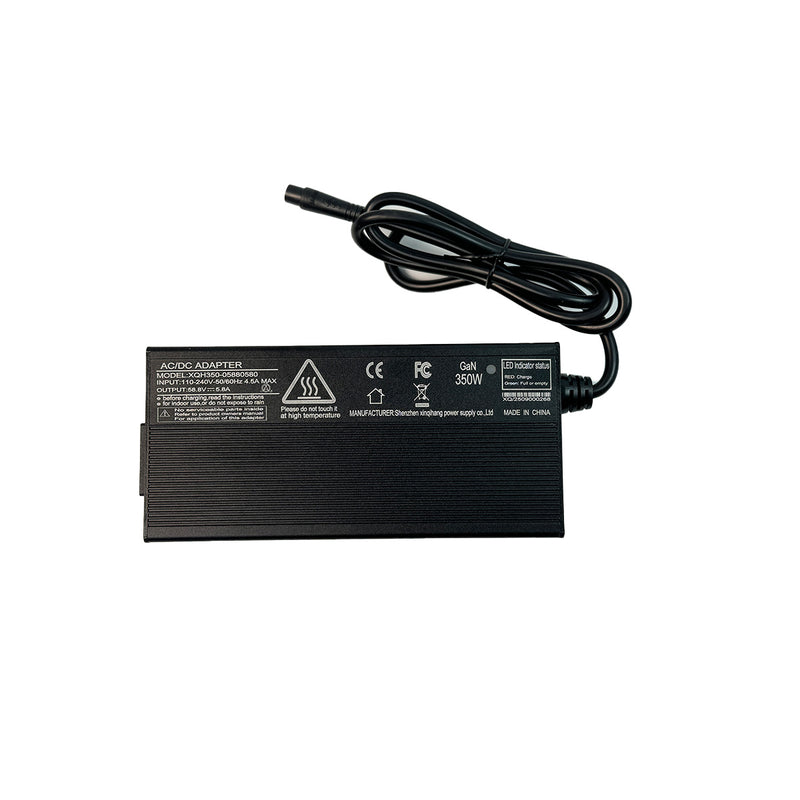

- GaN Charger (58.8V / 6A) — compact, efficient fast-charging solution. It’s normal for the charger to feel a bit warm during charging, but always charge on a stable, heat-resistant surface.

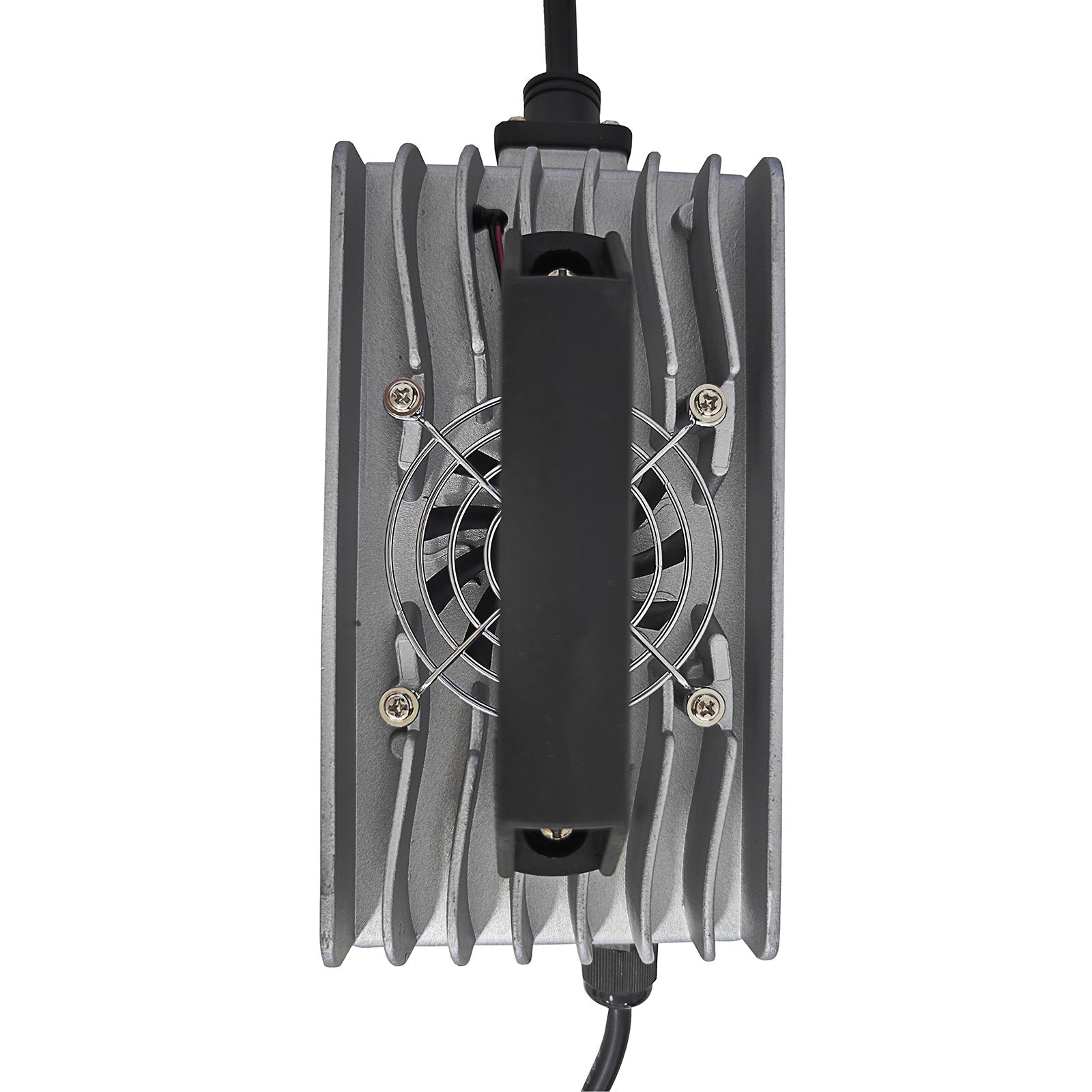

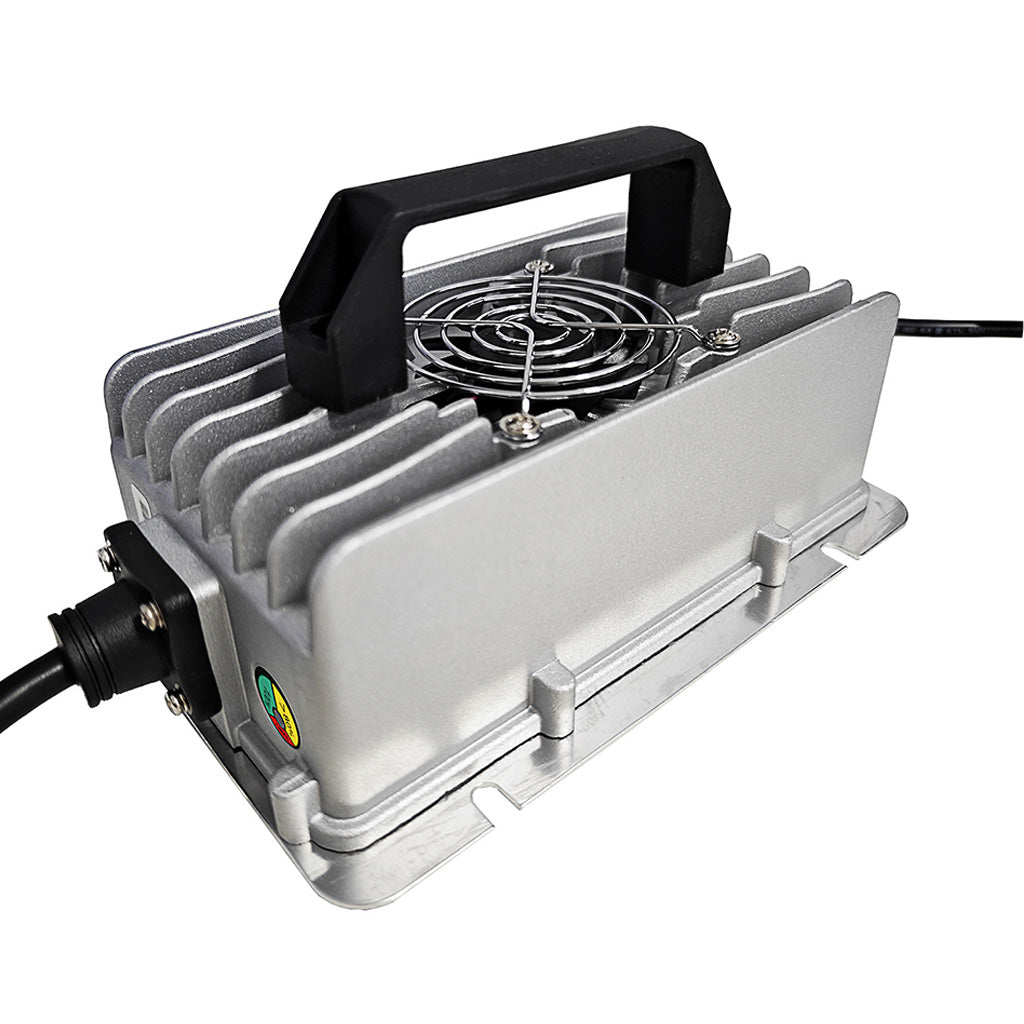

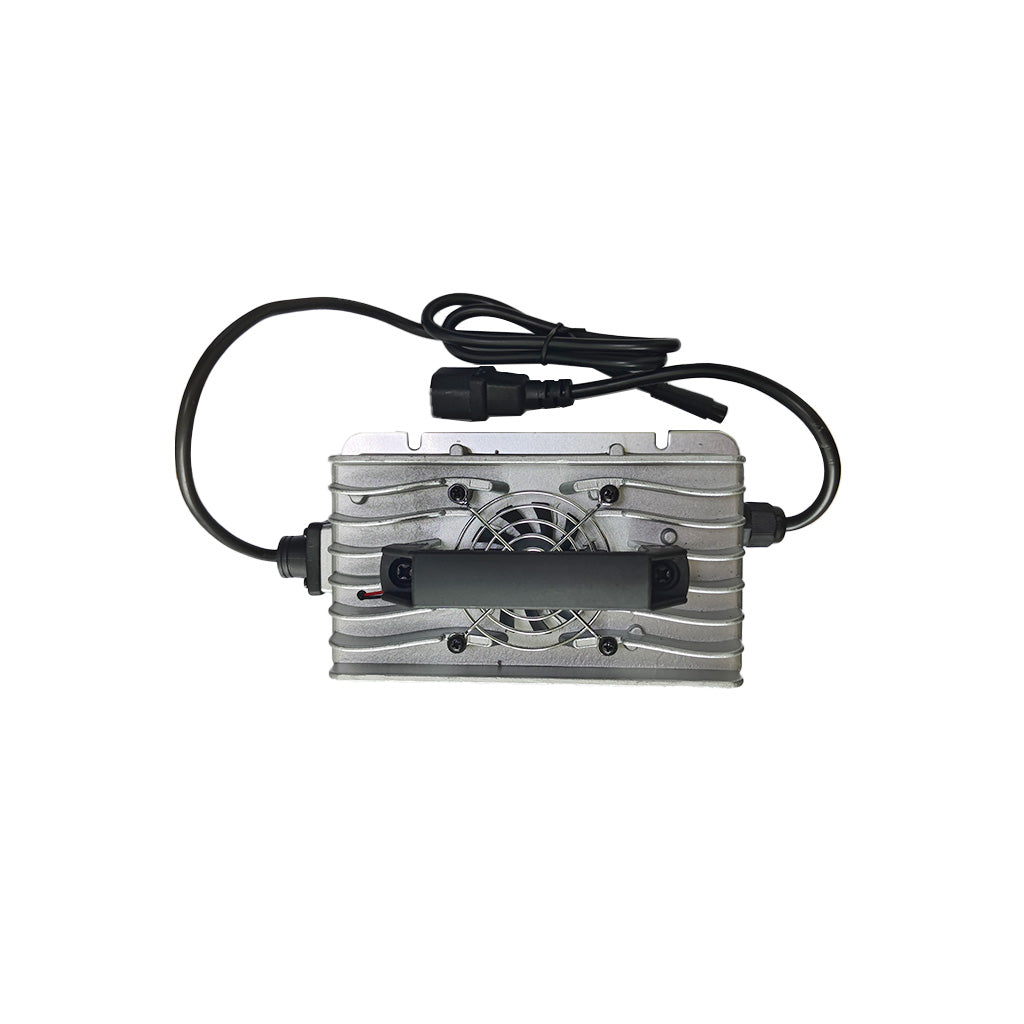

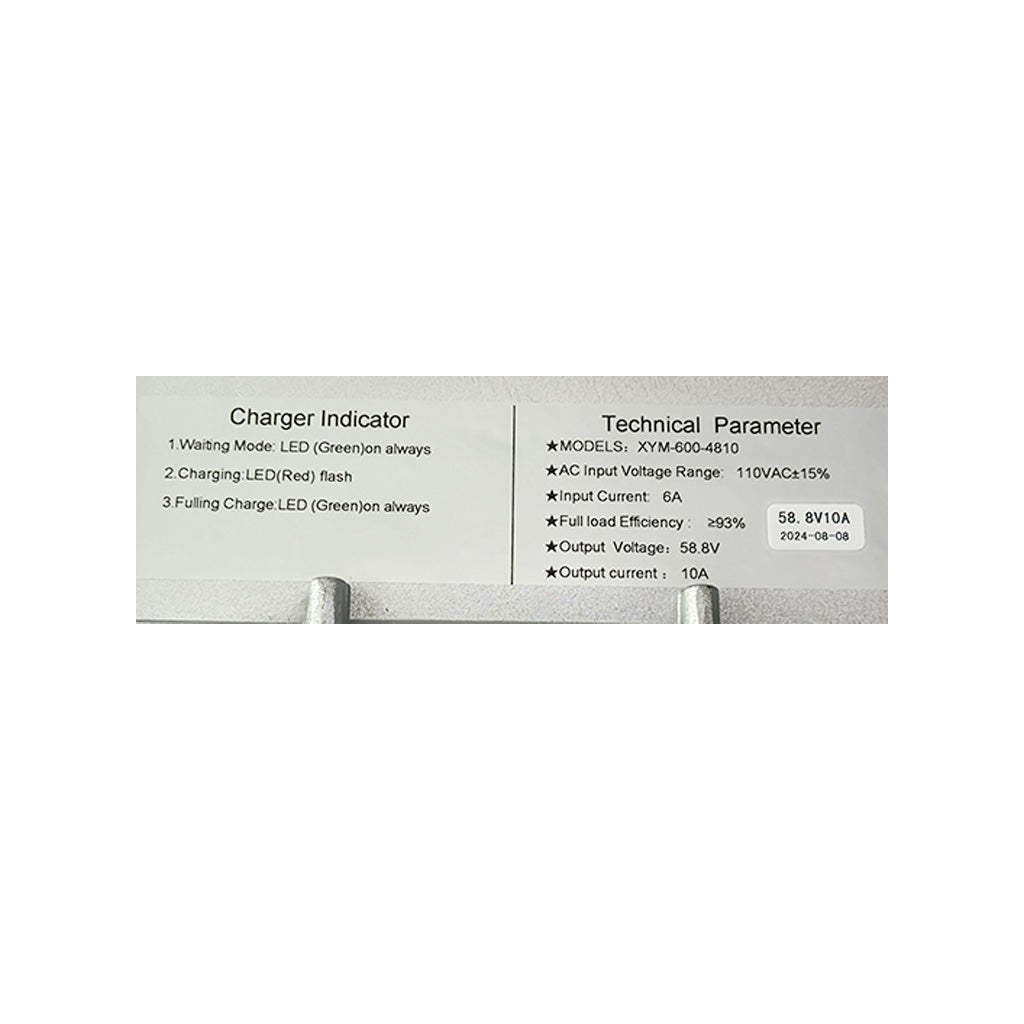

- 10A Fast Charger (58.8V / 10A) — fastest option in our lineup for quickest turnaround times. It’s slightly larger in size, but delivers outstanding heat dissipation.

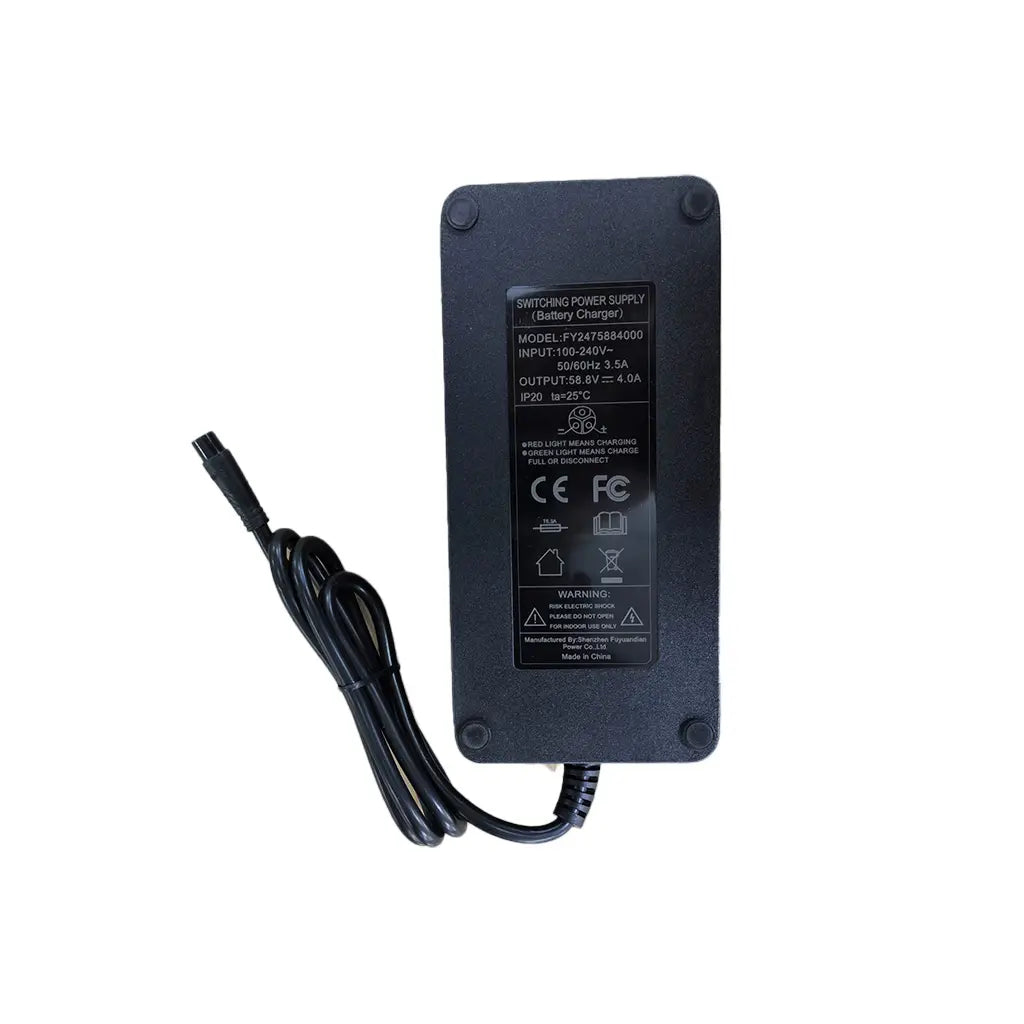

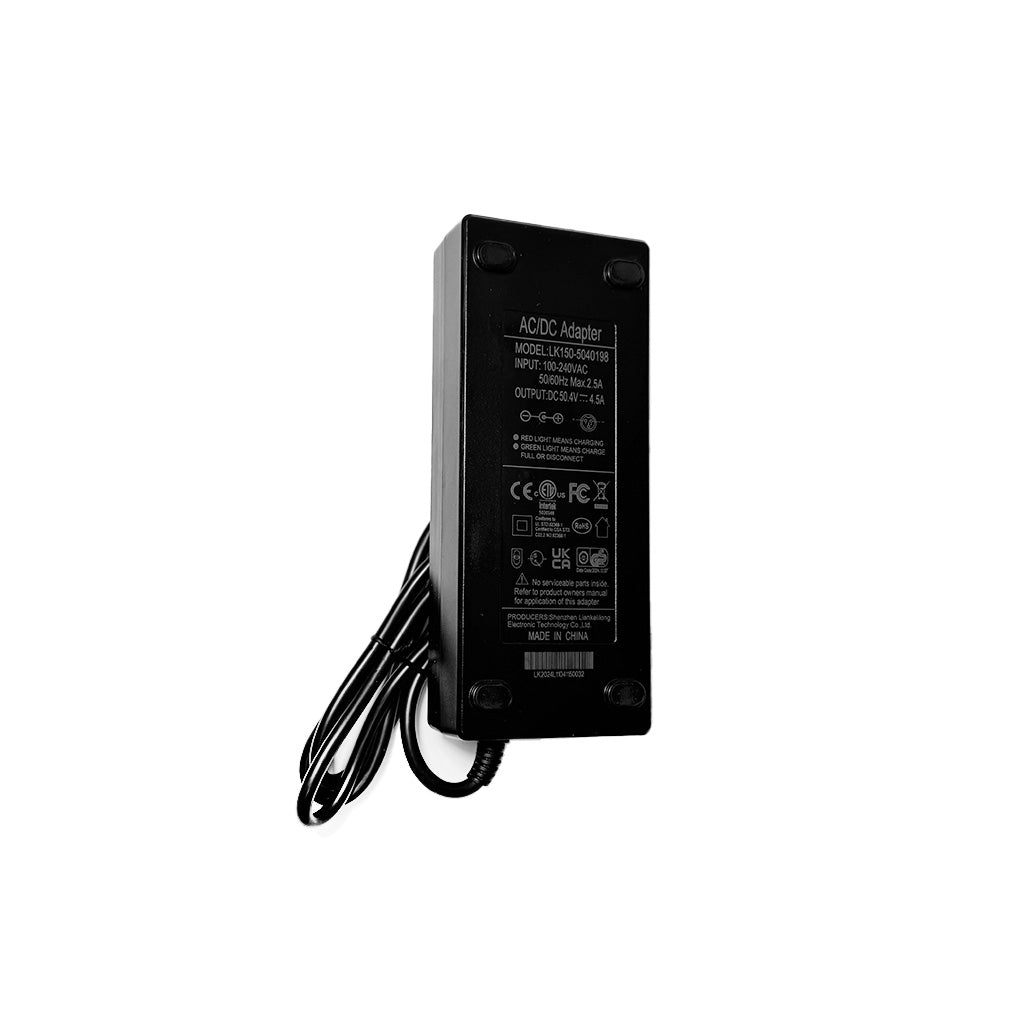

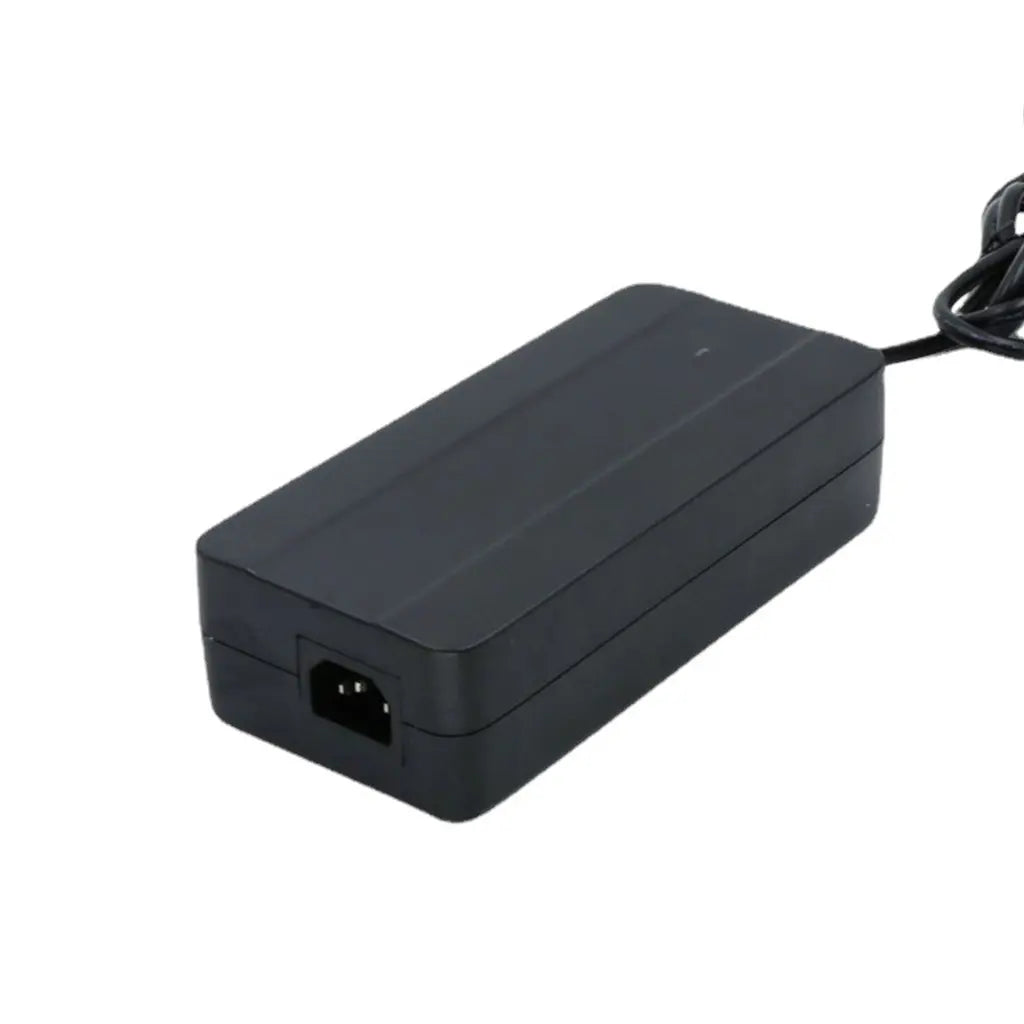

- Standard Chargers — common options include 58.8V 4A, 58.8V 2A, 50.4V 4.5A, 50.4V 1.5A and 75.6V 9A variants.
Typical use-cases
Choose a slow charger for best long-term battery health; choose a fast charger (10A / 6A GaN) when you need quick top-ups between rides or during commuting.
Compatibility & recommendations
For boards with large battery packs (e.g. higher-voltage race setups), choose the appropriate voltage and amperage. Example: a 10A 58.8V fast charger can bring EVO MK-1 Lite close to full in ~1.5 hours and EVO MK-1 Pro in ~2 hours (times vary by battery state & pack capacity).
Safety reminders
- Do not leave the charger unattended during charging.
- Do not touch the charger housing during high-power charging to avoid burns; allow fan + heatsink to cool the unit.
- Follow the short-circuit reset procedure (disconnect AC and wait ~20s) if charging fails after interruption.
Linnpower Board Charger Specs
| Model | Voltage | Max Supported Charger | Stock Charger |
|---|---|---|---|
| Viper | 12S 50.4V | 50.4V 4.5A | 50.4V 4.5A |
| MINI 5 | 12S 50.4V | 50.4V 4.5A | 50.4V 1.5A |
| Zephyr | 14S 58.8V | Base: 58.8V 6A Pro: 58.8V 10A |
58.8V 2A |
| THE ONE | 18S 75.6V | Select: 75.6V 20A Prime: 75.6V 30A |
75.6V 9A |
| OX | 16S 67.2V | OX: 67.2V 10A OX ER: 67.2V 10A |
67.2V 8A |
| EVO MK-1 | 14S 58.8V | 58.8V 10A | 58.8V 4A |
